Unisab III panel mounting kit
Unisab III panel mounting kit

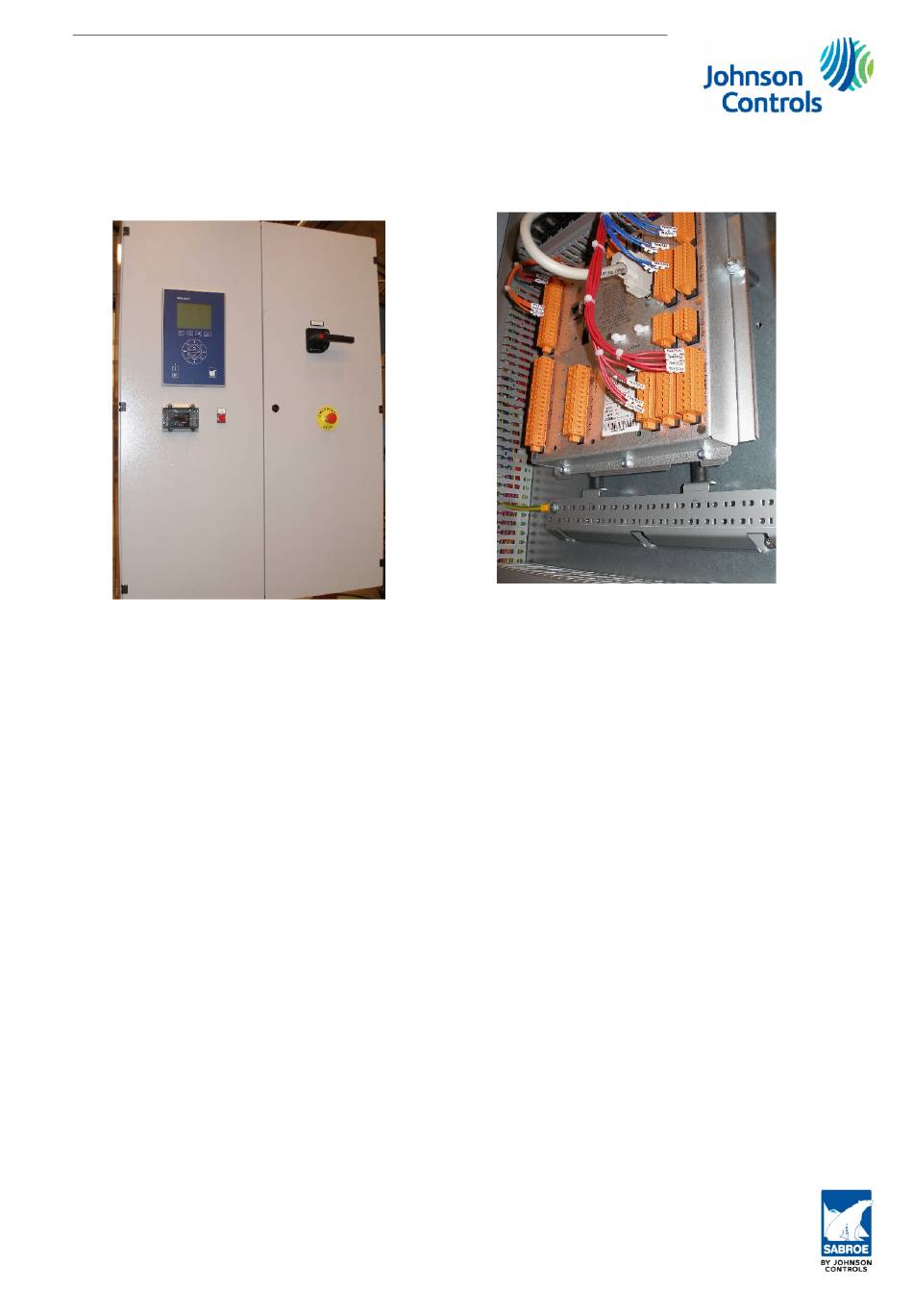

Fig. 1
•
Unisab III display mounted on a pan-
el door
•
Complete kit:
Johnson Controls part no.: 1571-115
Mounting instruction - Unisab III
006093 - en 2009.02.
Fig. 2
•
Unisab III controller mounted inside
the panel with vibration dampers on
the panel mounting plate.
1/6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls Unisab III
Summary of Contents for Johnson Controls Unisab III
- Page 1 Unisab III panel mounting kit Fig. 2 Fig. 1 • Unisab III controller mounted inside • Unisab III display mounted on a pan- the panel with vibration dampers on el door the panel mounting plate. • Complete kit: Johnson Controls part no.: 1571-115 Mounting instruction - Unisab III 006093 - en 2009.02.
-
Page 2: Parts Overview
Screws and washers for ground rail Fig. 5 • Jumper set for the controller. Fig. 4 • Unisab III display • Display cable (200 cm) for Unisab III is connected to the front. Mounting instruction - Unisab III 006093 - en 2009.02. - Page 3 Unisab III panel mounting kit Mounting the Unisab III controller frame and the ground rail to the panel mounting plate 253 mm 250 mm 126.5 mm Fig. 6 Distance between fixing points Mounting instruction - Unisab III 006093 - en 2009.02.
- Page 4 Unisab III panel mounting kit Cut-out and fixing points for mounting of Unisab III display in a panel door Fig. 7 Fig. 8 • Minimum 40 mm free space for removal of SD-card. Mounting instruction - Unisab III 006093 - en 2009.02.
- Page 5 Unisab III panel mounting kit Mounting of vibration dampers Fig. 10 • The upper part of the controller frame is connected to the panel mounting plate also using vibration dampers. Fig. 9 • Connect the ground rail with the con-...
- Page 6 Unisab III panel mounting kit Cable mounting on the ground rail Fig. 11 Fig. 12 • Ground wire connected to the ground • Cable screen must be connected to rail. the ground rail • Cable screen must be as short as pos- sible •...
