Programming
Display
Device Type
Device

Programming the AIM-200

Programming the AIM -200 involves two modes of operation:
Auto-Program, (password 231 -1332) and Program Edit
(password 231-3112). A third function, Display Status, allows the
programmer to review the entire AIM -200 program. Program Clear
(password 231-5678), allows the clearing of an existing program from
non-volatile memory.

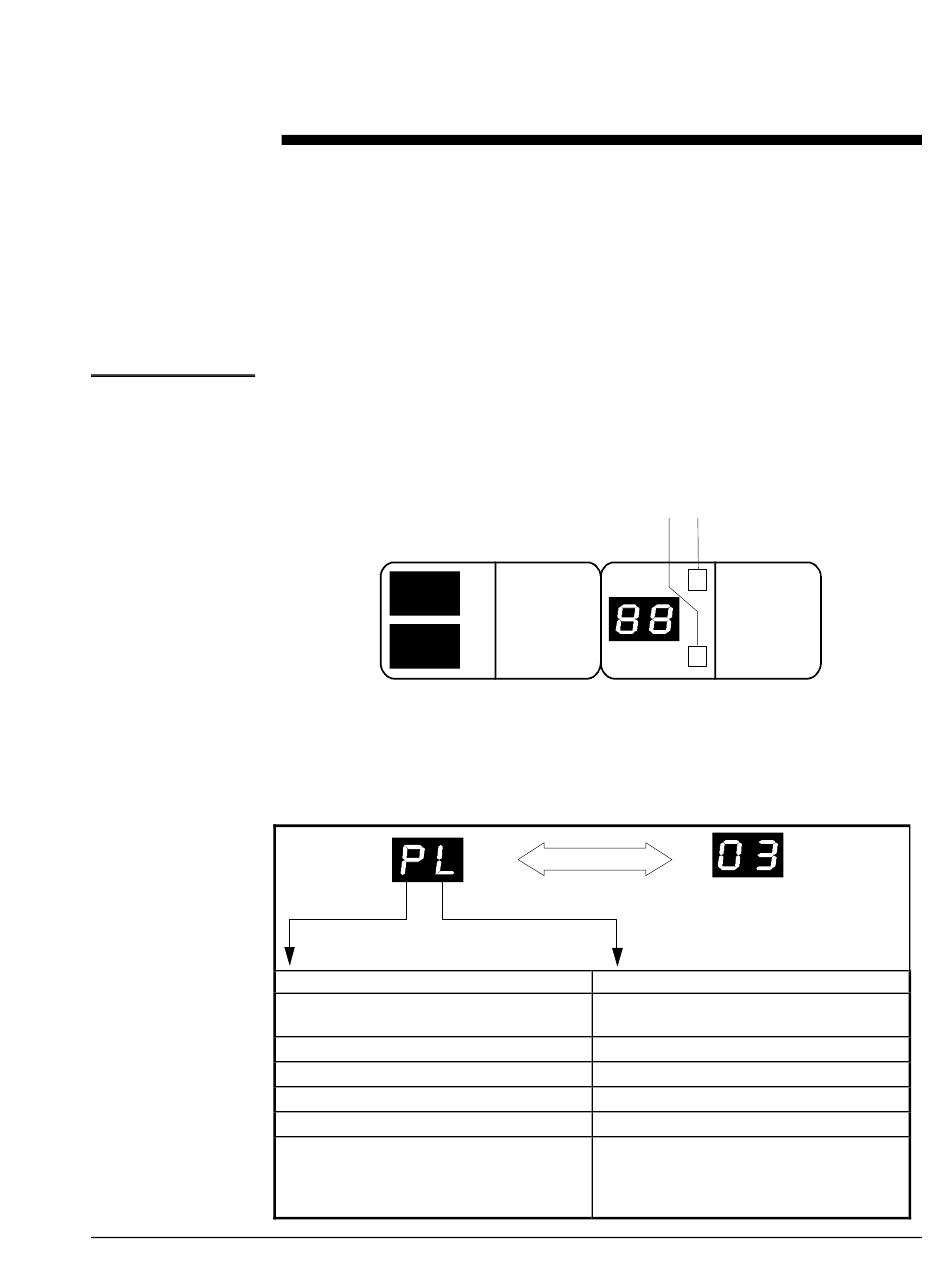

Green LEDs indicate whether the device is a detector or a module.
The device's type and address are alternately displayed on the 2
7-segment display.
Left Digit
P = Photo Detector
I = Ion Detector
H = Heat Detector
G = Monitor Module or Pull Station
C = Control Module
Addressable Intelligent Module—AIM -200 Addressable Intelligent Module
Figure 32: Device Type
Right Digit
Blank = Normal Sensitivity (for detectors), or
Indicating Circuit Selected (for M510CJs)
L = Low Sensitivity (detectors only)
H = High Sensitivity (detectors only)
d = Disabled
O = Form-C Selected (M510CJs)
E = No response from a device (the
AIM-200 is programmed for a device which
is in trouble or not physically installed on the
loop).
-digit
37
