Intelligent Detectors; Inserting The Aim-200 Cards - Johnson Controls AIM-200 Technical Manual

Intelligent
Detectors
Installation
Inserting the
AIM-200 Cards
34 Addressable Intelligent Module—AIM -200 Addressable Intelligent Module
The B501BJ base provides the connection between the AIM - 200
communications loop and 2551J, 1551J, and 5551J intelligent detectors.
1. Connect the communications loop to Terminal 1( -) and Terminal 2(+)
on the B501BJ.
2. If employing an RA400Z remote LED annunciator, connect the
RA400Z positive terminal to B501BJ Terminal 3 and the negative
Terminal to B501BJ terminal 1.
3. Before installing the appropriate intelligent detector head, set the
detector's address on the head with a small slotted screwdriver.
Mark this address on the base and on the head.

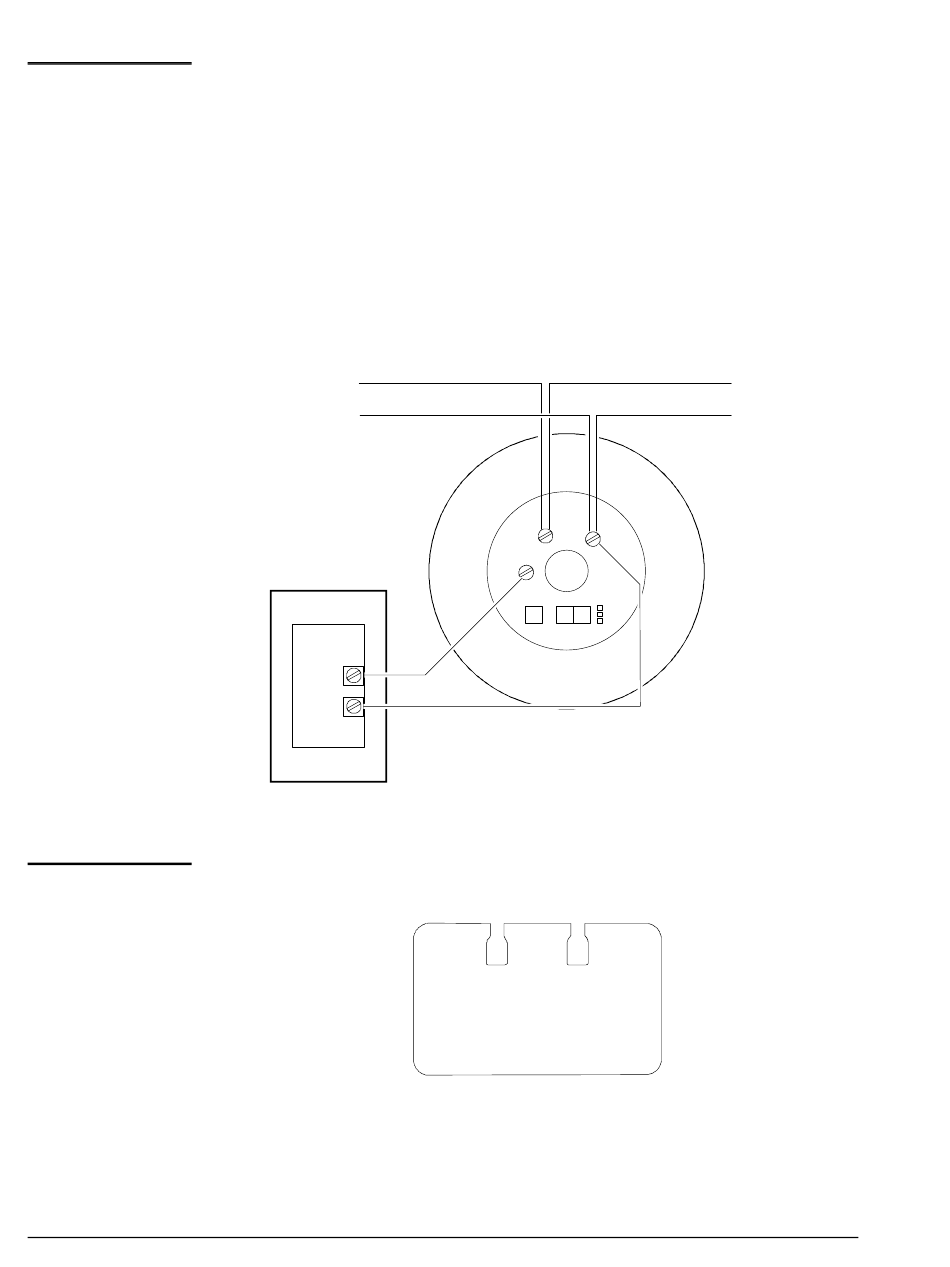

Figure 28: Wiring the B501BJ Detector Base
Seven AIM -200 cards are provided in a plastic pouch. Remove and
discard the cover card.
Figure 29: AIM-200 Cover Card
After the appropriate point information has been entered onto the cards,
they may be inserted into the module as shown in Figure 31.
