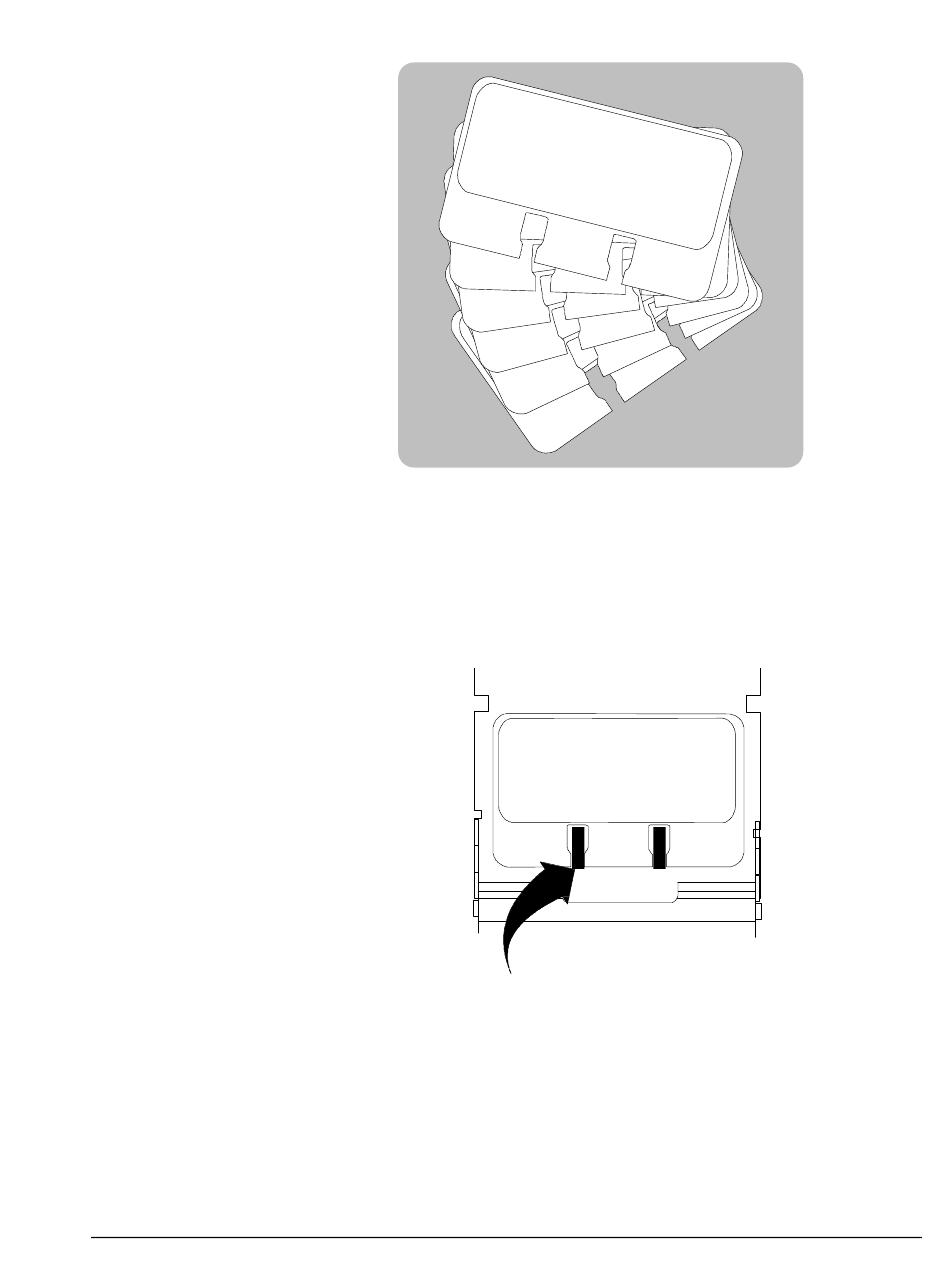

Figure 30: Organizing AIM-200 Cards for Placement
Organize the cards in sequence, with number "1" on top and number "6"
on the bottom. Carefully press - fit the cards over the holding clips on the
module and close the front door.
Figure 31: Inserting AIM-200 Cards
Addressable Intelligent Module—AIM -200 Addressable Intelligent Module
35
