Chapter 1 BDCOM S2952P Introduction

The section describes the characteristics and parameters of BDCOM S2952P and
gives an overview of BDCOM S2952P.

1.1 Appearance Description for Standard Configuration

The built-in ports of BDCOM S2952P are: 48 gigabit-Ethernet RJ45 ports, 4 10GE
Ethernet SFP+ ports, 1 Console port. See table 1-1.
Port
Gigabit-Ethernet port
10GE Ethernet port
Console port
Besides, BDCOM S2952P has a grounding column, an AC power socket, a power on-off
at its back and a DC power socket.

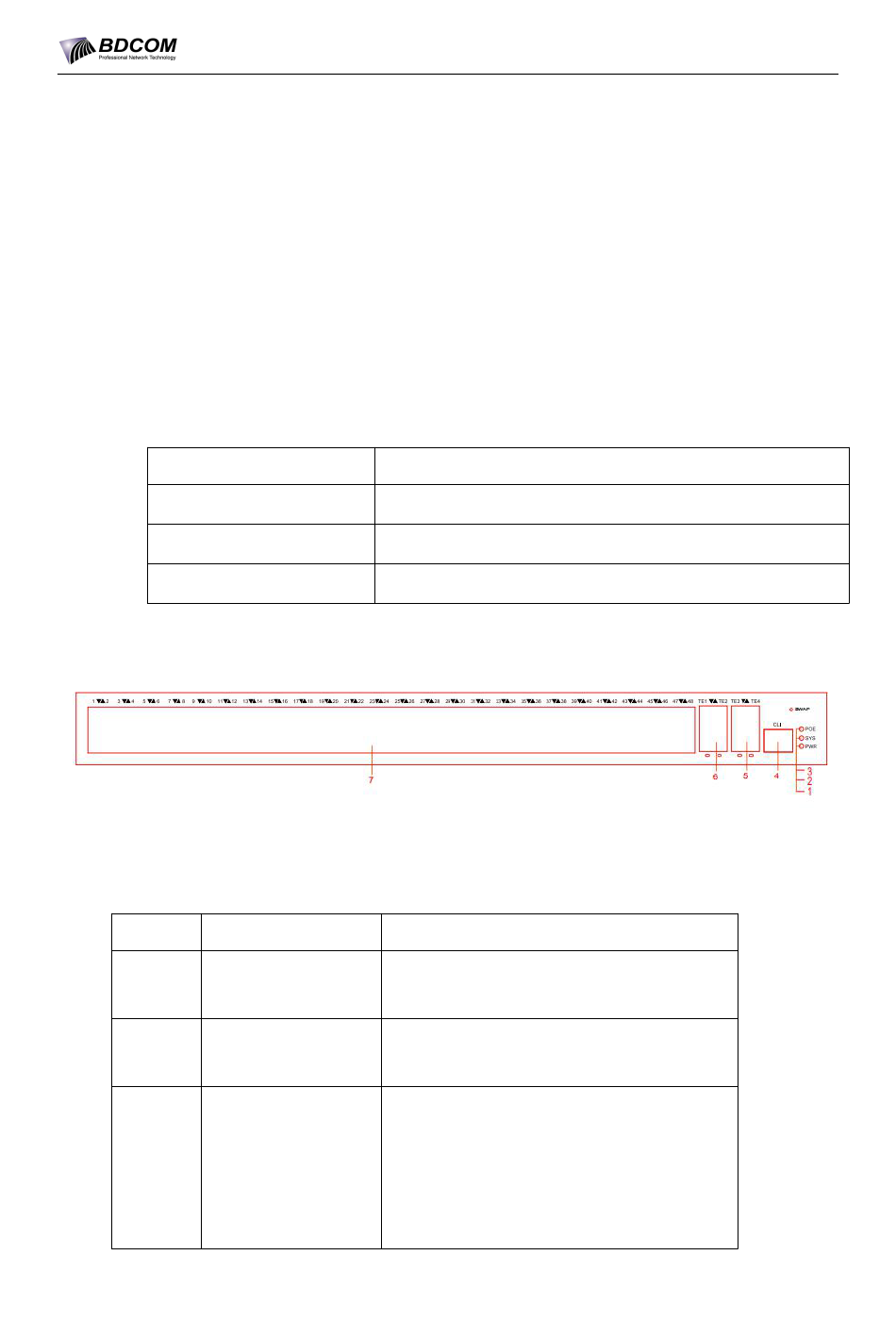

Figure 1- 1 Front template of the BDCOM S2952P switch
Table 1- 2 Parts at the front template of the BDCOM S2952P switch
No.
1 Power indicator
2 System indicator
3 POE LED
Table 1- 1 Attributes of the built-in port
RJ45 port, LINK/ACT indicators
SFP+ port, LINK/ACT indicators
A rate of 9600bps, RJ45 interface
Name
If the switch is powered on, the indicator
is on.
If the indicator flickers, the system works
normally.
Press SWAP and the indicator is on. The
indicator will automatically turn off after a
while.
If the indicator is on, the Ethernet port
indicator indicates POE power supply.
BDCOM S2952P Hardware Installation Manual
Attribute
Description
