NovaStar CX80 Pro User Manual page 7

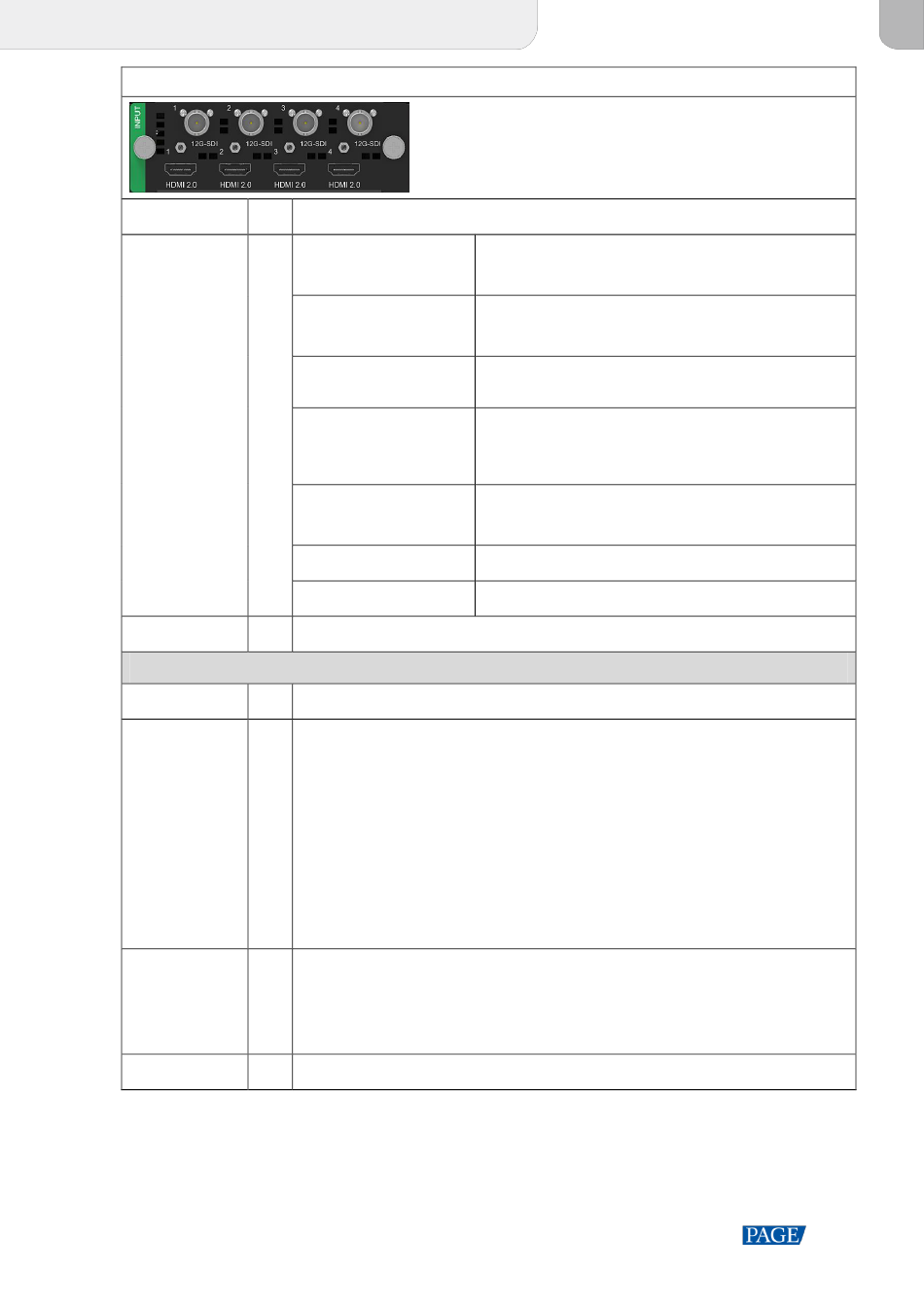

Input card 2: CX_HDMI 2.0×4+12G-SDI×4
Type Qty
HDMI 2.0 4
12G-SDI 4
Output Connectors
Type Qty
Ethernet ports 16
1~16
Optical ports 1~2 2
SPDIF OUT 1
www.novastar.tech
Description
Resolutions
Max width/height (Forced)
Frame rates
HDR
EDID management
HDCP
Interlaced signal inputs
They are the same as the 12G-SDI connectors of the input card 1 above.
Description
5Gbps Ethernet ports

Max device load capacity: 35,389,440 pixels

Max output width and height
−
Send-Only Controller mode: max width 32,768 pixels, max height 32,768 pixels
−
All-In-One Controller mode: max width 16,384 pixels, max height 16,384pixels

The maximum load capacity per port is as follows. For details, see
Load Capacity.
−
8bit@60Hz: 2,592,000 pixels
−
10bit@60Hz: 2,073,000 pixels
−
12bit@60Hz: 1,728,000 pixels
40Gbps optical ports
The maximum load capacity per optical port equals to that of 8x 5Gbps Ethernet ports.

1 corresponds to Ethernet ports 1~8.

2 corresponds to Ethernet ports 9~16.
A digital audio output (Reserved)
CX80 Pro LED Display Controller User Manual
Max resolution: 4096×2160@60Hz (Forced)
Min resolution: 800×600@60Hz
Max width: 8192 pixels (8192×1080@60Hz)
Max height: 8192 pixels (1080×8192@60Hz)
23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 /
71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
Support HDR10 and comply with the SMPTE ST 2084 and
SMPTE ST 2086 standards.
Support HLG.
Support standard resolutions, up to 3840×2160@60Hz.
Support custom input resolutions.
HDCP 2.2 compliant, backwards compatible
Not supported
11 Ethernet Port
4
