Set Ouput Bit Depth; Set Sync Source; Set Image Scaling (All-In-One Controller Mode) - NovaStar CX80 Pro User Manual

Perform any of the following operations as required.

Enable low latency
Set the Low Latency switch to

Set additional frame latency
a.
Select Additional Frame Latency.
b.
Tap and select a value from the drop-down list.

6.4.2 Set Ouput Bit Depth

Set the output bit depth of the input source.
On the main menu screen, choose Screen Settings > Bit Depth.
Select the desired bit depth value from the listed ones.
If Auto is selected, the output bit depth is the same as the input bit depth.

6.4.3 Set Sync Source

Select a synchronization signal for the display frame rate and set the phase offset.
On the main menu screen, choose Screen Settings > Sync.

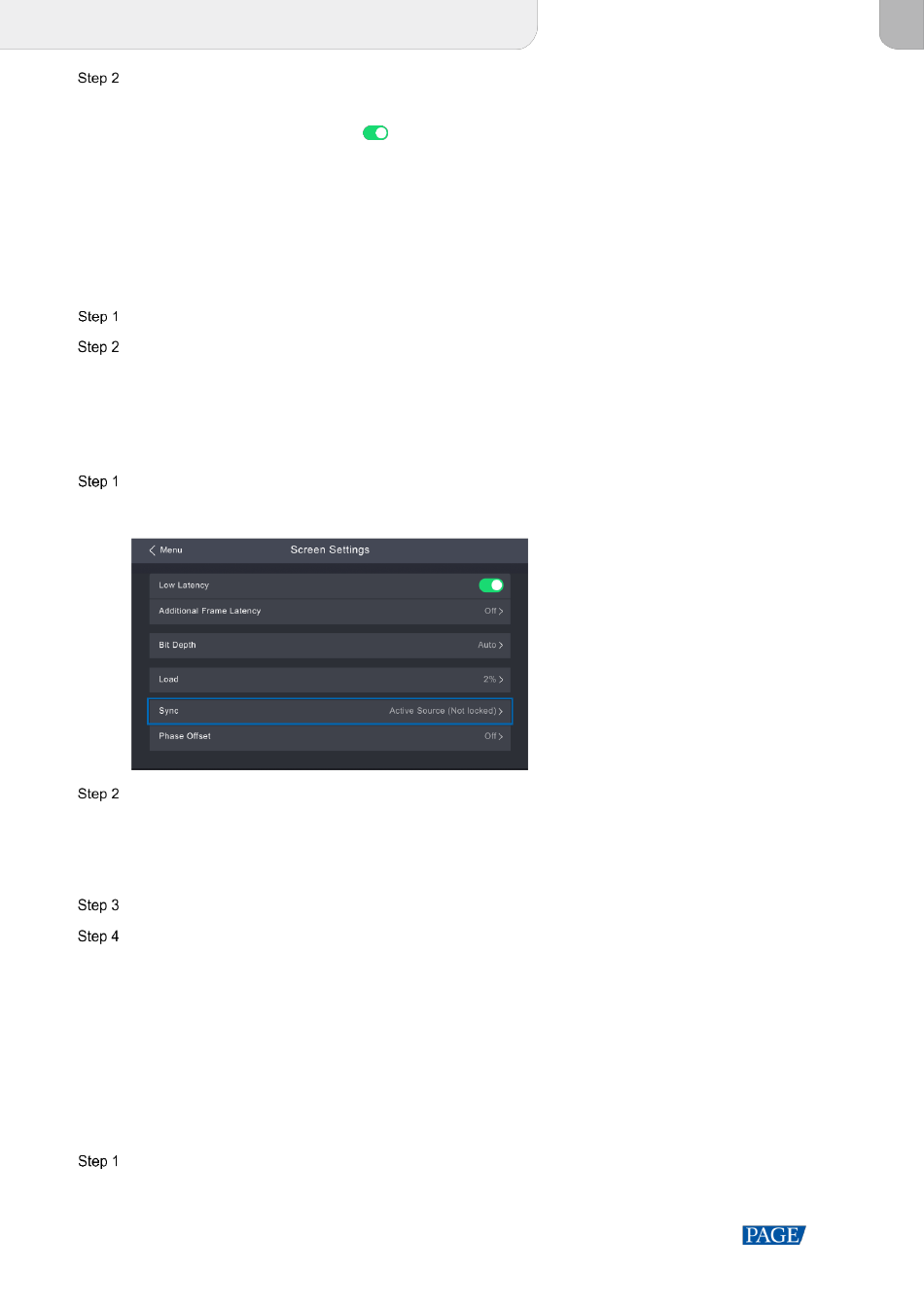

Figure 6-10 Sync
Select the desired sync source from the listed ones.

Active Source: Sync with the frame rate of the active source.

Genlock: Sync with the frame rate of the Genlock signal.

Internal: Sync with the frame rate of the controller's internal clock.
Select Phase Offset.
Select an adjustment method from the listed options and press the knob.

Off: Turn off the phase offset function.

Angle: The related parameter Angle can be set.

Fraction: The related parameter Fraction can be set.

Absolute: The related parameters Lines and Pixels can be set when the sync source is Active Source.

6.5 Set Image Scaling (All-In-One Controller Mode)

When the working mode is All-In-One Controller, the canvas size and the layer (currently only 1 layer supported) on
the canvas can be set.
Select the Layer menu from the main menu.
