Firmware package

If user needs to change his project settings (Include and preprocessor defines), he

must go through the project options:

–

In MDK-ARM IDE, from the Debug menu, select Start/Stop Debug Session or,

alternatively, click the Start/Stop Debug Session button in the toolbar, to program the

Flash memory and start debugging (see

The debugger in the MDK-ARM can be used to debug source code at C and assembly

levels, set breakpoints, monitor individual variables and watch events during the code

execution.

12/22

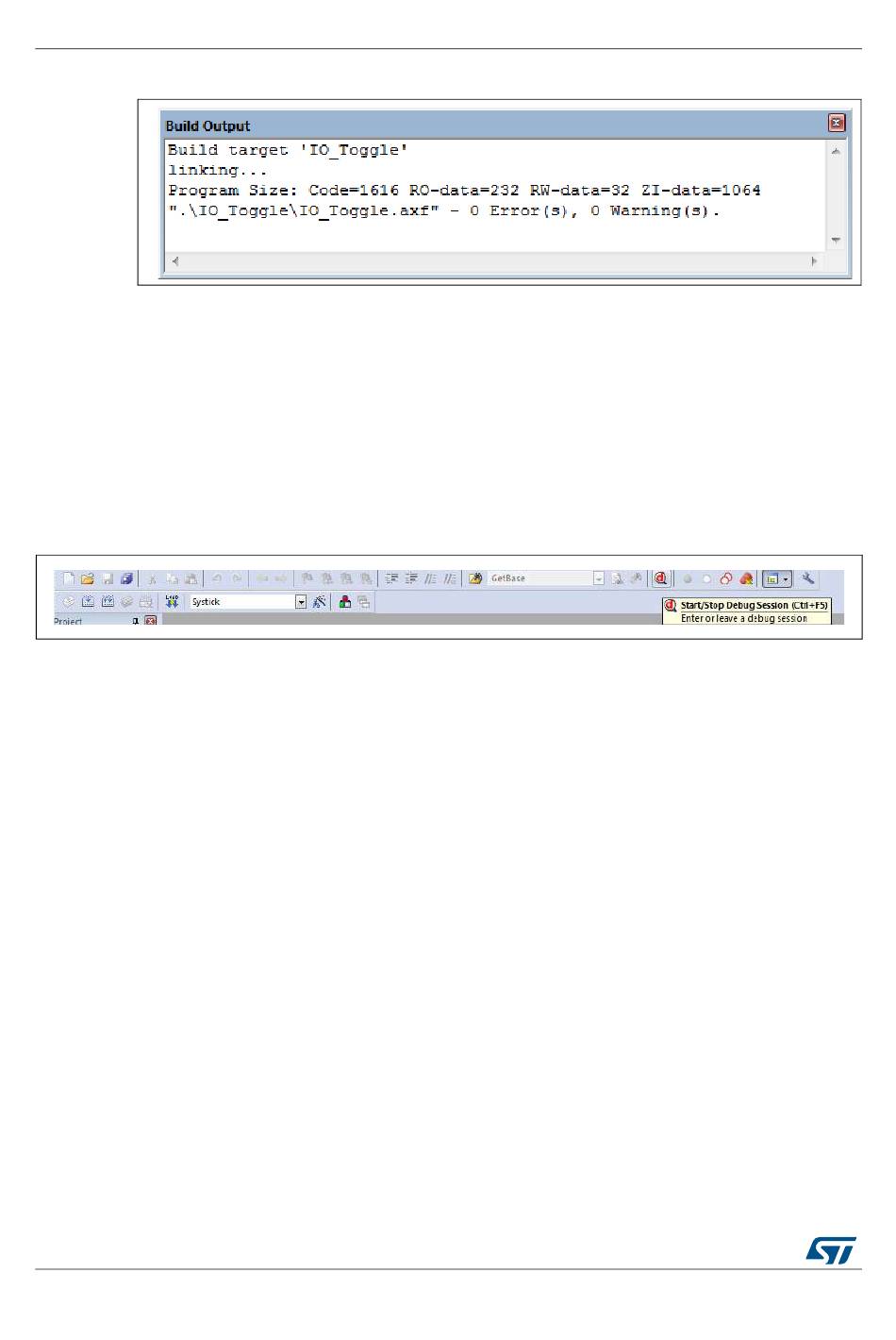

Figure 12. MDK-ARM project successfully compiled

For Include directories:

Project>Options for Target > C/C++ > Include Paths

For pre-processor defines:

Project>Options for Target > C/C++ > Preprocessor symbols > Define

DocID025840 Rev 5

Figure

13).

UM1727
