Firmware package
5. In IAR Embedded Workbench IDE, from the Project menu, select Download and
Debug or, alternatively, click the Download and Debug button in the toolbar, to
program the Flash memory and start debugging (see
6. The debugger in IAR Embedded Workbench can be used to debug source code at C
and assembly levels, set breakpoints, monitor individual variables and watch events
during the code execution (see
To run the application from the Debug menu, select Go. Alternatively, click the Go
button in the toolbar to run the application (see
10/22

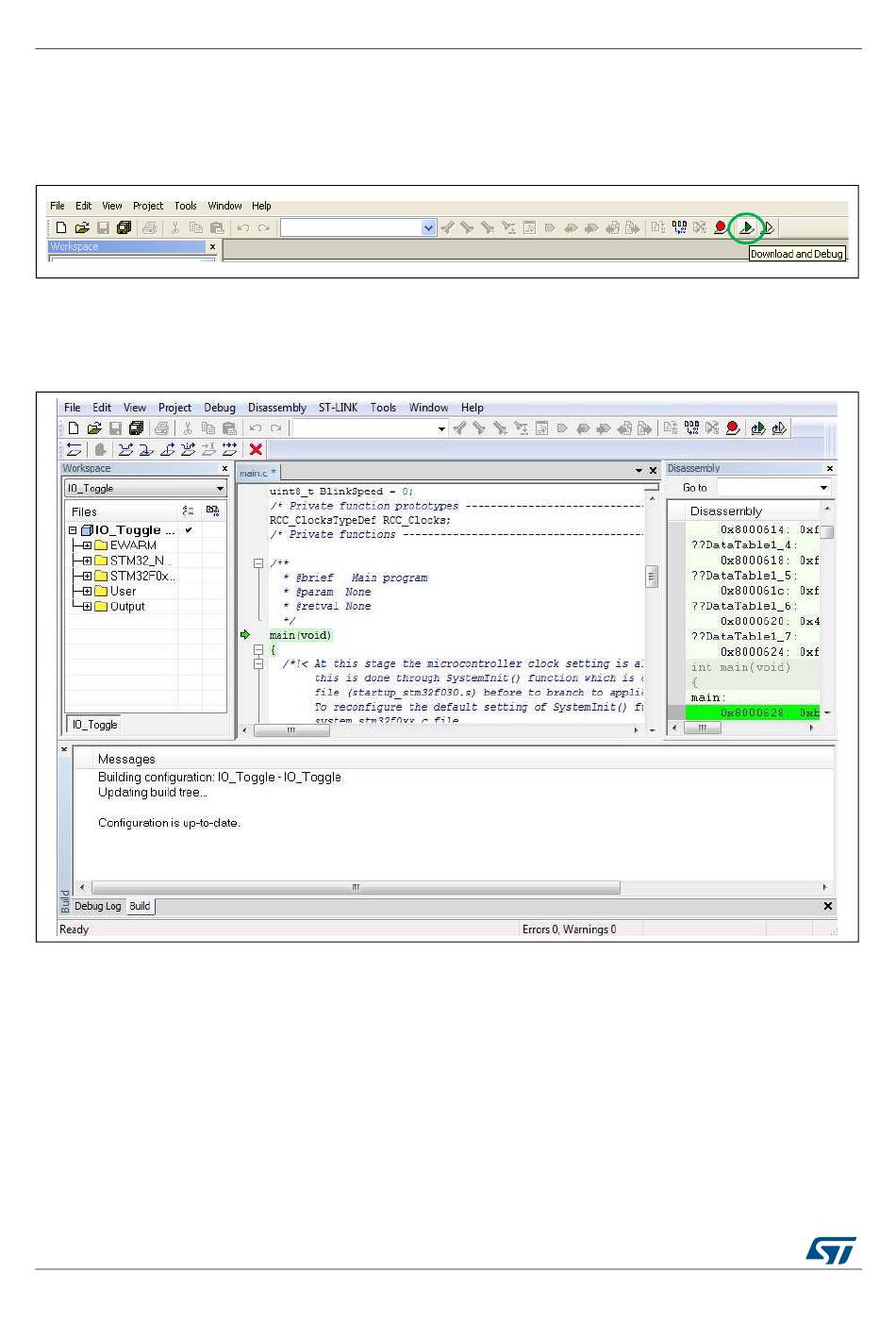

Figure 8. Download and debug button

Figure 9. IAR Embedded Workbench debugger screen

DocID025840 Rev 5
Figure 9).
Figure
Figure 8).
10).
UM1727
