STATUS

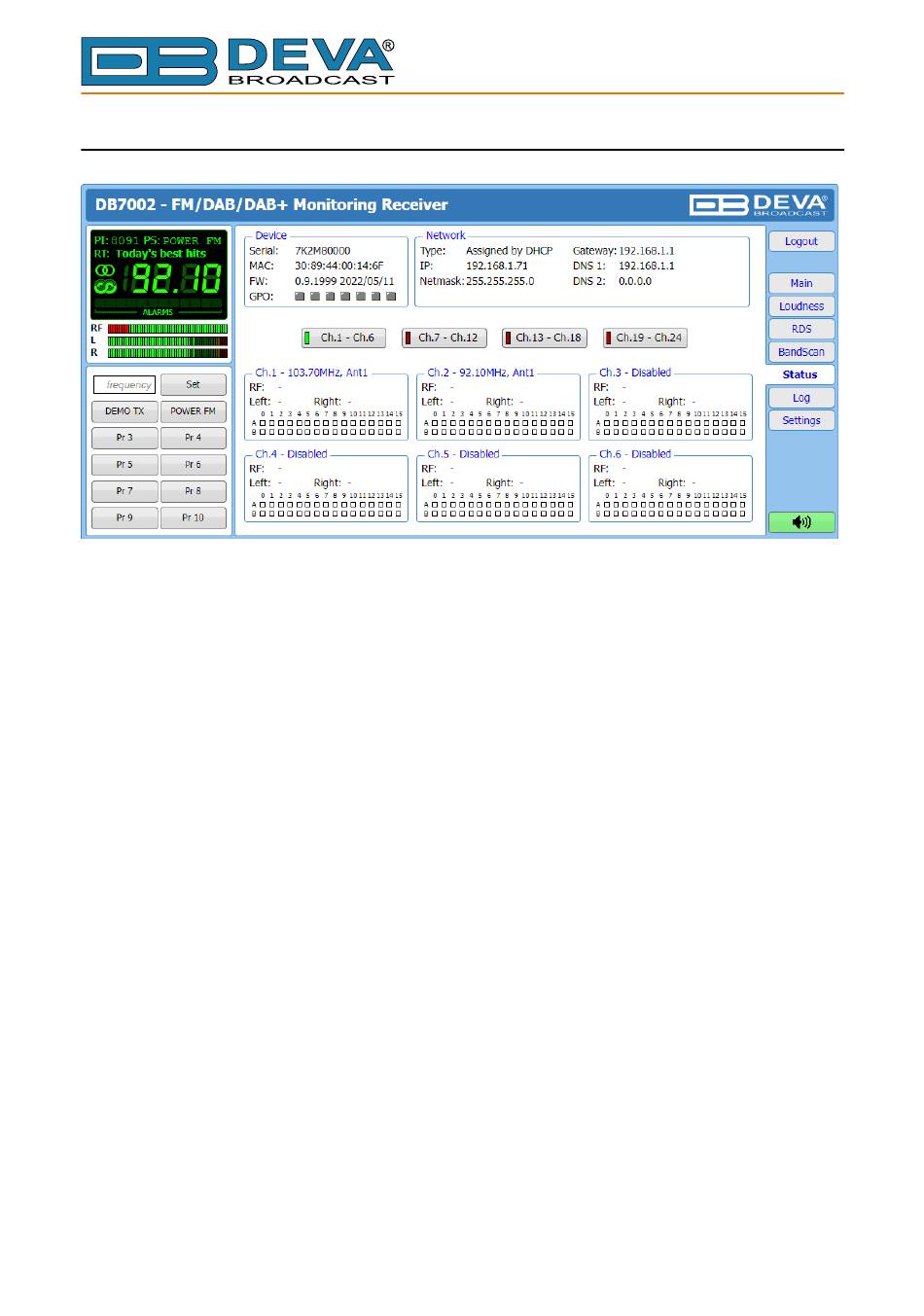

This Screen shows the alarm status of each parameter of the preset frequencies, along with the
basic device and network status (IP address, MAC, etc.).
The Channel parameters (RF, LEFT, RIGHT) have several conditions:
•
In range - green OK;
•
Out of range - red LOW, HIGH or LOSS;
•
Signal monitoring is not enabled - n/a.
The status of the RDS/RBDS Groups Alarm is displayed on the bottom of the channels' section:
•
Green - RDS/RBDS Group is received;
•
Red - RDS/RBDS Group is not received and an alarm has been triggered;
•
White (blank) - RDS/RBDS Group is not received and no alarm has been triggered.
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria
Tel: +359 56 820027, Fax: +359 56 836700
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com
- 60 -
