LEVELS

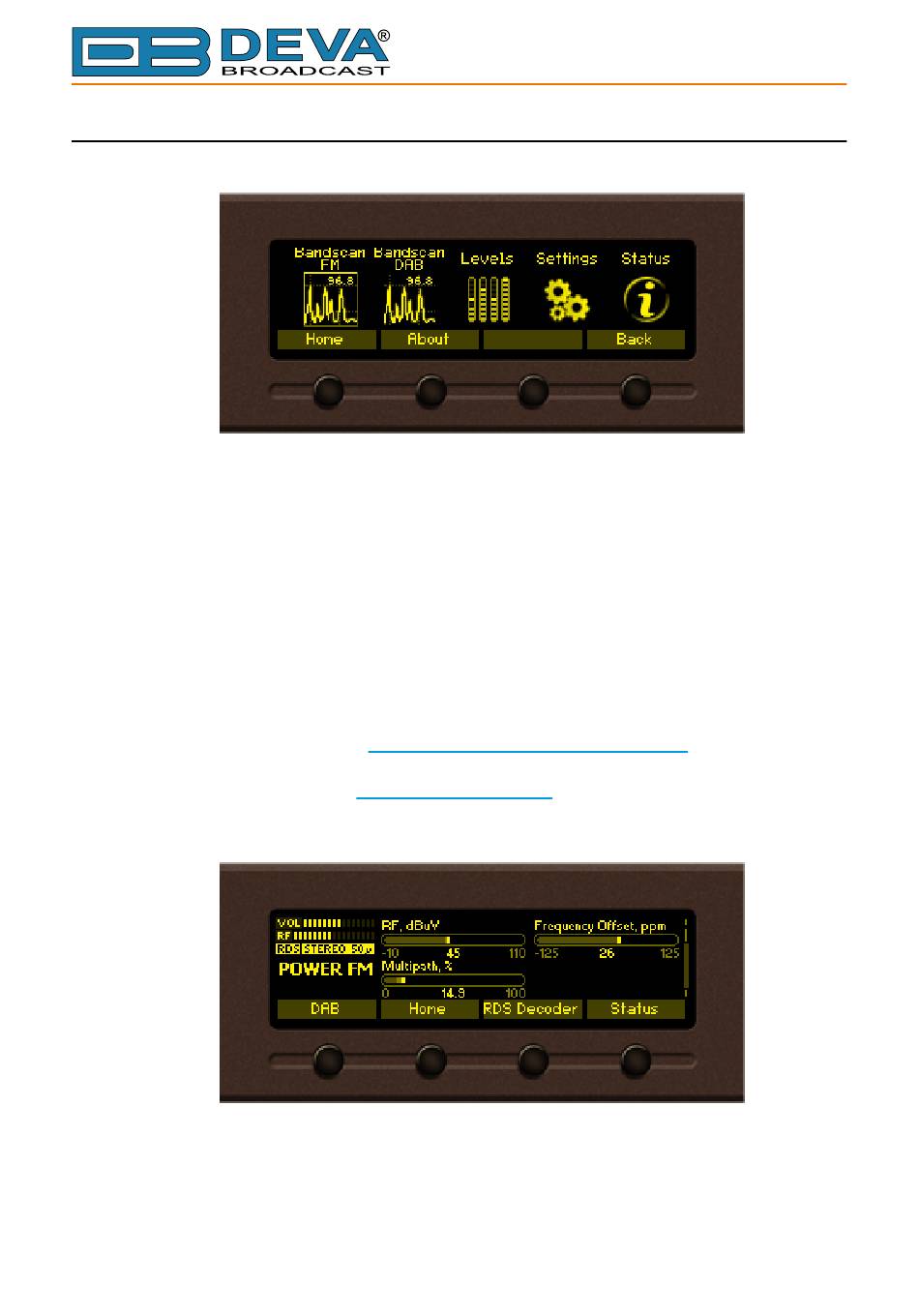

Enter the Main Menu page and select the Level icon, press [OK] button to enter the menu.
Levels page shows bar graph representation of the different signals, measured by DB7002.
The parameters are divided into groups. Each bar graph displays the low, average and high values
of the signal. The number in the center below represents the average value. The shaded color
number, placed on the left and right bottom edges, denotes the measurement range of the signal.
Measurement units and name of the signal are written above the corresponding bar graph.
Buttons usage:
[OK] – leads to Main menu page;
[Up]/[Down] – Changes the currently displayed bar graph group;
[SB1] – Switches between FM and DAB Levels;
[SB2] – lead to Home Screen;
[SB3] – leads to RDS Decoder
a list containing all Services available in the current Ensemble when in DAB
[SB4] – leads to Status Screen

FM Levels

FM Group 1. RF, Multipath and Frequency offset parameters
