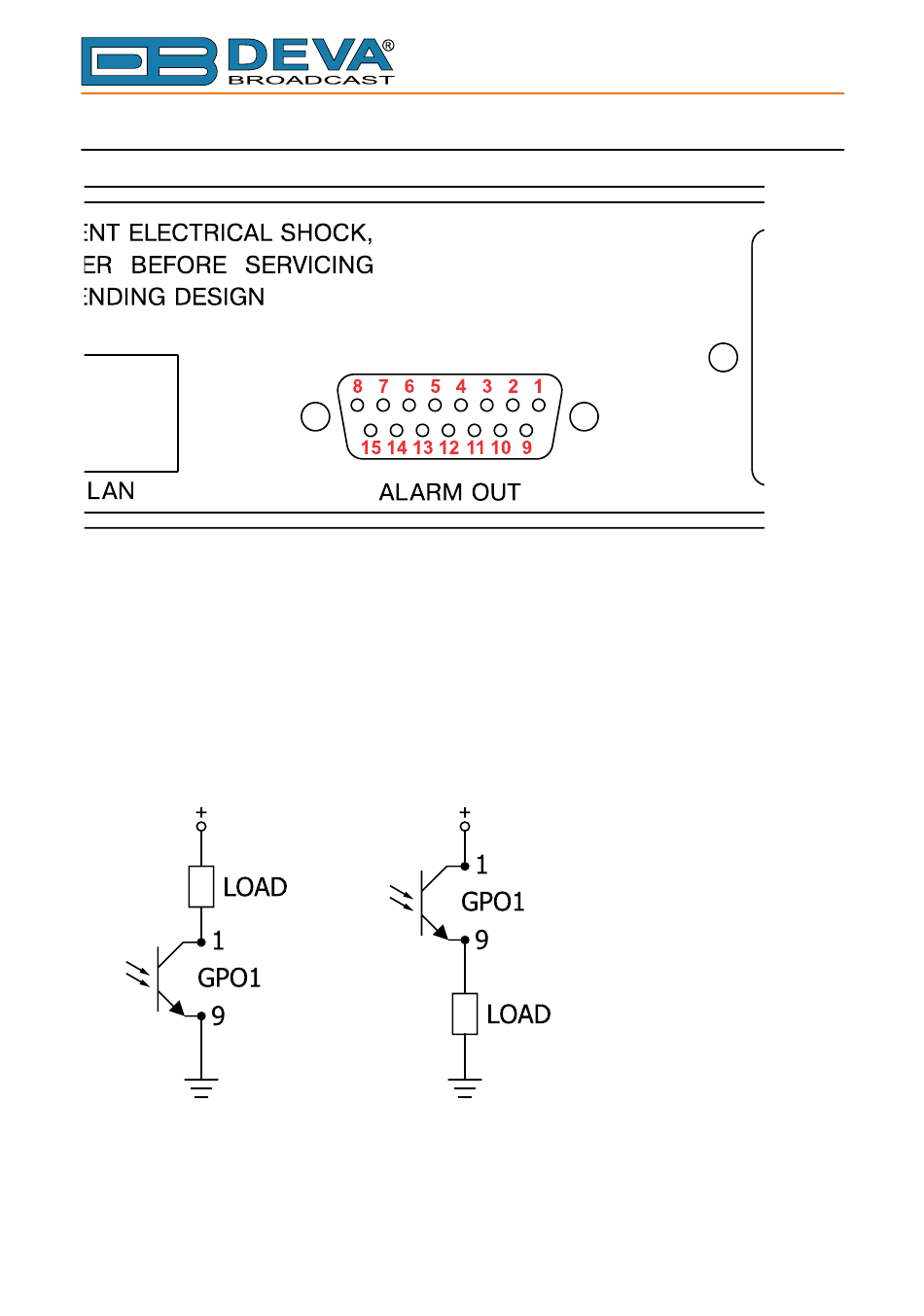

REAR PANEL ALARM TERMINAL

1 - GPO1 Collector

2 - GPO2 Collector

3 - GPO3 Collector

4 - GPO4 Collector

5 - GPO5 Collector

6 - GPO6 Collector

7 - GPO7 Collector

8 - GND

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com

9 - GPO1 Emitter

10 - GPO2 Emitter

11 - GPO3 Emitter

12 - GPO4 Emitter

13 - GPO5 Emitter

14 - GPO6 Emitter

15 - GPO7 Emitter

- 16 -
