ENSEMBLE

Ensemble

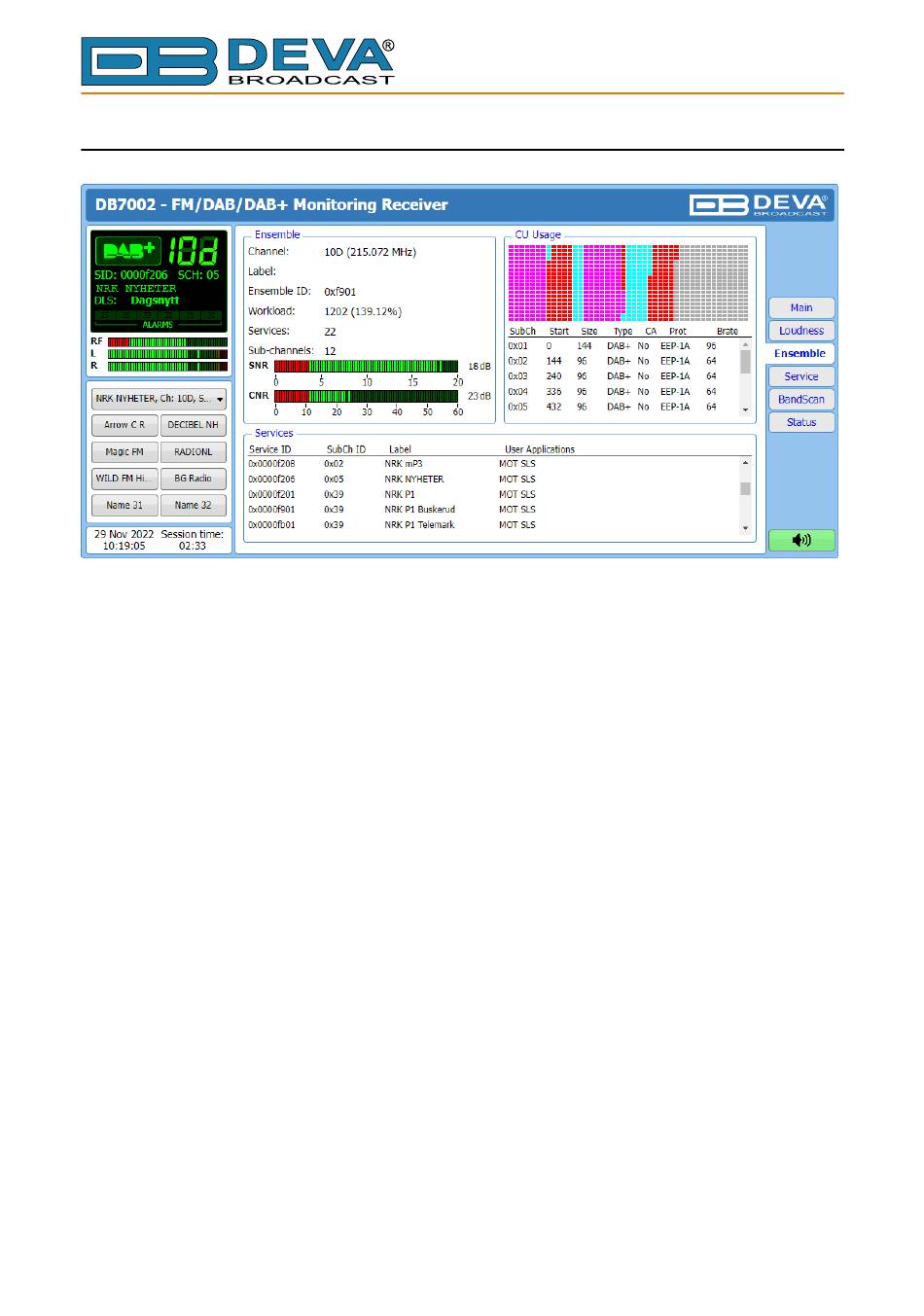

Information as regards the currently selected ensemble as regards the Channel, Label, Ensemble

ID, Workload, number of available Services and Sub-channels, SNR (signal-to-noise) and CNR

(carrier-to-noise) indicators in dB can be found in this section.

Representation on the CU usage of the Ensemble. An ensemble has a maximum bit rate that can

be carried, but this depends on which error protection level is used. However, all DAB multiplexes

can carry a total of 864 "capacity units". The number of capacity units, or CU, that a certain

bit-rate level requires depends on the amount of error correction added to the transmission, as

described above.

As various different services are embedded into one ensemble, list of the available Services can

also be found in this tab.
