DB7002 can be controlled through the built-in web server. A standard web browser can be used

to monitor the status of the device or to make some adjustments.

There are two options for access to the WEB Interface of DB7002. The first one is through

manual identification of the IP address of the device, and the second one is through the Network

discovery option (For Windows 7 and above users only).

Connect the device to a local network or to the Internet by the applied LAN cable. Through the

Front panel navigational menu, pressing the [OK] button you will be enabled to enter the device

main menu.

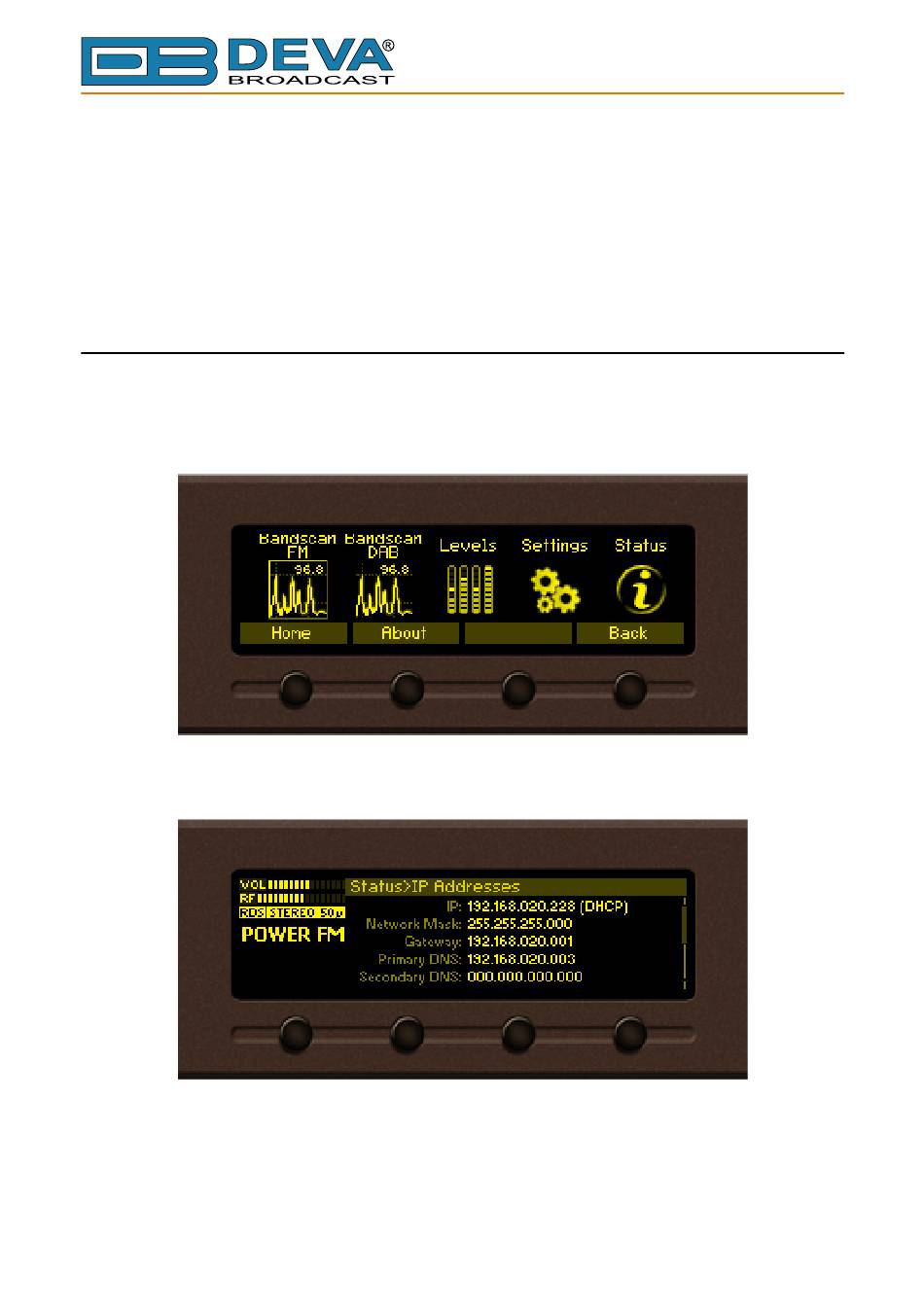

Using the [RIGHT] navigational button find the "Status" section, located at the end of the Menu.

Press the [OK] Button to enter the "Status" section. Via the Front panel navigational menu press

the [DOWN] button.

This operation will visualize the screen containing information about the IP Address of the

device.

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com

WEB Interface

- 50 -
