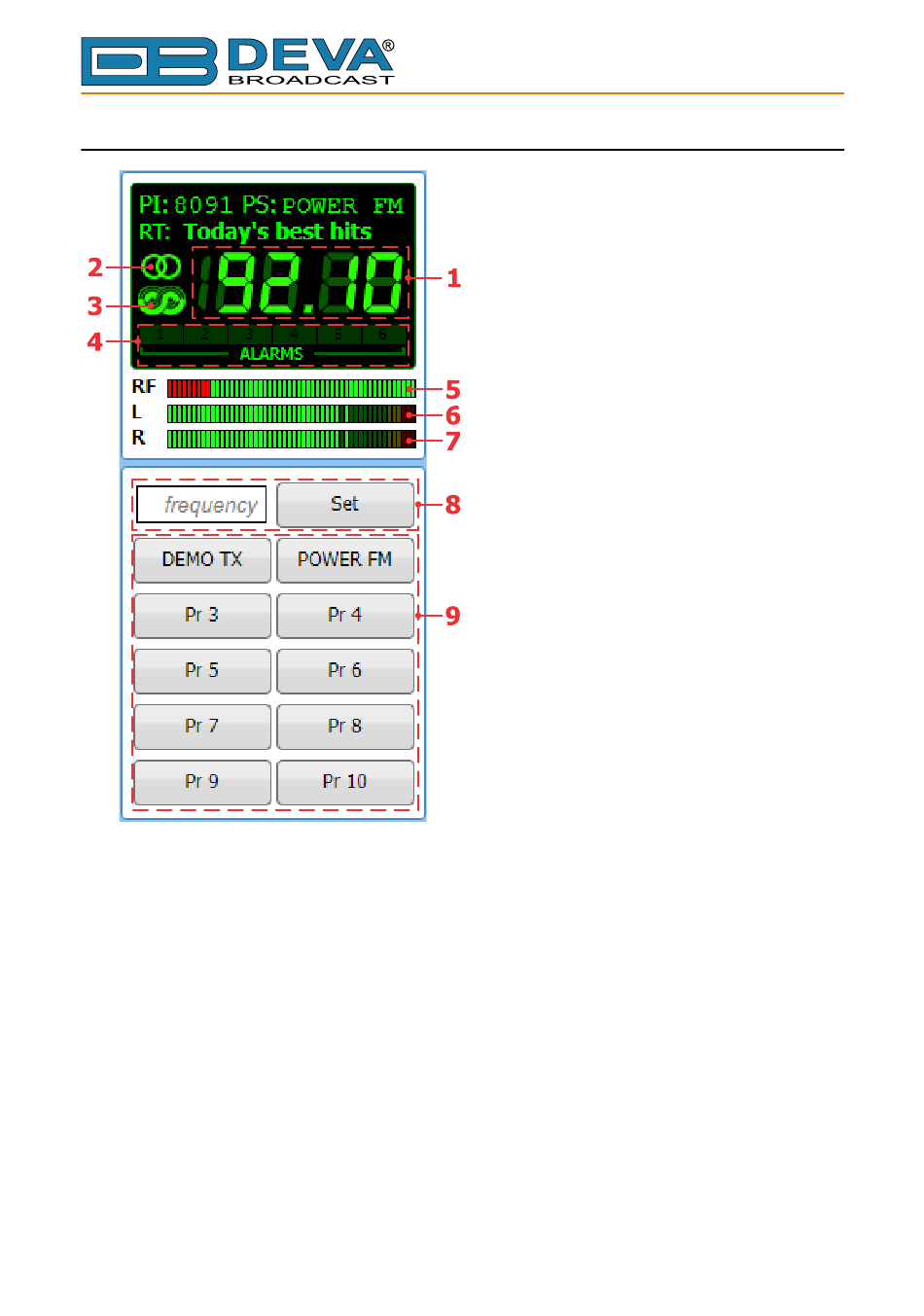

FM DASHBOARD
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria
Tel: +359 56 820027, Fax: +359 56 836700
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com
1. Frequency indicator showing currently
tuned frequency;
2. Stereo indicator;
3. RDS/RBDS presence indicator;
4. Channel Alarms indicator – will be lit in
red when the Logger has detected an alarm
on channel;
5. RF Level indicator. The red zone (low
level) indicates low RF level;
6. Left Audio Indicator;
7. Right Audio indicator;
8. Frequency set buttons;
9. Channel Preset Buttons – when one of the
buttons is pressed, the Tuner will be set to
the predefined frequency.
- 53 -
