FM HOME SCREEN

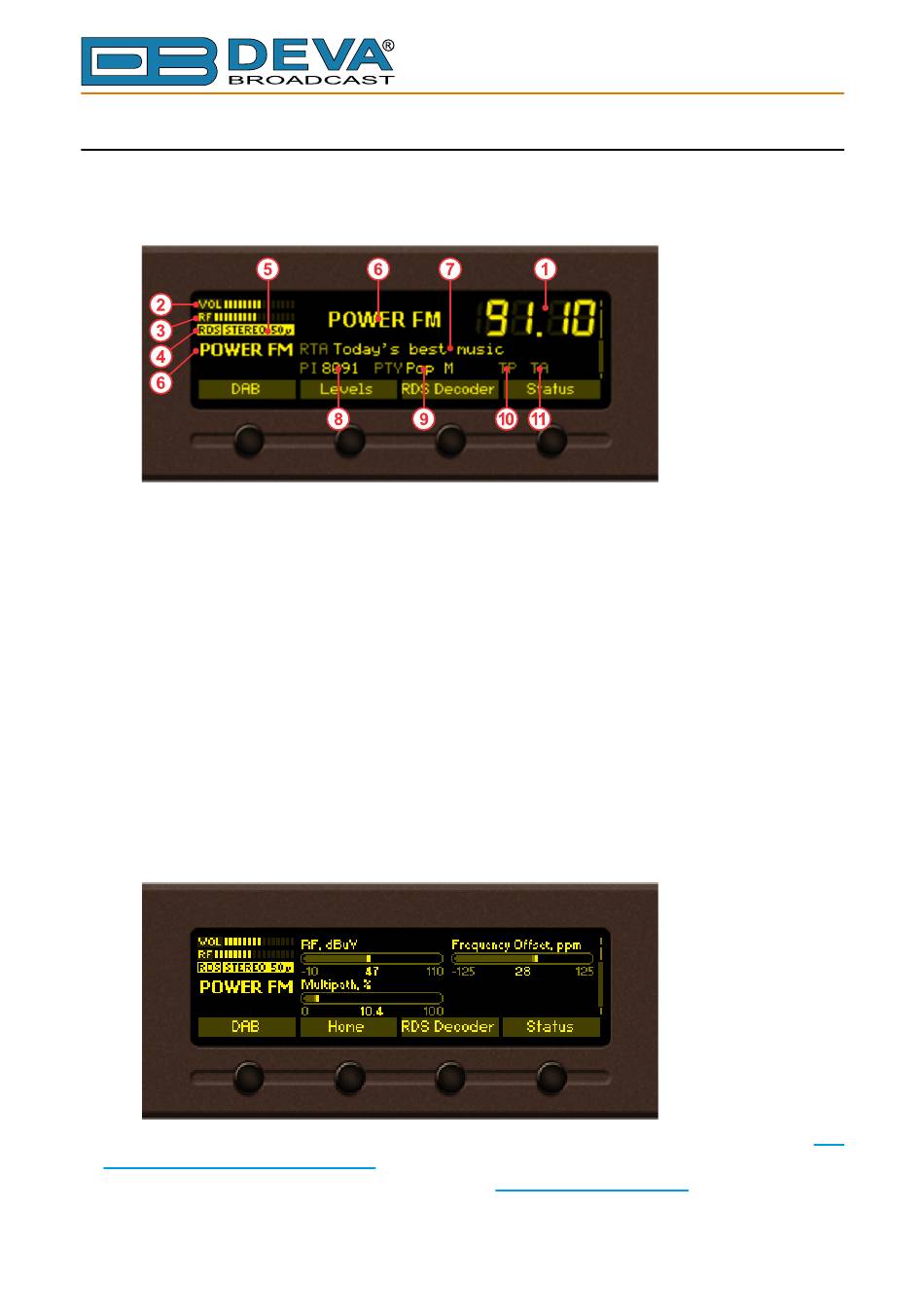

The FM home screen contains all the needed information as regards the current Station. The
header is located on the left part of the screen. The header content is determined according to the
work area context and may include the functions described below.
1. Frequency Indicator, showing the currently selected frequency, in MHz;
2. Indicator showing the phones audio volume;
3. Indicator showing the signal level at selected antenna input;
4. Indicator for RDS presence of information contained in the received signal;
5. Indicator for Stereophonic Information-contains information about the received signal and
currently selected de-emphasis time constant;
6. Decoded PS information from RDS signal;
7. Decoded RT (RadioText) information from RDS signal;
8. Decoded PI/CALL information from RDS signal;
9. Decoded PTY information from RDS signal;
10. Decoded TP information from RDS signal;
11. Decoded TA information from RDS signal;

Soft Buttons

[SB1] – DAB – Switches to the DAB Home Screen;
[SB2] – Levels – Displays all the mandatory parameters of the current FM Station. Use [UP]
and [DOWN] arrow buttons to scroll through available parameters.
[SB3] – RDS Decoder – Displays RDS Decoder information of the current FM Station
"RDS/RBDS Decoder" on page
[SB4] – Status – Displays Device Status Screen
