DAB/DAB+ DASHBOARD
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria
Tel: +359 56 820027, Fax: +359 56 836700
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com

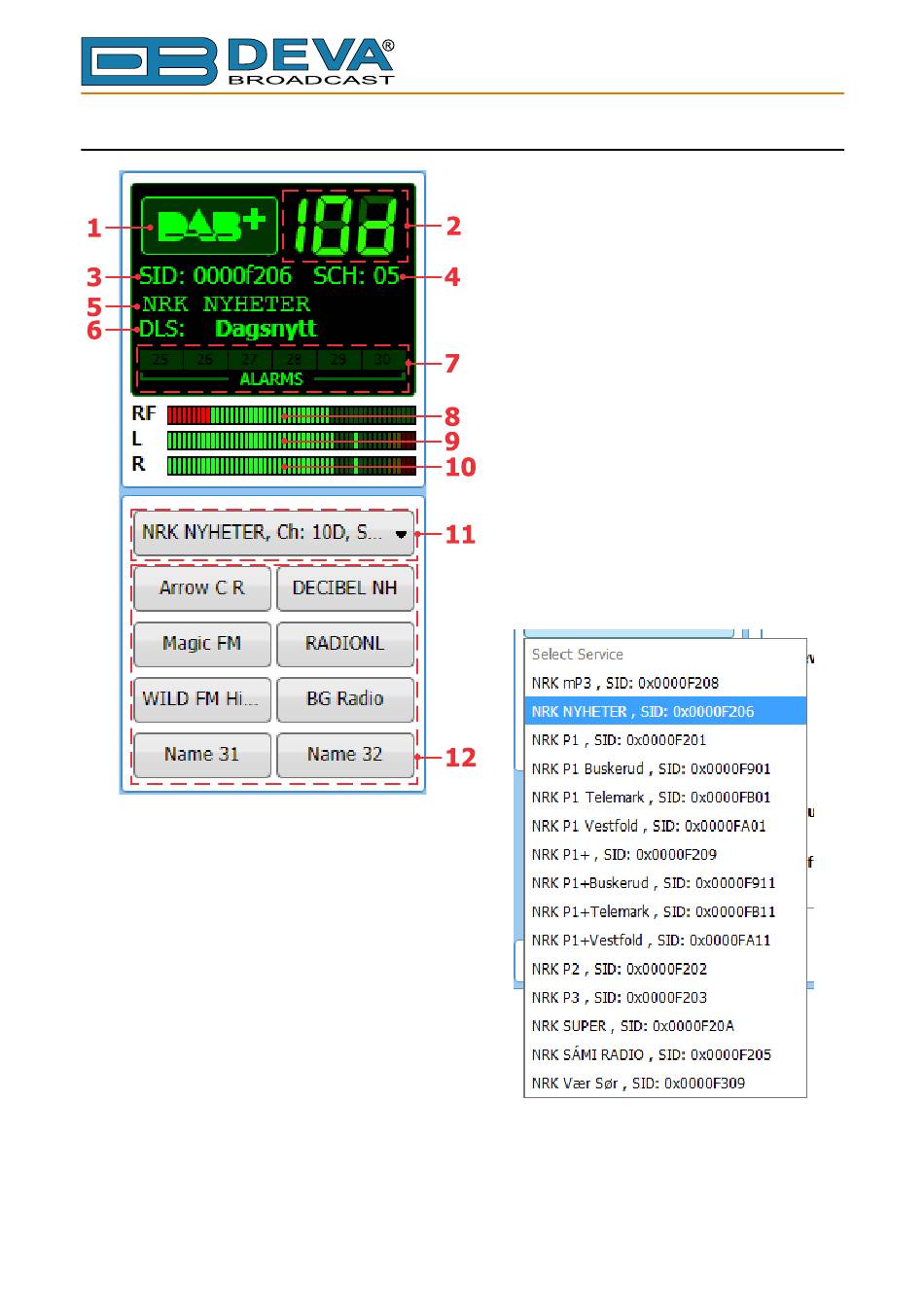

1. DAB/DAB+ signal lock indicator;
2. Frequency indicator showing currently
tuned frequency;
3. SID – This 16-bit field shall specify the
DAB Service Identifier (SID) to which the
information block data applies;
4. SCH – Sub Channel ID;
5. Currently selected service label;
6. DLS – (Dynamic Label Segment) scrolling
text;
7. Alarm presence indicator – will be lit in
red when an alarm on at least one channel
is detected;
8. RF Level indicator. The red zone (low
level) indicates low RF level;
9. Left Audio indicator;
10. Right Audio indicator;
11. Drop-down Select Service menu – A list
containing all services available in the
current Ensemble.
12. Service Preset Buttons – when one of the
buttons is pressed, the Tuner will be set to
the predefined service.
