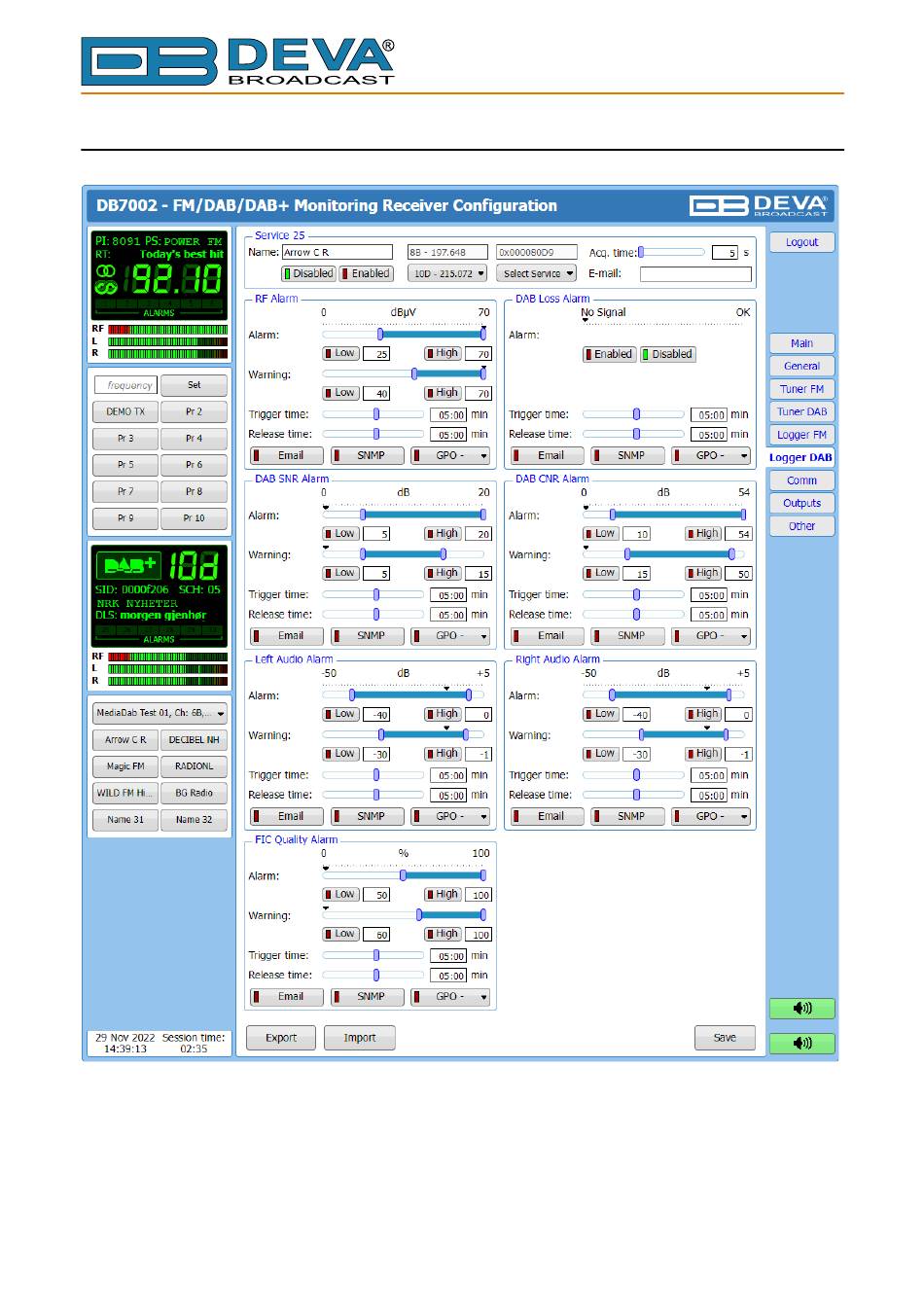

DAB LOGGER SERVICE SETTINGS (SERVICE 1)

The DB7002 can monitor up to 24 preset DAB Services at regular intervals and send alarm
notification via E-mail, SNMP and GPO. Every Channel consists of a group of settings (explained
in details below), which are used when monitoring and alerting. Each preset has its own page
where it is being configured. Measurement windows can be set for each of the six parameters: RF,
Left and Right audio levels, DAB Loss, DAB SNR, DAB CNR, FIC quality. Trigger and alarm
release times can be set for each alarm.
The notification means (Email, SNMP, GPO) is set for each parameter individually. To enable
the notification, press on the relevant button so that it could be illuminated in green.
