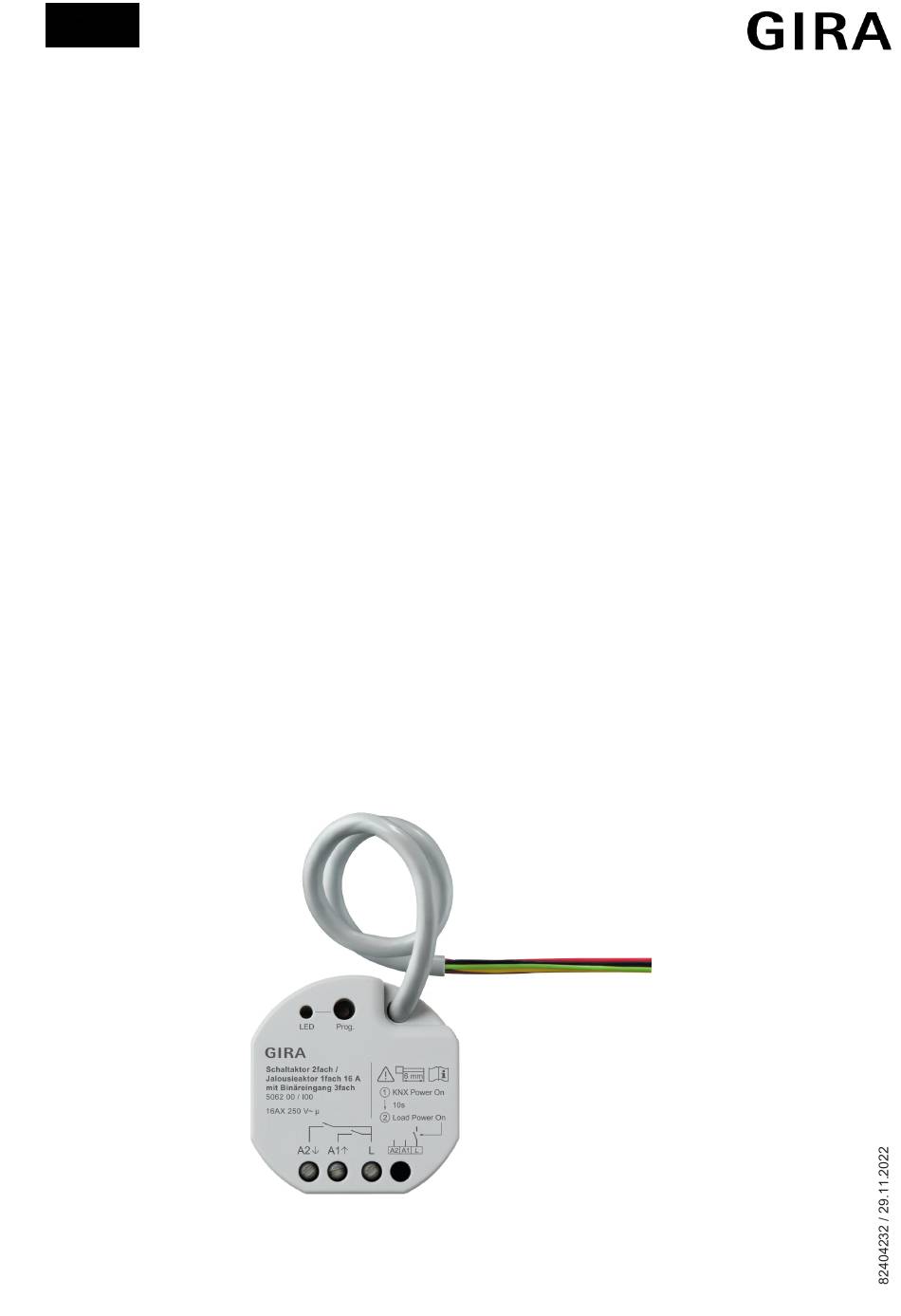

- Page 1 Operating instructions Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang Order no. 5062 00...
-
Page 2: Table Of Contents
Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang Table of Contents Safety instructions ...................... 3 Device components...................... 4 Function .......................... 5 Information for electrically skilled persons ................ 7 Mounting and electrical connection................ 7 Commissioning .................... 10 Technical data ......................... 11 Accessories ........................ 12 Parameter list ........................ 13 Warranty.......................... 17... -
Page 3: Safety Instructions
Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. -

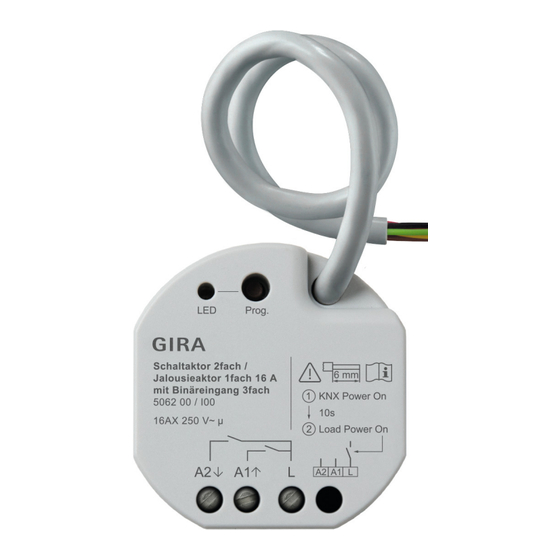

Page 4: Device Components
Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang Device components Image 1: Device components Programming LED Programming button Control cable (bus connection and extension inputs) Connection of load (relay outputs) Image 2: Connection assignment of control cable (example) red (RD) KNX / One + black (BK) -
Page 5: Function
It can be operated via Gira One switches, by app from home or securely from a remote location. Electrically skilled persons can maintain the Gira One project re- motely free of charge. - Page 6 Connection of rockers that are configured with the function for switching, dim- ming, shading & ventilation, scene recall, staircase (motion detector), floor call with Gira G1, garage door and door opener. – Connection of motion and presence detectors with potential-free relay outputs.
-
Page 7: Information For Electrically Skilled Persons
Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang – Window contact polling and visualisation in the Smart Home app: An open window leads to the frost protection heating mode after a configured time has elapsed. –... - Page 8 Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang Image 3: Mounting example in electronic appliance box with partition wall, series push-button and NTC temperature sensor Appliance box Partition potential-free contacts (e.g. series push-button) NTC temperature sensor (optional) Image 4: Cable spacing Minimum spacing between the mains voltage and bus/extension wires: 4 mm (see figure 4)
- Page 9 Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang Image 5: Connection of load Observe ambient temperature. Ensure adequate cooling. ￭ Connect bus line, observing the correct polarity. ￭ Connect load as shown in the connection example (see figure 5). ￭...
-
Page 10: Commissioning
Adjusting the slats DOWN Press for a long time (> Lower 0.9 s) The device is commissioned with the Gira Project Assistant (GPA) version 5 or higher. Safe-state mode The safe-state mode stops the execution of the program. Only the system software of the device is still functional. Diagnosis functions and pro- gramming of the device are possible. -
Page 11: Technical Data
Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang ￭ Switch on the bus voltage or connect the bus again at the device. Release the programming button only after the programming LED starts flashing slowly. The safe-state mode is activated. Deactivating safe-state mode ￭... -
Page 12: Accessories
Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang LV halogen lamps with electronic 1500 W transformers LV halogen lamps with inductive 1200 VA transformer Compact fluorescent lamps 1000 W uncompensated Compact fluorescent lamps parallel 1160 W (140 μF) compensated Reduction of switching current per device (referred to Σ... -
Page 13: Parameter List
Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang Parameter list Parameters that can be set via the GPA: Output - Switching functions Function of the switching output NO contact NC contact NO contact The relay works as an NO contact. The logical switching state of the switching out- put is not forwarded to the relay in inverted form. - Page 14 Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang Staircase switch 0 ... 3599 s (0 ... 59:59 min) Switch-off delay The duration of the switch-on time for the staircase function is configured here. Once the time set here has elapsed, the lighting is switched off or (if configured) the pre-warning time is started.
- Page 15 Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang Slat travelling time (for Venetian blind 0 ... 1199 s (0 ... 19:59 min) only) This parameter defines the travelling time of the slats. For this, you must determine the time needed for a complete movement from the completely open slat position to the completely closed slat position (travel movement DOWN).
- Page 16 Switching actuator 2-gang / blind actuator, 1-gang 16 A with binary input, 3-gang Input Debounce time 10 ... 255 ms This parameter sets the debouncing time individually for the input. According to the time set here, the input signal at the input is evaluated with a delay. Contact type NO contact NC contact...
-
Page 17: Warranty
Please submit or send faulty devices postage paid together with an error de- scription to your responsible salesperson (specialist trade/installation company/elec- trical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
