Gira 5023 00 Manual

Switching actuator / blind actuator 16a standard & komfort with knx
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

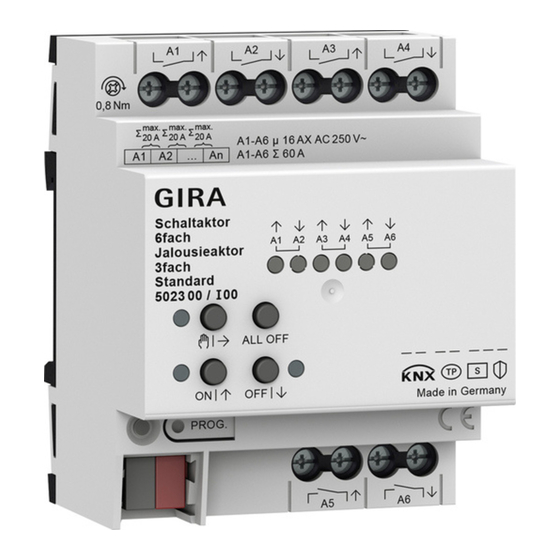

Switching actuator / blind actuator 16 A Standard & Komfort
Switching actuator, 6-gang / blind actuator, 3-gang Standard
Order no.: 5023 00
Switching actuator, 16-gang / blind actuator, 8-gang Standard
Order no.: 5028 00
Switching actuator, 24-gang / blind actuator, 12-gang Standard
Order no.: 5030 00
Switching actuator, 6-gang / blind actuator, 3-gang Komfort
Order no.: 5033 00
Switching actuator, 16-gang / blind actuator, 8-gang Komfort
Order no.: 5038 00
Switching actuator, 24-gang / blind actuator, 12-gang Komfort
Order no.: 5040 00
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The device may not be opened or operated outside the technical specifications.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock on the SELV/PELV installation. Do not connect loads for mains voltage
and SELV/PELV together to the device.
For parallel connection of several motors to an output it is essential to observe the correspond-
ing instructions of the manufacturers, and to use a cut-off relay if necessary. The motors may be
destroyed.
Use only venetian blind motors with mechanical or electronic limit switches. Check the limit
switches for correct adjustment. Observe the specifications of the motor manufacturers. Device
can be damaged.
Do not connect any three-phase motors. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end customer.
2

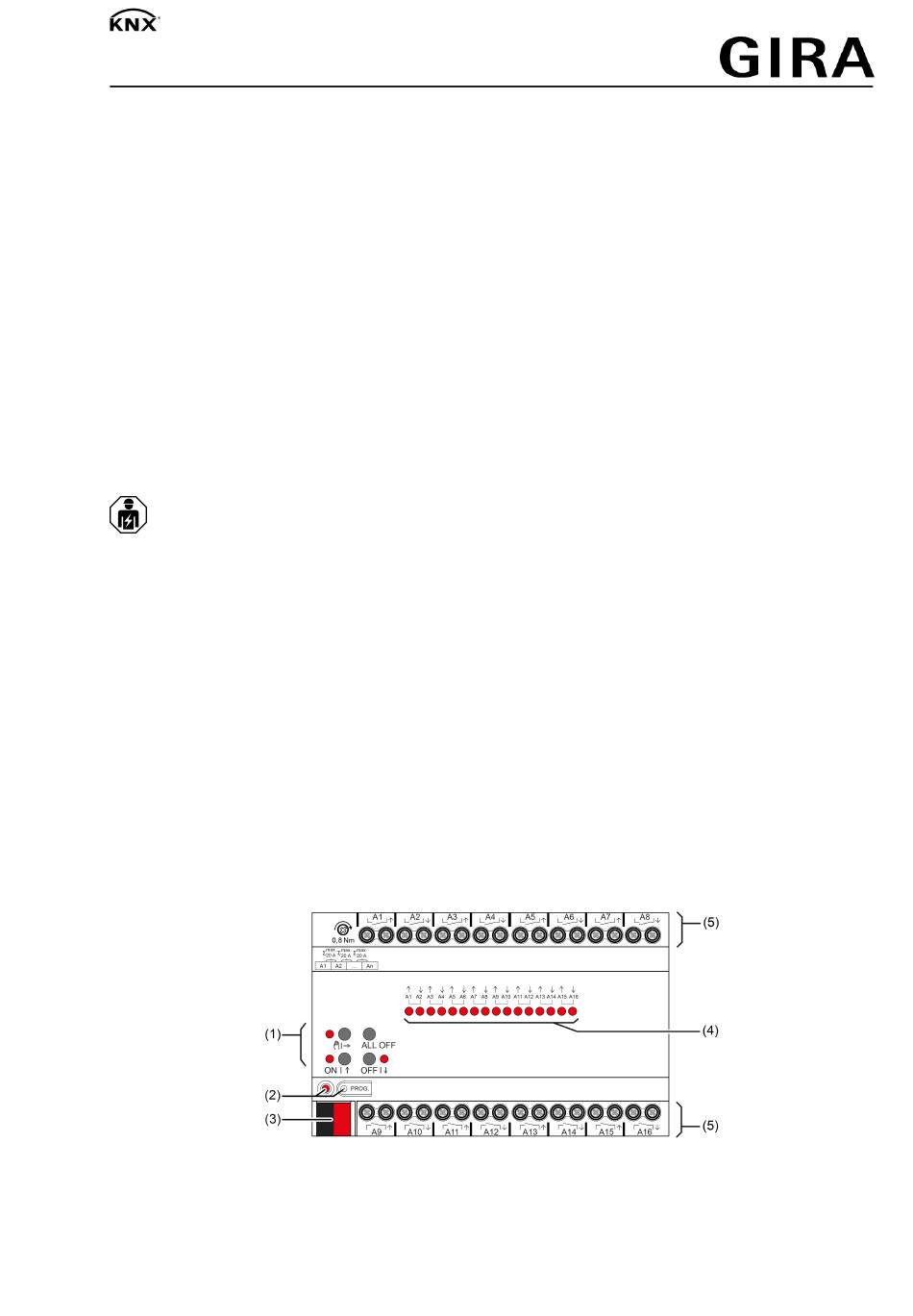

Device components
(1)
Button field for manual operation
(2)
Programming button and LED
(3)
KNX connection
82402612
Figure 1: Device components
23.09.2020
1 / 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5023 00 and is the answer not in the manual?

Questions and answers

Related Manuals for Gira 5023 00

Summary of Contents for Gira 5023 00

  • Page 1 Switching actuator / blind actuator 16 A Standard & Komfort Switching actuator, 6-gang / blind actuator, 3-gang Standard Order no.: 5023 00 Switching actuator, 16-gang / blind actuator, 8-gang Standard Order no.: 5028 00 Switching actuator, 24-gang / blind actuator, 12-gang Standard Order no.: 5030 00...
  • Page 2 The device can be updated. Firmware can be easily updated with the Gira ETS Service App (additional software). The device is KNX Data Secure capable. KNX Data Secure offers protection against manipula- tion in building automation and can be configured in the ETS project.

  • Page 3: Operation

    Switching actuator / blind actuator 16 A Standard & Komfort – Sun protection function with heating/cooling operation – Disabling function (lock-out protection) – Scene function Logic function characteristics – Logic gates – Transformer (conversion) – Disabling element – Comparator – Limit value switch Operation Figure 2: Operating elements...
  • Page 4 Switching actuator / blind actuator 16 A Standard & Komfort Normally open contact: switch on = close relay, switch off = open relay Normally closed contact: switch on = open relay, switch off = close relay The LEDs (4 + 8 + 11) always indicate the relay status. The LEDs (4) optionally indicate the status of the outputs only temporarily (depending on the parameters).

  • Page 5: Information For Electrically Skilled Persons

    Switching actuator / blind actuator 16 A Standard & Komfort Switching outputs: depending on the programming, the output relays switch to the position that is active after the manual mode is switched off, e.g. to the forced position, logic func- tion.

  • Page 6: Fitting And Electrical Connection

    Switching actuator / blind actuator 16 A Standard & Komfort 5.1 Fitting and electrical connection Fitting the device In secure operation (preconditions): – Secure commissioning is activated in the ETS. – Device certificate entered/scanned or added to the ETS project. A high resolution camera should be used to scan the QR code.
  • Page 7 Switching actuator / blind actuator 16 A Standard & Komfort 5.2 Commissioning Commissioning the device NOTICE! Incorrect load control due to undefined relay state at delivery. Risk of destruction of connected drive motors. During commissioning, before switching on the load, ensure that all relay contacts are open by applying the KNX bus voltage.

  • Page 8: Technical Data

    5 s. Restoring the device to factory settings Devices can be reset to factory settings with the Gira ETS Service App. This function uses the firmware contained in the device that was active at the time of delivery (delivery state). Restor- ing the factory settings causes the devices to lose their physical address and configuration.

  • Page 9: Warranty

    The warranty is provided in accordance with statutory requirements via the specialist trade. Please submit or send faulty devices postage paid together with an error description to your re- sponsible salesperson (specialist trade/installation company/electrical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...

This manual is also suitable for:

5028 005030 005033 005038 005040 00
