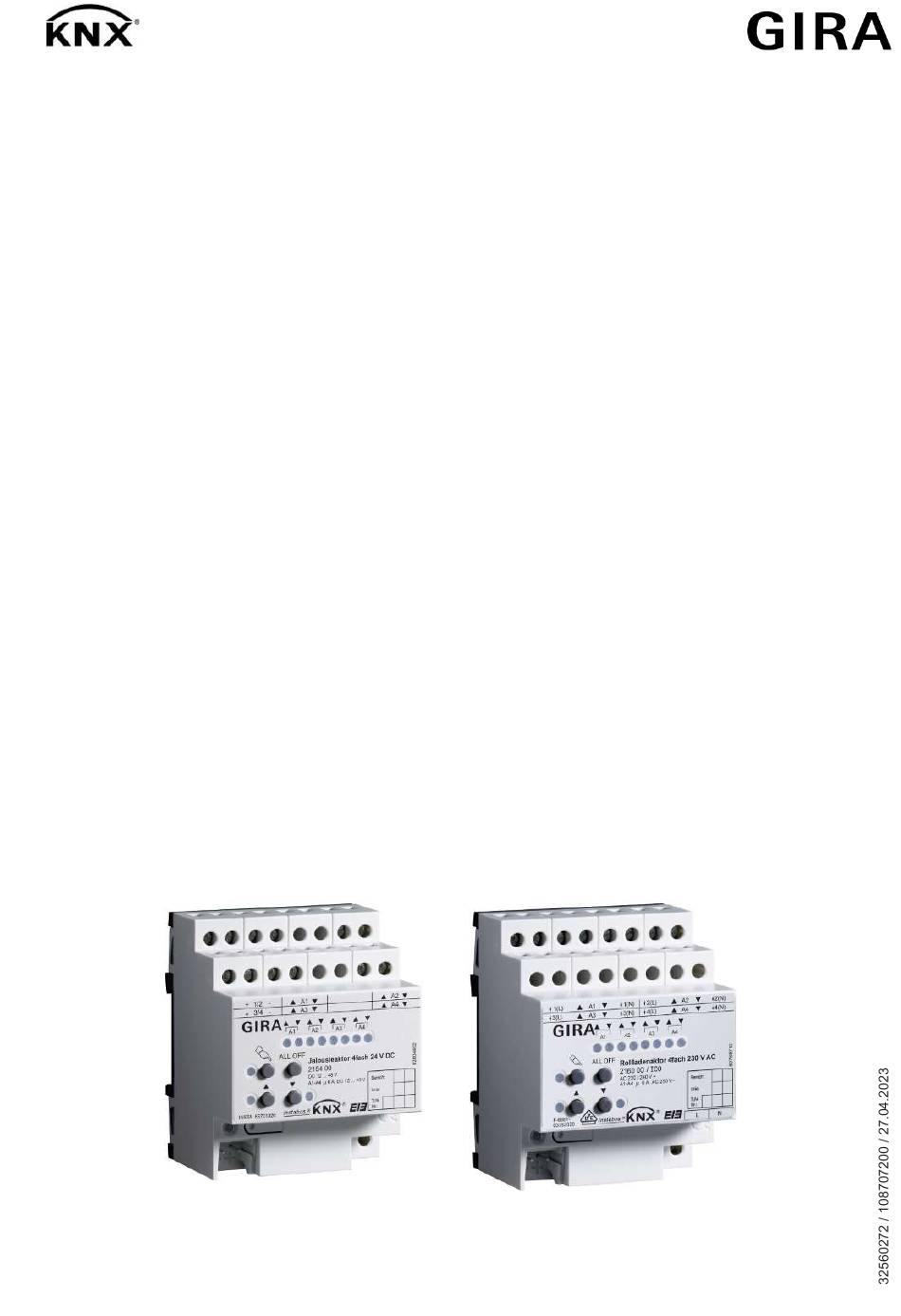

- Page 1 Operating instructions Blind actuator 4-gang 230 V AC Order no. 1039 00 Blind actuator 2-gang 230 V AC Order no. 2152 00 Blind actuator 4-gang 24 V DC Order no. 2154 00 Blind actuator 4-gang 230 V AC Order no. 2160 00 Blind actuator 8-gang 230 V AC Order no.
-
Page 2: Table Of Contents
Blind actuator Table of Contents Safety instructions ...................... 3 Device components ...................... 3 System information ...................... 4 Intended use ........................ 4 Product characteristics ..................... 4 Operation .......................... 5 Information for electrically skilled persons ................ 8 Mounting ........................ 8 Connect bus line .................... 8 DC 24 V Venetian blind actuator: electrical connection ......... -
Page 3: Safety Instructions
Blind actuator Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage are possible. Please read and follow the manual fully. Danger of electric shock. Always disconnect before carrying out work on the device or load. -
Page 4: System Information
Blind actuator Connection for Venetian blind motors System information System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite to proper understanding. The function of this device depends upon the software. -
Page 5: Operation
Blind actuator Operation Operating elements Figure 2 Status LEDs for outputs Button c – Manual operation LED c – on: continuous manual mode Button n: move hanging upwards / stop (10) LED n – on: hanging moves up, manual mode (11) Button o: move hanging downwards / stop (12) LED o –... - Page 6 Blind actuator After a bus failure and restoration the device switches to bus operation. After a power failure and restoration the device switches to bus operation. The manual mode can be disabled in ongoing operation via a bus telegram. Priorities –...
- Page 7 Blind actuator ￭ Press the c button for at least 5 seconds. LED c is off, bus operation is switched on. Depending on the programming, the hangings move to the position that is act- ive after the manual mode is switched off, e.g. to the forced position, safety or sun protection position.
-
Page 8: Information For Electrically Skilled Persons
Blind actuator When a disabled output is selected in manual mode, the corresponding status LEDs flash twice briefly at intervals. Re-enabling outputs The device is in permanent manual operation mode. ￭ Press the button c briefly as many times as necessary until the desired out- put is selected. -
Page 9: Dc 24 V Venetian Blind Actuator: Electrical Connection
Blind actuator ￭ Attach the cover cap to the KNX connection as protection against hazardous voltages. DC 24 V Venetian blind actuator: electrical connection Connecting the device Image 3: Connection example for DC Venetian blind actuator Only for DC motors 12...48 V. Observe the admissible load ratings. Terminals 1/2 supply power to the device electronics and outputs A1 and A2. -
Page 10: Shutter Actuators Ac 230 V And Roller Shutter Actuator: Electrical Connection
Blind actuator Drives for venting louvers or windows must be connected in such a way that they open in travel direction "UP " and close in travel direction "DOWN". Shutter actuators AC 230 V and roller shutter actuator: electrical connection Connecting the device without automatic operation time detection Image 4: Connection of bus and mains voltage supply ￭... - Page 11 Blind actuator Image 5: Motor connection without automatic operation time detection Connecting the device with automatic operation time detection Image 6: Motor connection with automatic operation time detection Not for roller shutter actuator. When appropriately programmed and wired, the Venetian blind actuator detects the operation time of the individual hangings and saves them.
-
Page 12: Commissioning
Blind actuator The N conductor connections for the individual outputs and mains voltage con- nection are not connected internally. If an output is energised without interruption for a prolonged time due to retrig- gering, the device may heat up excessively. Observe maximum duty cycle (see chapter "Technical data"). - Page 13 Blind actuator ￭ Measure upwards and downwards operation time of the hanging. ￭ Measure slat adjusting time between "Open" and "Closed". ￭ Enter the measured values in the parameter setting – Downwards travel in seconds and operation time extension in percent. In the case of automatic operation time detection, no measurement of the hanging operation times is performed.
-
Page 14: Technical Data
Blind actuator Upper end position has been reached: ￭ Move hangings to lower end position in manual mode. ￭ Move hangings to upper end position in manual mode. Operation times have been saved. The Venetian blind actuator saves the operation times permanently. Without saved operation times the Venetian blind actuator generates an in- ternal "Invalid position"... - Page 15 Blind actuator Order no. 2152 00 72 mm / 4 HP Order no. 1039 00 72 mm / 4 HP Order no. 2161 00 144 mm / 8 HP Weight Order no. 2154 00 approx. 300 g Order no. 2160 00 approx.
-
Page 16: Troubleshooting
Blind actuator Order no. 2160 00 max. 20% of the blind/shutter travelling time Order no. 2152 00 max. 20% of the blind/shutter travelling time Order no. 1039 00 max. 20% of the blind/shutter travelling time Order no. 2161 00 max. 20% of the blind/shutter travelling time Connections supply and load Connection mode... - Page 17 Blind actuator None of the outputs can be operated Cause 1: All of the outputs are disabled. Cancel disabling. Cause 2: Manual mode active. Deactivate manual mode (switch off continuous manual mode). Cause 3: Application software missing or faulty. Check programming and correct. Cause 4: Application software has been stopped, programming LED is flashing.
-
Page 18: Warranty
Please submit or send faulty devices postage paid together with an error de- scription to your responsible salesperson (specialist trade/installation company/elec- trical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
