Summary of Contents for Gira One 5061 00

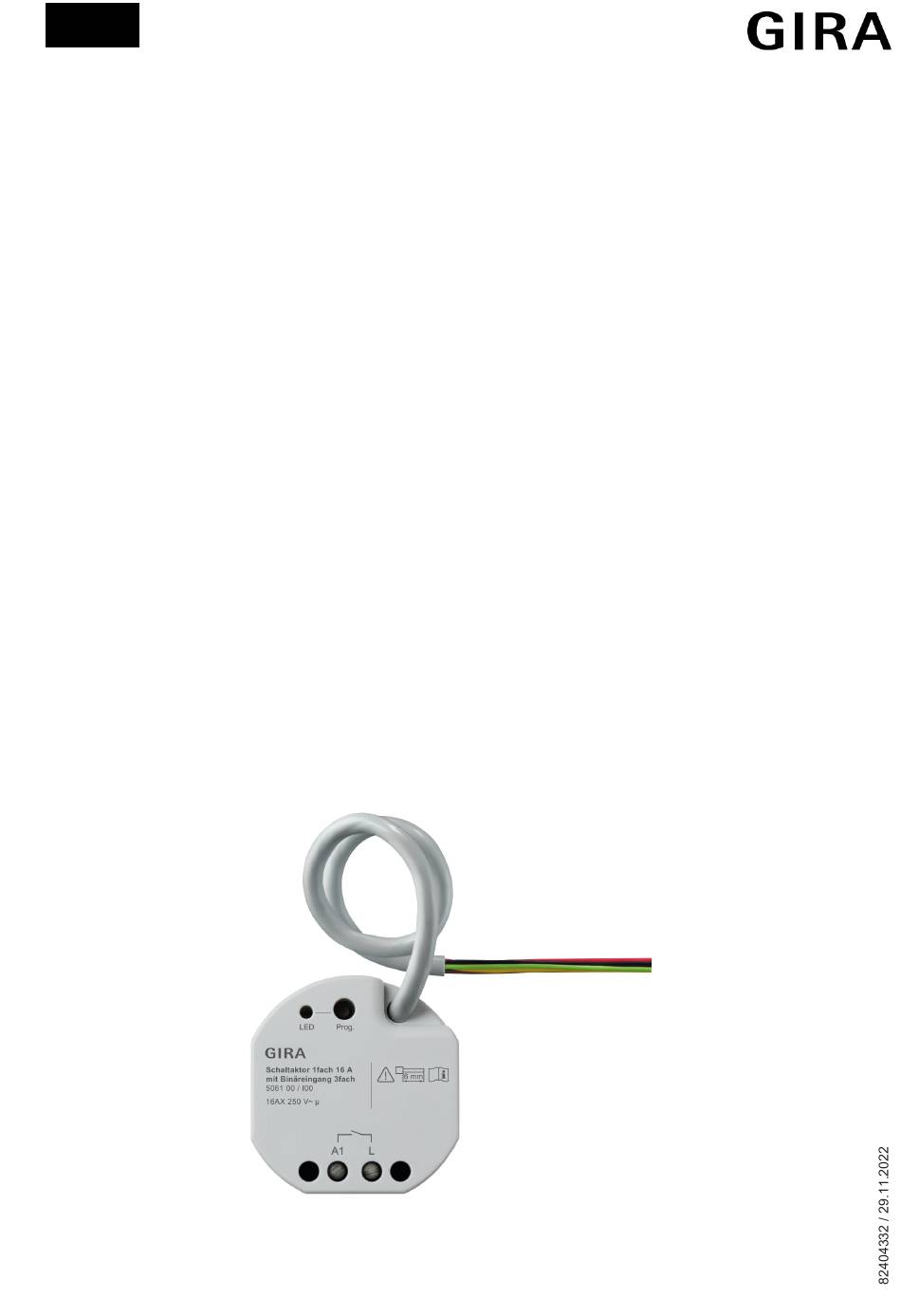

- Page 1 Operating instructions Switching actuator, 1-gang 16 A with binary input, 3-gang Order no. 5061 00...
-
Page 2: Table Of Contents
Switching actuator, 1-gang 16 A with binary input, 3-gang Table of Contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 4 Information for electrically skilled persons ................ 6 Mounting and electrical connection................ 6 Commissioning ...................... 8 Technical data ......................... 10 Accessories ........................ 11 Parameter list ........................ 11 Warranty.......................... 13 82404332 29.11.2022... -
Page 3: Safety Instructions
Switching actuator, 1-gang 16 A with binary input, 3-gang Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Device is not suitable for disconnection from supply voltage. -
Page 4: Function
It can be operated via Gira One switches, by app from home or securely from a remote location. Electrically skilled persons can maintain the Gira One project re- motely free of charge. - Page 5 Mounting in appliance box with dimensions according to DIN 49073 Product characteristics – Output can be operated via the Gira One system or extension inputs – Three extension inputs for connecting potential-free contacts or dew/leakage sensors. NTC temperature sensor can be connected to input 3.
-
Page 6: Information For Electrically Skilled Persons
Switching actuator, 1-gang 16 A with binary input, 3-gang – Switching contact indicator for displaying a contact state in the Smart Home app. – Configurable switching inputs that can be parameterised independently. – Acquisition and calibration of temperature values via remote sensors (see ac- cessories) at input 3. - Page 7 Switching actuator, 1-gang 16 A with binary input, 3-gang Image 3: Mounting example in electronic appliance box with partition wall, series push-button and NTC temperature sensor Appliance box Partition potential-free contacts (e.g. series push-button) NTC temperature sensor (optional) Image 4: Cable spacing Minimum spacing between the mains voltage and bus/extension wires: 4 mm (see figure 4) Image 5: Connection of load...
-
Page 8: Commissioning
Switch Function closed open The device is commissioned with the Gira Project Assistant (GPA) version 5 or higher. Safe-state mode The safe-state mode stops the execution of the program. Only the system software of the device is still functional. Diagnosis functions and pro- gramming of the device are possible. - Page 9 Switching actuator, 1-gang 16 A with binary input, 3-gang Activating safe-state mode ￭ Switch off the bus voltage or disconnect the device from the bus. ￭ Wait about 10 s. ￭ Press and hold down the programming button. ￭ Switch on the bus voltage or connect the bus again at the device. Release the programming button only after the programming LED starts flashing slowly.
-
Page 10: Technical Data
Switching actuator, 1-gang 16 A with binary input, 3-gang Technical data Rated voltage DC 21 ... 32 V SELV Current consumption 5 ... 18 mA Connection mode Device connection terminal on control cable Outputs Connection mode Screw terminals Switching voltage AC 250 V ~ Switching current 16 AX... -
Page 11: Accessories
Switching actuator, 1-gang 16 A with binary input, 3-gang Storage/transport temperature -25 ... +70 °C Dimensions (W × H × D) 48 x 50 x 28 mm Inputs Control cable (preterminated) YY6x0.6 Input type Potential-free Number Total length of extension device cable max. - Page 12 Switching actuator, 1-gang 16 A with binary input, 3-gang Switch-on delay 0 ... 3599 s (0 ... 59:59 min) This parameter is used for setting the duration of the switch-on delay. After receipt of an ON-telegram, the time that can be configured here is started. The lamp is switched on after the set time has elapsed.
-
Page 13: Warranty
The warranty is provided in accordance with statutory requirements via the specialist trade. Please submit or send faulty devices postage paid together with an error de- scription to your responsible salesperson (specialist trade/installation company/elec- trical specialist trade). They will forward the devices to the Gira Service Center. 82404332 29.11.2022... - Page 14 Switching actuator, 1-gang 16 A with binary input, 3-gang Gira Giersiepen GmbH & Co. KG Elektro-Installations- Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 82404332 29.11.2022...
