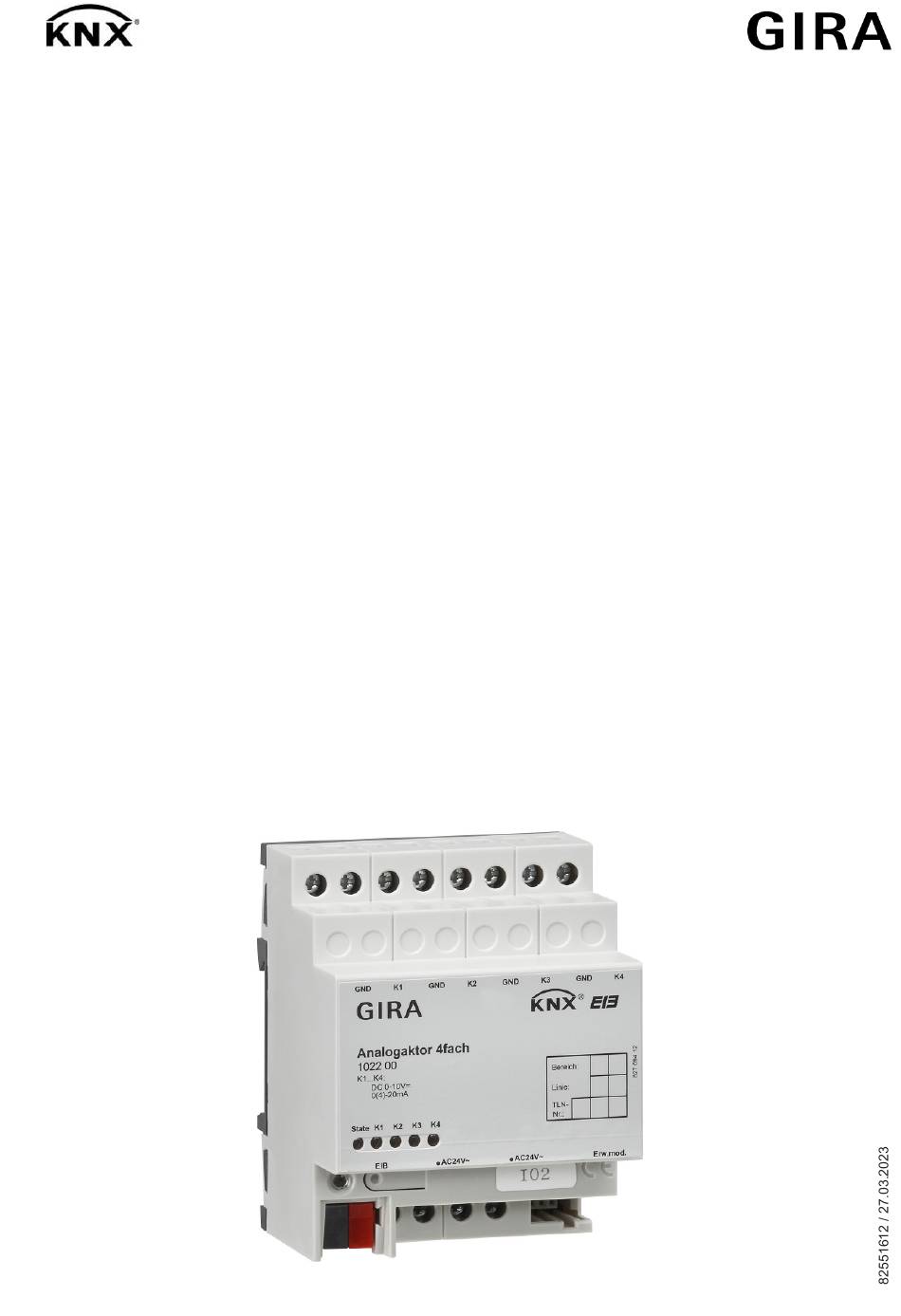

  • Page 1 Operating instructions Analogue actuator, 4-gang Order no. 1022 00...
  • Page 2: Table Of Contents

    Analogue actuator, 4-gang Table of Contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 4 Information for electrically skilled persons ................ 5 Mounting and electrical connection................  5 Commissioning ......................  6 Technical data ........................ 7 Accessories ........................ 8 Warranty.......................... 8 82551612 27.03.2023 2 / 8...
  • Page 3: Safety Instructions

    Analogue actuator, 4-gang Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Always disconnect device before working on it. At the same time, take into account all circuit breakers that supply dangerous voltage to the device.
  • Page 4: Function

    Analogue actuator, 4-gang Yellow status LED, analogue outputs A1 ... A4 Output signal is equal to zero Output signal is greater than zero Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
  • Page 5: Information For Electrically Skilled Persons

    Analogue actuator, 4-gang Information for electrically skilled persons Mounting and electrical connection DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. Cover up live parts in the installation environment. Mount the device ■ Mount device on DIN rail. Output terminals must be at the top. Electrical connection CAUTION! Device fault if connected to impermissible actuators or the actuators are connected...
  • Page 6: Commissioning

    Analogue actuator, 4-gang Image 3: Connection example ■ Connect the bus line to the connection terminal (6) (see figure 1). ■ External 24 V power supply, (see figure 3); connect to the connection terminal (7) (see figure 1). The connection terminals for the external 24 V power supply are provided double and are internally connected with each other;...
  • Page 7: Technical Data

    Analogue actuator, 4-gang The status LED (2) flashes green slowly. ■ Assign physical address. The programming LED (4) goes out. ■ Write the physical address on the device label. ■ Load the project onto the device. Status LED (2) lights up green; the project is loaded. Configure analogue outputs The analogue output signals enable the actuators of the heating, ventilation and air conditioning units to adapt their output values based on bus information and to parti-...
  • Page 8: Accessories

    Please submit or send faulty devices postage paid together with an error de- scription to your responsible salesperson (specialist trade/installation company/elec- trical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
