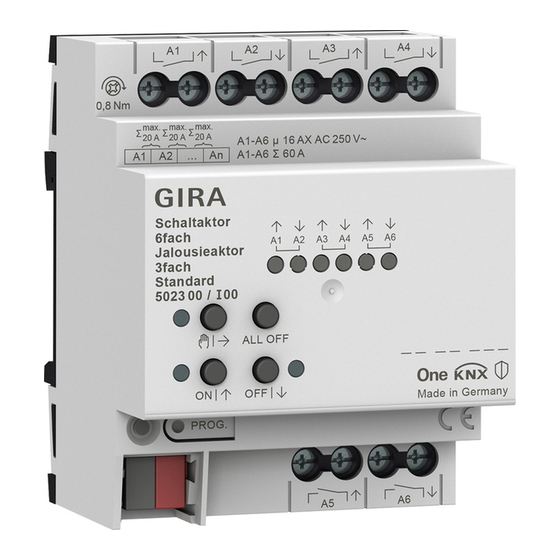

- Page 1 Operating instructions Switching actuator, 6-gang / blind actuator, 3-gang Standard Order no. 5023 00 Switching actuator, 16-gang / blind actuator, 8-gang Standard Order no. 5028 00 Switching actuator, 24-gang / blind actuator, 12-gang Standard Order no. 5030 00...
-
Page 2: Table Of Contents
Switching actuator / blind actuator 16 A Standard Table of Contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 4 Operation .......................... 5 Information for electrically skilled persons ................ 9 Mounting and electrical connection................ 9 Commissioning .................... 11 Technical data ......................... 12 Parameter list ........................ 13 Warranty.......................... 16 82402632 15.12.2022... -
Page 3: Safety Instructions
Switching actuator / blind actuator 16 A Standard Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock on the SELV/PELV installation. Do not connect loads for mains voltage and SELV/PELV together to the device. -
Page 4: Function
It can be operated via Gira One switches, by app from home or securely from a remote location. Electrically skilled persons can maintain the Gira One project re- motely free of charge. -
Page 5: Operation
Switching actuator / blind actuator 16 A Standard – Door opener function: The time for closing the relay can be configured. Characteristics Venetian blinds operation – Suitable for AC motors 110...230 V – Control of blinds with slats, shutters, awnings, roof windows or roof domes. –... - Page 6 Switching actuator / blind actuator 16 A Standard LED ǃ ON: Continuous manual mode active/Flashing: Temporary manual mode active LED DŽ ON: Relay outputs closed, manual mode active Button DŽ Short: Switch on, adjust slats or stop Long: Move hanging upwards (10) Button Dž...
- Page 7 Switching actuator / blind actuator 16 A Standard After 5 s without a button actuation, the actuator returns automatically to bus operation. Switching off temporary manual operation mode The device is in short-term manual mode. ￭ No button-press for 5 s. - or - ￭...
- Page 8 Switching actuator / blind actuator 16 A Standard ￭ Press button ǃ (6) repeatedly until LED A1... (4) of the desired output or output pair flashes. ￭ Press button DŽ (9) or Dž (10). Short: Switch on/off, drive stop. Long: Move blind/shutter upwards/downwards. LED DŽ...
-
Page 9: Information For Electrically Skilled Persons
Switching actuator / blind actuator 16 A Standard ￭ Press button ǃ (1) repeatedly until LED A1... (8) of the desired output or output pair flashes. ￭ Press the ǃ (1) and DŽ (4) and Dž (5) buttons simultaneously for approx. - Page 10 Switching actuator / blind actuator 16 A Standard Connecting the device Image 3: Device connection (connection example) ￭ Connect bus line with device connection terminal observing the correct polar- ity. ￭ Attach the cover cap to the bus connection as protection against hazardous voltages.
-
Page 11: Commissioning
Switch on load circuits. Delivery state: The outputs can be operated with manual control. Outputs are set as Venetian blind outputs. The device is commissioned with the Gira Project Assistant (GPA) version 5 or higher. Safe-state mode The safe-state mode stops the execution of the program. -
Page 12: Technical Data
Switching actuator / blind actuator 16 A Standard ￭ Press and hold down the programming button for > 5 s. The programming LED flashes quickly. The device performs a master reset, restarts and is ready for operation again after approx. 5 s. Technical data Rated voltage DC 21 ... -
Page 13: Parameter List
Switching actuator / blind actuator 16 A Standard Weight Order no. 5023 00 approx. 230 g Order no. 5028 00 approx. 500 g Order no. 5030 00 approx. 740 g Clampable conductor cross-section Single stranded 0.5 ... 4 mm² Finely stranded without conductor sleeve 0.5 ... - Page 14 Switching actuator / blind actuator 16 A Standard Switch-off delay 0 ... 3599 s (0 ... 59:59 min) This parameter is used for setting the duration of the switch-off delay. After receipt of an OFF-telegram, the time that can be configured here is started. The lamp is switched off after the set time has elapsed.
- Page 15 Switching actuator / blind actuator 16 A Standard Slats travelling time 0 ... 1199 s (0 ... 19:59 min) (for Venetian blinds only) This parameter defines the travel time of the slats. The time needed for a complete movement from the completely open slat position into the completely closed slat po- sition (travel movement DOWN) must be determined.
-
Page 16: Warranty
Please submit or send faulty devices postage paid together with an error de- scription to your responsible salesperson (specialist trade/installation company/elec- trical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG... - Page 17 Switching actuator / blind actuator 16 A Standard Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 82402632 15.12.2022 17 / 17...
