Summary of Contents for Gira One 5065 00

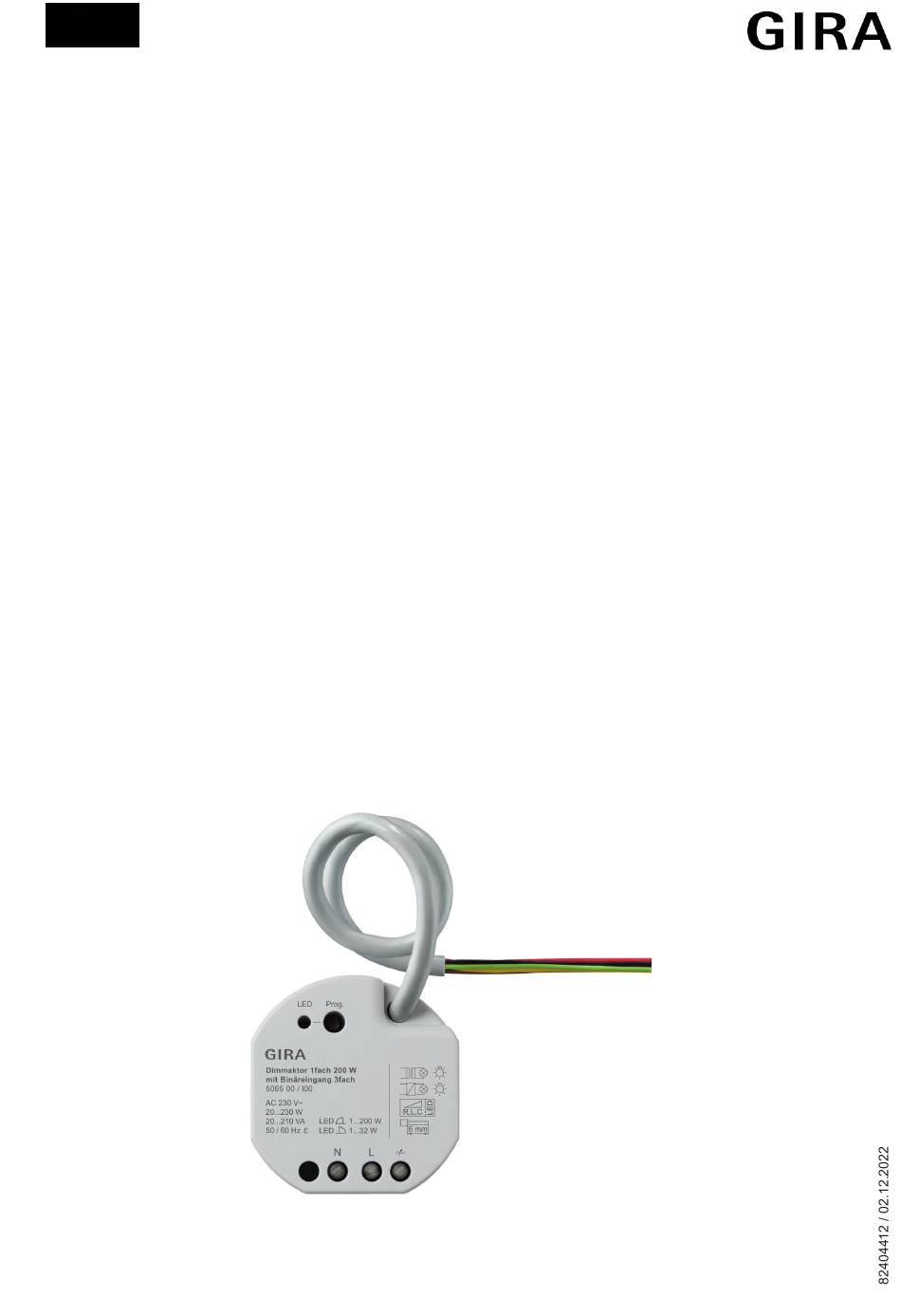

- Page 1 Operating instructions Dimming actuator 1-gang 200 W with binary input, 3-gang Order no. 5065 00...
-
Page 2: Table Of Contents
Dimming actuator 1-gang 200 W with binary input, 3-gang Table of Contents Safety instructions ...................... 3 Device components...................... 4 Function .......................... 5 Information for electrically skilled persons ................ 7 Mounting and electrical connection................ 7 Commissioning ...................... 9 Technical data ......................... 10 Troubleshooting ...................... 12 Accessories ........................ 14 Parameter list ........................ 15 Warranty.......................... 19 82404412... -
Page 3: Safety Instructions
Dimming actuator 1-gang 200 W with binary input, 3-gang Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Device is not suitable for disconnection from supply voltage because mains potential even is applied on the load when the output is switched off. -
Page 4: Device Components

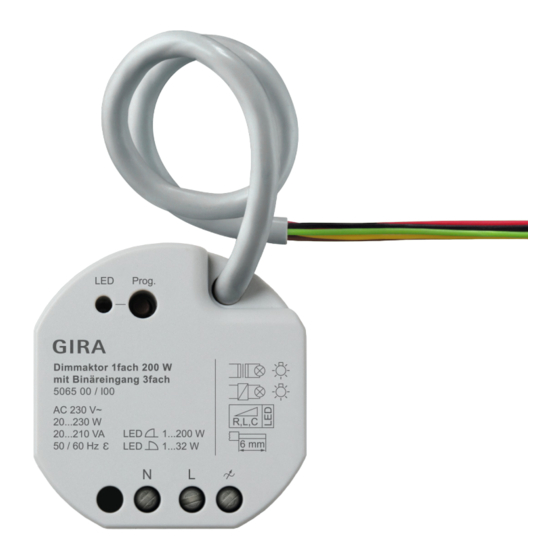

Dimming actuator 1-gang 200 W with binary input, 3-gang Device components Image 1: Device components Programming LED Programming button Control cable (bus connection and extension inputs) Load connection (dimming output) Image 2: Connection assignment of control cable (example) red (RD) KNX / One + black (BK) KNX / One - green (GN) -
Page 5: Function
It can be operated via Gira One switches, by app from home or securely from a remote location. Electrically skilled persons can maintain the Gira One project re- motely free of charge. - Page 6 Dimming actuator 1-gang 200 W with binary input, 3-gang – Programming and commissioning with the Gira Project Assistant (GPA), ver- sion 5 or higher. – Updating via the Gira Project Assistant (GPA). – Encrypted data transmission between the Gira One devices.
-
Page 7: Information For Electrically Skilled Persons
Dimming actuator 1-gang 200 W with binary input, 3-gang Information for electrically skilled persons DANGER! Mortal danger of electric shock. Disconnect the device. Cover up live parts. Mounting and electrical connection DANGER! When connecting the bus/extensions and mains voltage wires in a shared appliance box, the bus line may come into contact with the mains voltage. - Page 8 Dimming actuator 1-gang 200 W with binary input, 3-gang Image 3: Mounting example in electronic appliance box with partition wall, series push-button and NTC temperature sensor Appliance box Partition potential-free contacts (e.g. series push-button) NTC temperature sensor (optional) Image 4: Cable spacing Minimum spacing between the mains voltage and bus/extension wires: 4 mm (see figure 4) Image 5: Connection of load...
-
Page 9: Commissioning
Switch off Press for a long time (> Reduce brightness 0.4 s) The device is commissioned with the Gira Project Assistant (GPA) version 5 or higher. Safe-state mode The safe-state mode stops the execution of the program. Only the system software of the device is still functional. Diagnosis functions and pro- gramming of the device are possible. -
Page 10: Technical Data
Dimming actuator 1-gang 200 W with binary input, 3-gang Deactivating safe-state mode ￭ Switch off the bus voltage (wait approx. 10 s) or carry out programming. Master reset The master reset restores the basic device settings (firmware remains in place). The device must then be recommissioned with the GPA. - Page 11 Dimming actuator 1-gang 200 W with binary input, 3-gang Image 6: Connected load LED lamps Image 7: Connected load conventional lamps Power reduction when installed in wooden or dry construction walls -15% when installed in multiple combinations -20% Clampable conductor cross-section Single stranded 0.5 ...
-
Page 12: Troubleshooting
Dimming actuator 1-gang 200 W with binary input, 3-gang Ambient conditions Ambient temperature -5 ... +45 °C Storage/transport temperature -25 ... +70 °C Dimensions (W × H × D) 48 x 50 x 28 mm Inputs Control cable (preterminated) YY6x0.6 Input type Potential-free Number... - Page 13 Dimming actuator 1-gang 200 W with binary input, 3-gang Output has switched off. Cause 1: Overheating protection has tripped. – Disconnect output from mains, switch off associated circuit breakers. – LED (trailing edge phase control): Reduce the connected load. Exchange lamps for another type.
-
Page 14: Accessories
Dimming actuator 1-gang 200 W with binary input, 3-gang LED lamp is dimly lit when dimmer is switched off Cause: LED lamp is not optimally suited for this dimmer. Use a compensation module, see accessories. Use another type of LED lamp or an LED lamp of another manufacturer. Accessories Remote sensor (NTC temperature sensor) 1493 00... -
Page 15: Parameter List
Dimming actuator 1-gang 200 W with binary input, 3-gang Parameter list Parameters that can be set via the GPA: Output Load type universal (with automatic calibration pro- cedure) electr. transformer (capacitive / trailing edge phase control) conv. transformer (inductive / leading edge phase control) LED (trailing edge phase control) LED (leading edge phase control) - Page 16 Dimming actuator 1-gang 200 W with binary input, 3-gang Minimum brightness Level 1 (darker) Level 2 Level 7 Level 8 (brighter) The step value set here is a gauge for the minimum adjustable residual phase angle of the output signal. The value set here cannot be undershot in any switched-on operating state of the dimming channel, i.e.
- Page 17 Dimming actuator 1-gang 200 W with binary input, 3-gang Switch-on delay 0 ... 3599 s (0 ... 59:59 min) This parameter is used for setting the duration of the switch-on delay. After receipt of an ON-telegram, the time that can be configured here is started. The lamp is switched on after the set time has elapsed.
- Page 18 Dimming actuator 1-gang 200 W with binary input, 3-gang Dimming brightness value Here you can set the brightness value that is to apply during the pre-warning time. During the pre-warning time, the dimming channel is set to the configured brightness value.
-
Page 19: Warranty
Please submit or send faulty devices postage paid together with an error de- scription to your responsible salesperson (specialist trade/installation company/elec- trical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
