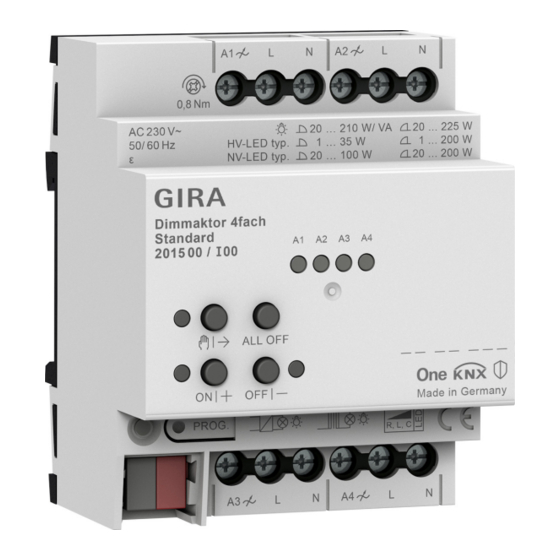

- Page 1 Operating instructions Dimming actuator, 4-gang Standard Order no. 2015 00...
-
Page 2: Table Of Contents
Dimming actuator, 4-gang Standard Table of Contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 4 Operation .......................... 5 Information for electrically skilled persons ................ 7 Mounting and electrical connection................ 7 Commissioning ...................... 9 Technical data ........................ 9 Troubleshooting ...................... 11 Accessories ........................ 13 Parameter list ........................ 13 10 Warranty.......................... 16 82402732 07.06.2021... -
Page 3: Safety Instructions
Dimming actuator, 4-gang Standard Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Always disconnect before carrying out work on the device or load. -
Page 4: Function
It can be operated via Gira One switches, by app from home or securely from a remote location. Electrically skilled persons can maintain the Gira One project re- motely free of charge. -
Page 5: Operation
Dimming actuator, 4-gang Standard Dimming operation characteristics – Minimum and maximum brightness can be set. – Switching on to last brightness value or to permanently set switch-on bright- ness. – Setting of a switch-on or switch-off delay. – Staircase function for which a pre-warning time and a pre-warning brightness can optionally be set. - Page 6 Dimming actuator, 4-gang Standard Operating modes – Bus operation: operation via push-button sensors or other bus devices – Temporary manual control: manual control locally with keypad, automatic re- turn to bus control – Continuous manual mode: Exclusively manual operation on the device No bus operation is possible in manual mode.
-
Page 7: Information For Electrically Skilled Persons
Dimming actuator, 4-gang Standard Continuous manual mode is switched off. Bus operation is switched on. When switching off manual operation, the outputs, depending on the program- ming, switch to the active position. Operating the outputs ￭ Press the button ǃ (6) briefly as many times as necessary until the desired output is selected. - Page 8 Dimming actuator, 4-gang Standard ￭ Maintain a distance of 18 mm, 1 HP when operating multiple dimmers or power units within the same control cabinet. ￭ Mount device on DIN rail. Connecting the device ￭ Connect bus line with device connection terminal observing the correct polar- ity.
-
Page 9: Commissioning
￭ Connect the lamp loads according to the connection example. Commissioning Commissioning the device The device is commissioned with the Gira Project Assistant (GPA) version 5 or higher. Safe-state mode The safe-state mode stops the execution of the program. Only the system software of the device is still functional. Diagnosis functions and pro- gramming of the device are possible. - Page 10 Dimming actuator, 4-gang Standard Rated voltage AC 110 ... 230 V ~ Mains frequency 50 / 60 Hz Power loss max. 7 W Standby power approx. 0.16 W per channel Ambient temperature -5 ... +45 °C Storage/transport temperature -25 ... +70 °C Connected load per channel depends on the connected lamps and the set load type: (see figure 4), (see figure 5) Load type parameter...
-
Page 11: Troubleshooting
Dimming actuator, 4-gang Standard Image 5: conventional lamp loads Capacitive-inductive mixed load is not permitted. Power boosters See power booster instructions Connection Single stranded 0.5 ... 4 mm² Finely stranded without conductor sleeve 0.5 ... 4 mm² Finely stranded with conductor sleeve 0.5 ... - Page 12 Dimming actuator, 4-gang Standard For LV-LED: Check the lamp operating device and replace as necessary. With the "Universal" setting: Define the dimming principle manually. Connected HV-LED lamps or compact fluorescent lamps in the lowest dimming position are too bright; dimming range is too small Cause 1: The set minimum brightness is too high.
-
Page 13: Accessories
Dimming actuator, 4-gang Standard Check load, replace lamp. For inductive transformers, check primary fuse and replace if necessary. None of the outputs can be operated. Cause: Manual mode active. Deactivate manual mode (switch off continuous manual mode). All outputs off and not possible to switch on Cause 1: bus voltage failure. - Page 14 Dimming actuator, 4-gang Standard Load type universal (with automatic calibration pro- cedure) electr. transformer (capacitive / trailing edge phase control) conv. transformer (inductive / leading edge phase control) LED (trailing edge phase control) LED (leading edge phase control) The dimming principle of the dimming channel is specified here. –...
- Page 15 Dimming actuator, 4-gang Standard Switch-on brightness Fixed switch-on brightness Last brightness value Here you can specify the brightness value with which the lamp is to be switched on by pressing the button briefly: – Fixed switch-on brightness In this case, you can select a fixed value (1 - 100%) in the "Switch-on bright- ness value"...
-
Page 16: Warranty
Please submit or send faulty devices postage paid together with an error de- scription to your responsible salesperson (specialist trade/installation company/elec- trical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG... - Page 17 Dimming actuator, 4-gang Standard Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 82402732 07.06.2021 17 / 17...
