HunterDouglas PowerView Gen 3 Automation Manual page 17

Satellite-Mounted Rechargeable Battery Wand

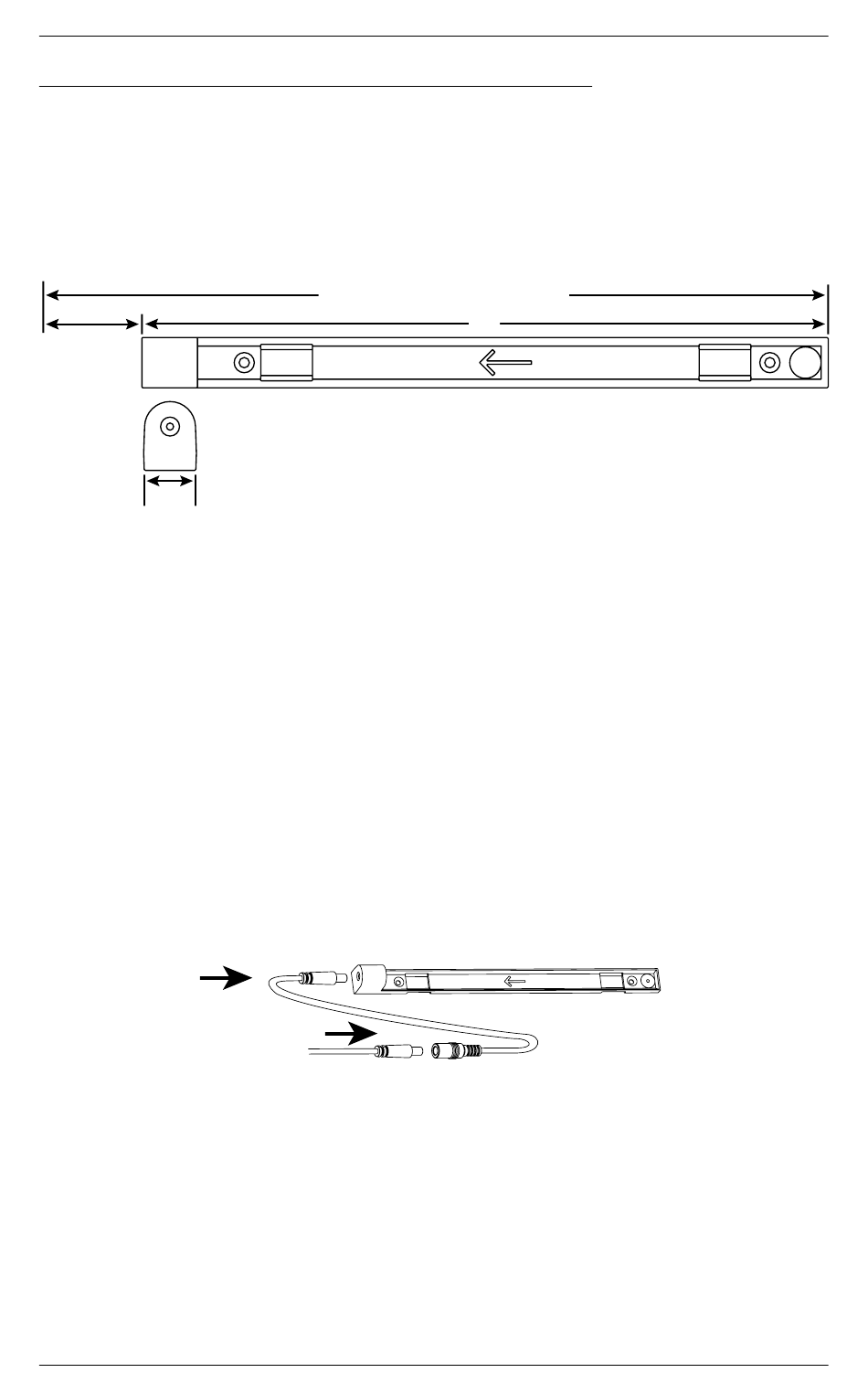

Install the Rechargeable Battery Mount
Decide where you want to install the rechargeable battery mount. This may be mounted
■
behind the headrail, or in any desired location near the window covering. A satellite
battery mount may be installed in any orientation.
Make sure the provided cable is long enough to connect the satellite battery mount
➤
and the shade.
2"
Power
Socket
End
1"
CAUTION: The rear of the battery mount must be flush against a flat mounting surface.
Do not install brackets on curved molding.
Mark the screw holes.
■
Drill the screw holes using a
■
Attach the battery mount using the screws provided.
■
CAUTION: Only use the screws provided with the battery mount, designed so that the
screws will install flush with the mount. Protrusion of the screws could result in either the
battery wand not attaching properly causing a failure to connect, or the wand falling out
of the mount. Do not over-tighten.
Connect the power cable from the motor side into the power socket on the rechargeable
■
battery mount.
NOTE: With longer extension cables, wire retainers (not supplied) are recommended to
secure the cable.
Power Cable
15" Minimum Mounting Length
Allow 2" at power socket end for the extension cable jack.
Minimum flat mounting area = 15" x 1"
⁄ " drill bit.
3
32
Battery Mount
from Shade
13"
Extension
Cable
(If Needed)
INSTALLATION
15
