Step 2: Mount The Battery Wand (If Applicable) - HunterDouglas PowerView Gen 3 Automation Manual

INSTALLATION

STEP 2: Mount the Battery Wand (If Applicable)

Refer to the appropriate page based on your order.
■
For a battery wand, see below.
➤
For a headrail-mounted rechargeable battery wand, see page 11.
➤
For any other power options, the shade is installed first, see page 12.
➤
Battery Wand

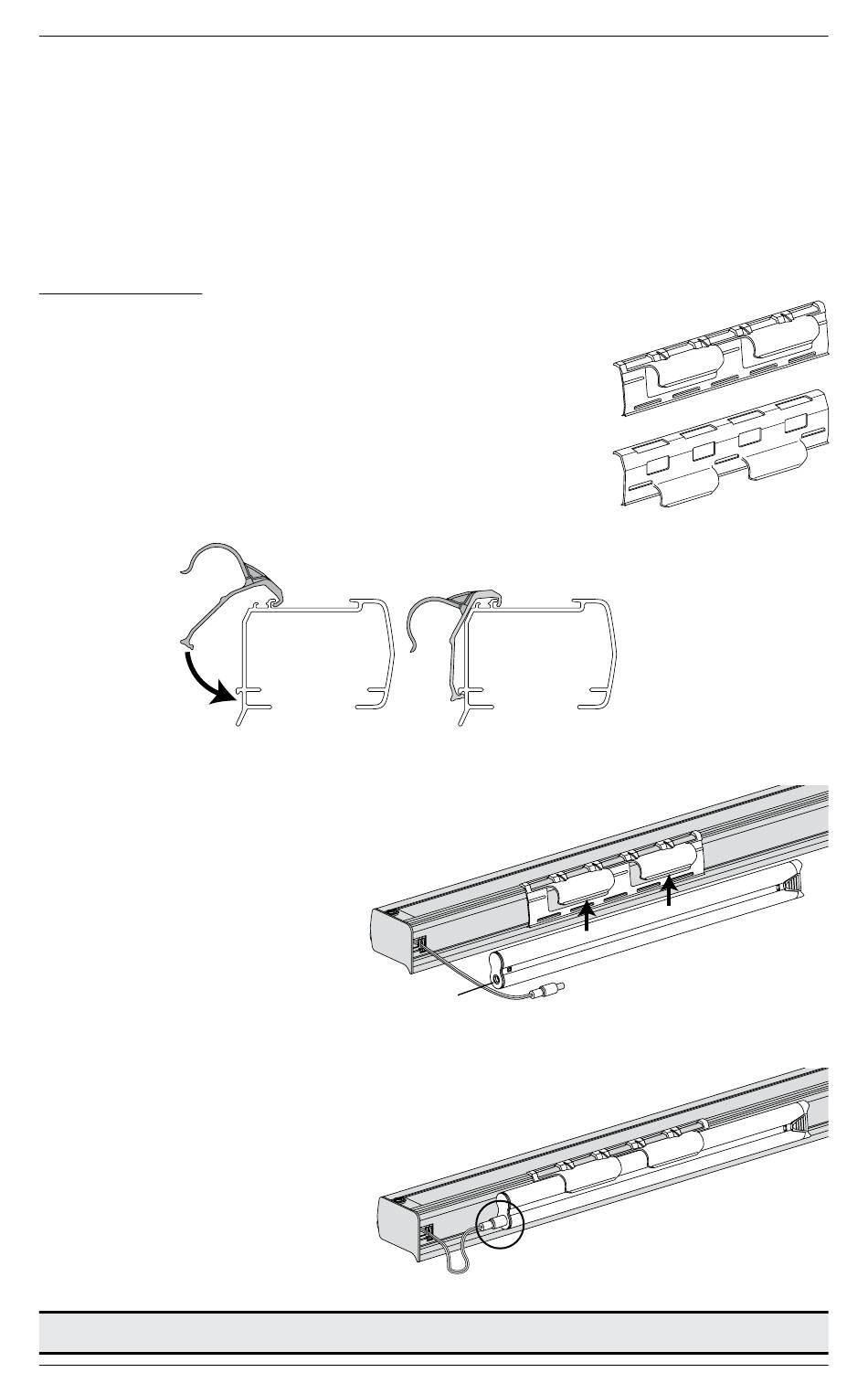

Install the Battery Wand Clips
Hook the battery wand clip onto the back channel
■
of the headrail.
IMPORTANT: Position the clip so that the battery
wand will be between installation brackets.
Rotate the clip down until it snaps into place.
■
Mount the Battery Wand into the Battery Wand Clip
Align the battery wand with its socket
■
toward the right-side motor end cap.
Push the battery wand straight up
■
into the battery wand clip until it
snaps into place. Check to make
sure the battery wand is secure.
CAUTION: Be sure the cable
does not become pinched by the
battery wand clip during installation. Damage or overheating of components could result.
Plug the Power Cable into the Battery Wand
On the back of the headrail, connect
■
the power cable (coming from the shade)
into the socket on the battery wand.
Proceed to "STEP 3: Install the Shade" on page 12.
10
Battery Wand
Clip
Socket
Battery Wand Clips
High Mount
(Standard)
Low Mount
(Optional)
Front of
Headrail
Shown:
High Mount Battery Wand Bracket
