Midea CCM-270A/WS Service Manual page 33

CCM-270A/WS
After you finish this IP configuration, try to visit the website of the CCM-270A/WS by typing the IP address
(192.168.100.40:8000) in any of the web browser (preferably Google Chrome version 52.0 or above) if the website of
CCM-270A/WS is getting opened, it means that the IP configuration setting is successful.

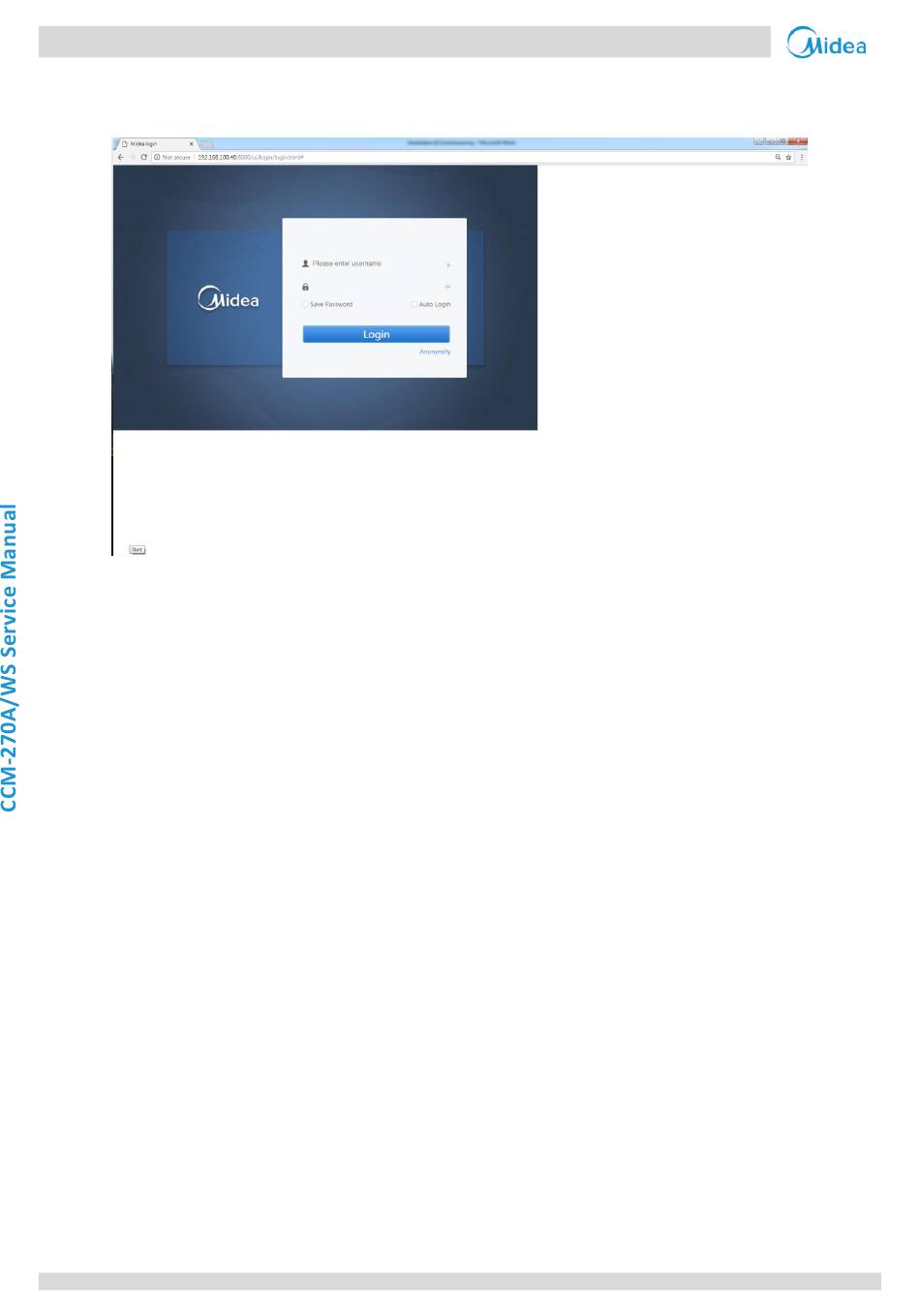

(Midea Login page would open up in the web browser after successful IP settings)
2. Add Multiple IP Address:
You need to first configure a static IP address before you can add multiple IPs. The steps to configure the static IP are
as follows:
1) Check local IP address
Open TCP/IP properties . If the option "Use the following IP address:" is selected, and there is an IP address listed here
which means that the local IP is a static IP address. Otherwise, it is a dynamic IP address and you need to configure a
static IP address.
2) Configure static IP address
Open the Run command box from the Start Menu, as shown in the following figure:
32 201807
