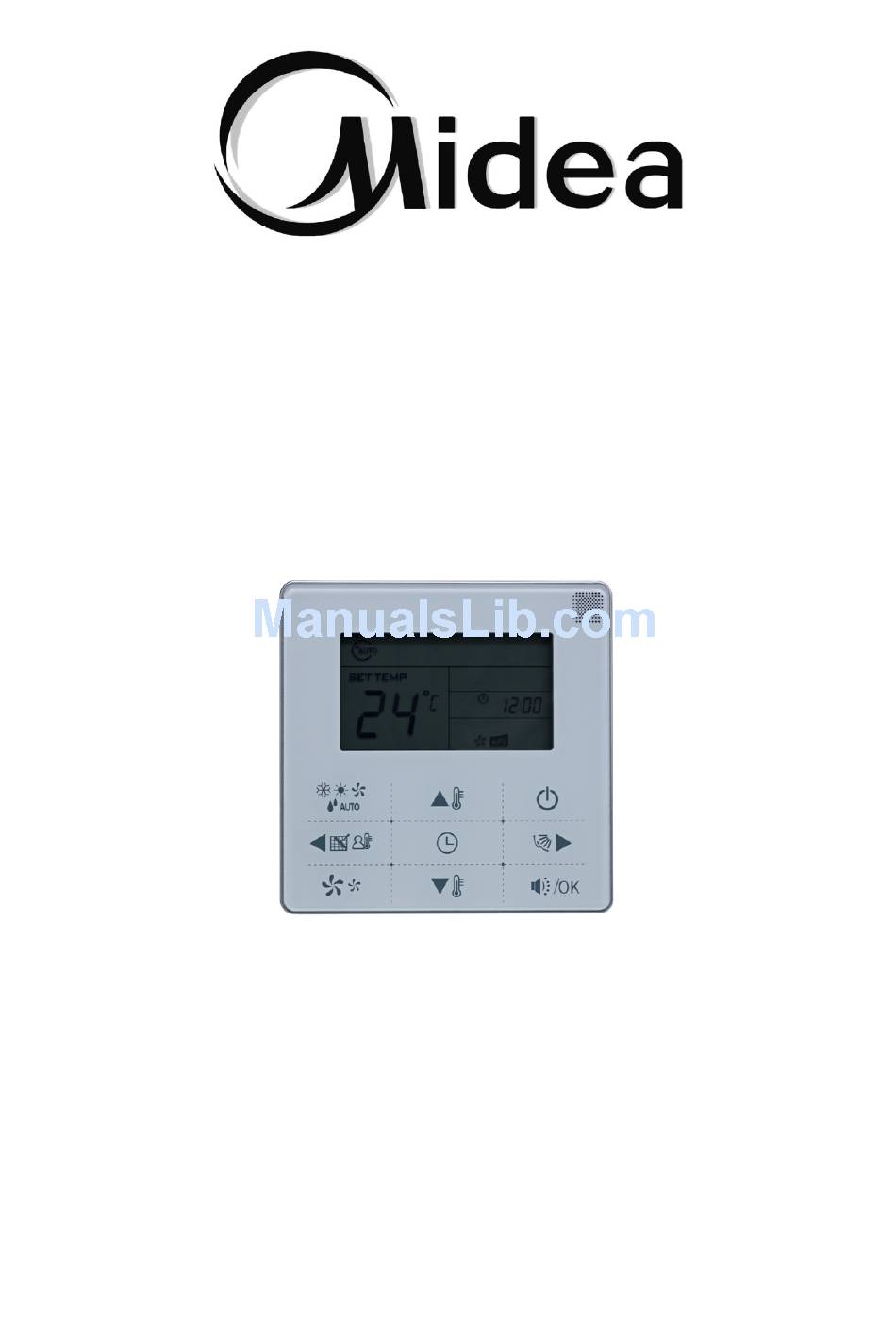

- Page 1 Operation Manual Touch- style key wired controller KJR-29B/BKE-E...
-
Page 3: Table Of Contents
OPERATION MANUAL KJR-29B/BKE-E CONTENTS 1. Safety Precautions ................5 2. Model and Specification ..............6 3. Buttons And Their Functions ............... 7 4. Installation ..................10 5. Wiring....................11... -
Page 4: Safety Precautions
OPERATION MANUAL KJR-29B/BKE-E 1. Precautions The following contents are stated on the product and the operation manual, including usage, precautions against personal harm and property loss, and the methods of using the product correctly and safely. After fully understanding the following contents (identifiers and icons), read the text body and observe the following rules. -
Page 5: Model And Specification
2. Set the mode through buttons. 3. Indoor setting temperature range: 17°C ~30°C. 4. LCD (Liquid Crystal Display). 5. Touch-style key Function summarize KJR-29B/BKE-E is the touch-style key wired controller. New function Basic function Air filter cleaning reminding function ON and OFF the air-conditioner... -
Page 6: Buttons And Their Functions
OPERATION MANUAL KJR-29B/BKE-E 3. Buttons And Their Functions (1) Remote signal receiving function There is the signal receiver for wireless remote controller on the KJR-29B.You can use the wireless remote controller to control the air-conditioner through the wired remote controller when the system has been powered on. - Page 7 OPERATION MANUAL KJR-29B/BKE-E (5)Temperature setting Under AUTO, COOL, DRY, HEAT modes, press the Temp adjust Up/Down buttons to set the temperature, the adjusting range is 17℃~30℃ (or 62℉~88℉). The setting temperature cannot be adjusted under FAN mode. (6)Timer on and Timer off setting...
- Page 8 OPERATION MANUAL KJR-29B/BKE-E (10) Air filter cleaning reminding function The wired controller records the total running time of the indoor unit, when the accumulated running time reaches the pre-set value, air filter cleaning reminding icon will be lighted up, to remind that the air filter of the indoor unit needs to be cleaned.
-
Page 9: Installation
OPERATION MANUAL KJR-29B/BKE-E 4. Installation ※ Preparation before Installation: Make sure the following pasts has been prepared. Name QTY. Remarks Wired Controller Cross round heat wood M4×20(For mounting on the wall) Mounting Screw Cross round heat M4×25(For mounting on the electrical switch box) -
Page 10: Wiring
OPERATION MANUAL KJR-29B/BKE-E 5. Wiring ※ Wiring principle sketch: ※ Wiring figure: 1) Connect two terminals of embedded 4-core shielding wire with the switching wires of wired remote controller and signal receiving board. Make sure the sequence of 4 terminals (A/B/C/D) should correspond to the wire sequence of signal switching wires (A/B/C/D). - Page 11 OPERATION MANUAL KJR-29B/BKE-E Buckling position Back cover Front cover Straight head screwdriver 2) Use three GB950-86 M4X20 screws to directly install the back cover on the wall. Screw hole installed on the wall,use three GB950-86 M4X20 3) Use two M4X25 GB823-88screws to install the back cover on the 86 electrician box, and use one GB950-86 M4X20 screw for fixing the wall.
- Page 12 OPERATION MANUAL KJR-29B/BKE-E Notes: 1.Use cross head screws to fix the wired controller bottom cover in the electric control box through the screw bar. Make sure the wired controller bottom cover is on the same level after installation, and then install the wired controller back to the bottom cover.
- Page 13 OPERATION MANUAL KJR-29B/BKE-E ※ Front cover installation 1) After adjusting the front cover and then buckle the front cover; avoid clamping the communication switching wire during installation. 2) Correct install the back cover and firmly buckle the front cover and back cover, if not you maybe make the front cover drop off.
- Page 14 OPERATION MANUAL KJR-29B/BKE-E...
