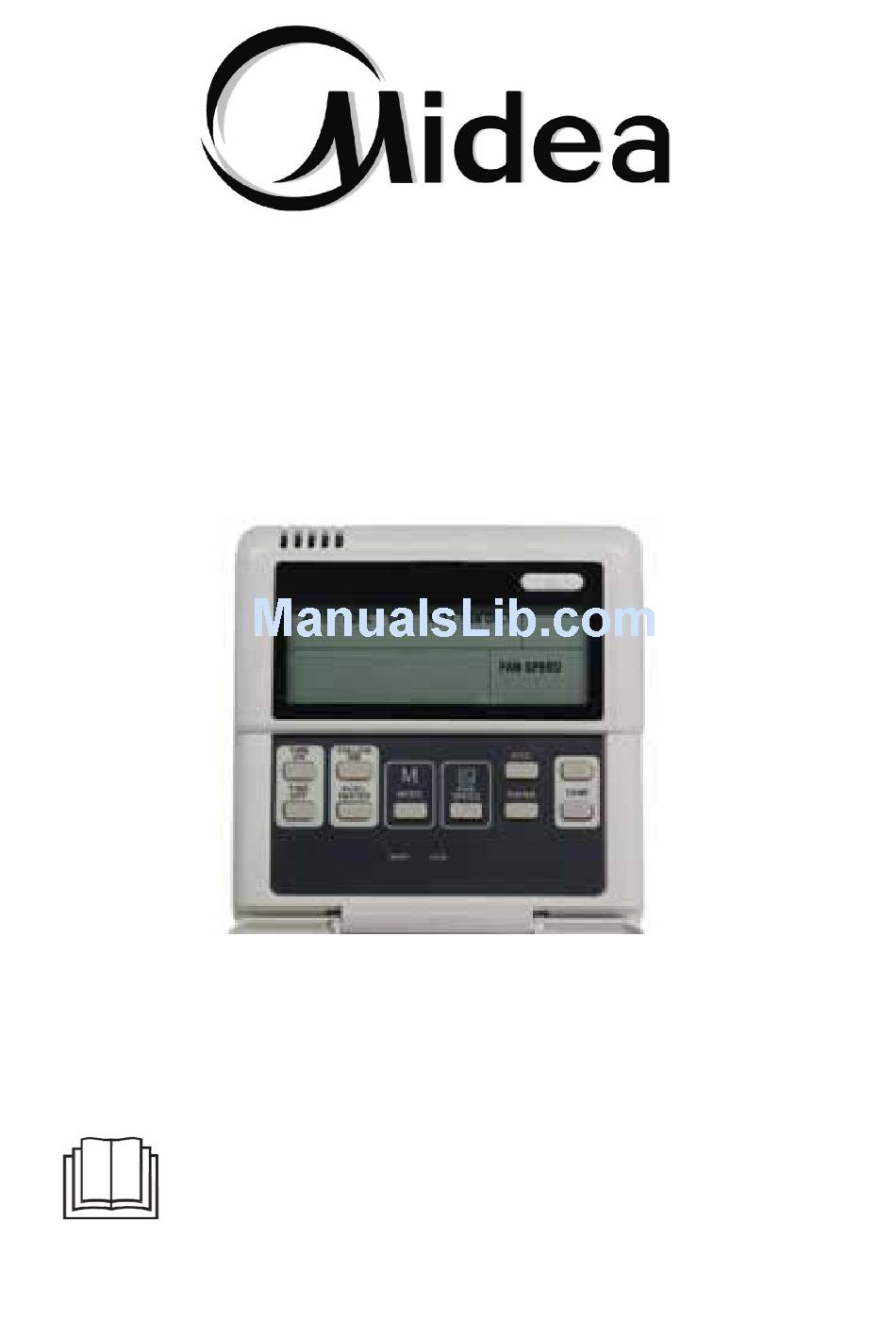

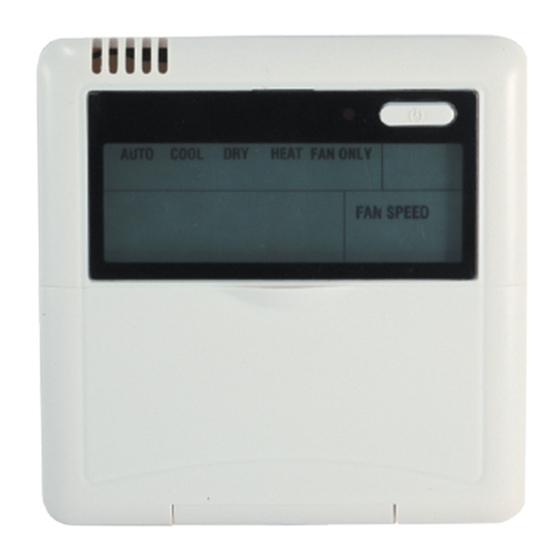

- Page 1 OWNER’S MANUAL Wire Controller of Air Conditioner MODEL: KJR-12B/DP(T) IMPORTANT NOTE: Thank you very much for purchasing our product. Before using your unit, please read this manual carefully and keep it for future reference.
- Page 2 • This manual gives detailed description of the precautions that should be brought to your attention during operation. • In order to ensure correct service of the wired controller please read this manual carefully before using the unit. • For convenience of future reference, keep this manual after reading it. •...
-
Page 3: Table Of Contents
CONTENTS ..............1 SAFETY PRECAUTION ..............2 SUMMARIZE ..............2 FUNCTION SUMMARY NAME AND FUNCTION OF INDICATORS ..............3 ON THE WIRE CONTROLLER ..............4 INSTALLATION METHOD. NAME AND OPERATION OF THE BUTTON ..............5 ON THE WIRE CONTROLLER ..............8 USING METHOD .............. -
Page 5: Safety Precaution
SAFETY PRECAUTIONS The following contents are stated on the product and the operation manual, including usage, precautions against personal harm and property loss, and the methods of using the product correctly and safely. After fully understanding the following contents (identifiers and icons), read the text body and observe the following rules. -
Page 6: Summarize
Warning Please entrust the distributor or professionals to install the unit. The installers must have Delegate the relevant know-how. Improper installation installation performed by the user without perm ission may Warning cause fire, electric,shock, personal injury or water leakage. Do not spray flammable aerosol to the wire controller Forbid directly. -
Page 7: Name And Function Of Indicators On The Wire Controller
NAME AND FUCTION OF INDICATORS ON THE CONTROLLER 1. Operation mode indication 3. Follow me function 4. ON / OFF indication 5. Fan speed indication 6. Lock 2. Timer ON / OFF 7. Temperature display zone 1. Operation mode indication: When press “... -
Page 8: Installation Method
4. ON/OFF indication: When it is on, the icon display, otherwise it is extinguished. 5. Fan speed indication: There are four fan modes: low, middle, high, auto. For some models, no middle fan then the middle fan is seen as high speed. 6. -
Page 9: Name And Operation Of The Button On The Wire Controller
When a wire controller is needed, a small 5-way terminal should be added,fix an infrared emitter with gumwater near the receiver on the switch board. Connect its anode and cathode to A and B,and +5V, GND, RUN to C, D, E on the switch board. NAME AND OPERATION OF THE BUTTON ON THE WIRE CONTROLLER ... - Page 10 ON / OFF BUTTON MODE BUTTON TIMER ON BUTTON ADJUST BUTTON ▲ TIMER OFF BUTTON ADJUST BUTTON ▼ I-FEEL BUTTON SWING BUTTON HEATER BUTTON SLEEP BUTTON RESET BUTTON FAN SPEED BUTTON ...
- Page 11 Mode botton: When press this botton,the operation mode change as the following sequence: Remark: For the cooling only model, the heating mode is skipped. Timer on button: Press this button, timer on function is active. Then every press, the time increase 0.5h, after 10h, 1h increasement after each press.
-
Page 12: Using Method
Swing button: First press, start swing function;second press, stop swing. (Match to some model with swing function). ECO button / Sleep button: Press this button, the indoor unit operates in economy mode, press again, exit this mode (it may be ineffective for some models). ... -
Page 13: Dry Operation
3. Press “FAN SPEED” button to select high/mid/low/auto. 4. Press “ON/OFF” button, indoor unit operation lamp on, it works in selected mode. Press “ON/OFF” button again, it stops to work. Remark: When in fan mode, no temperature can be set. DRY OPERATION 1. -
Page 14: Change Timer
3. Timer off time must be longer than timer on time. 4. 0.5 second after setting, the wire controller send information.the setting is finished. CHANGE TIMER If there is a need of changing timer time, press corresponding button to revise it. If concel timer, change timer time to 0.0. -
Page 15: Technical Indication And Requirement
8. TECHNICAL INDICATION AND REQUIREMENT EMC and EMI comply with the CE certification requirements. - Page 16 MD16U-004AW 16117100000921...
- Page 17 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
