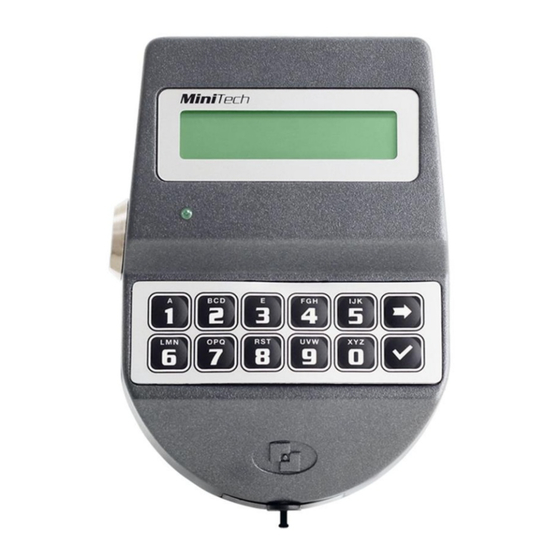

High security lock for safes
Hide thumbs Also See for MiniTech:
Table of Contents

Advertisement

Quick Links

Download this manual
MiniTech
High security lock for safes
USER INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiniTech and is the answer not in the manual?

Questions and answers

Related Manuals for Tecnosicurezza MiniTech

Summary of Contents for Tecnosicurezza MiniTech

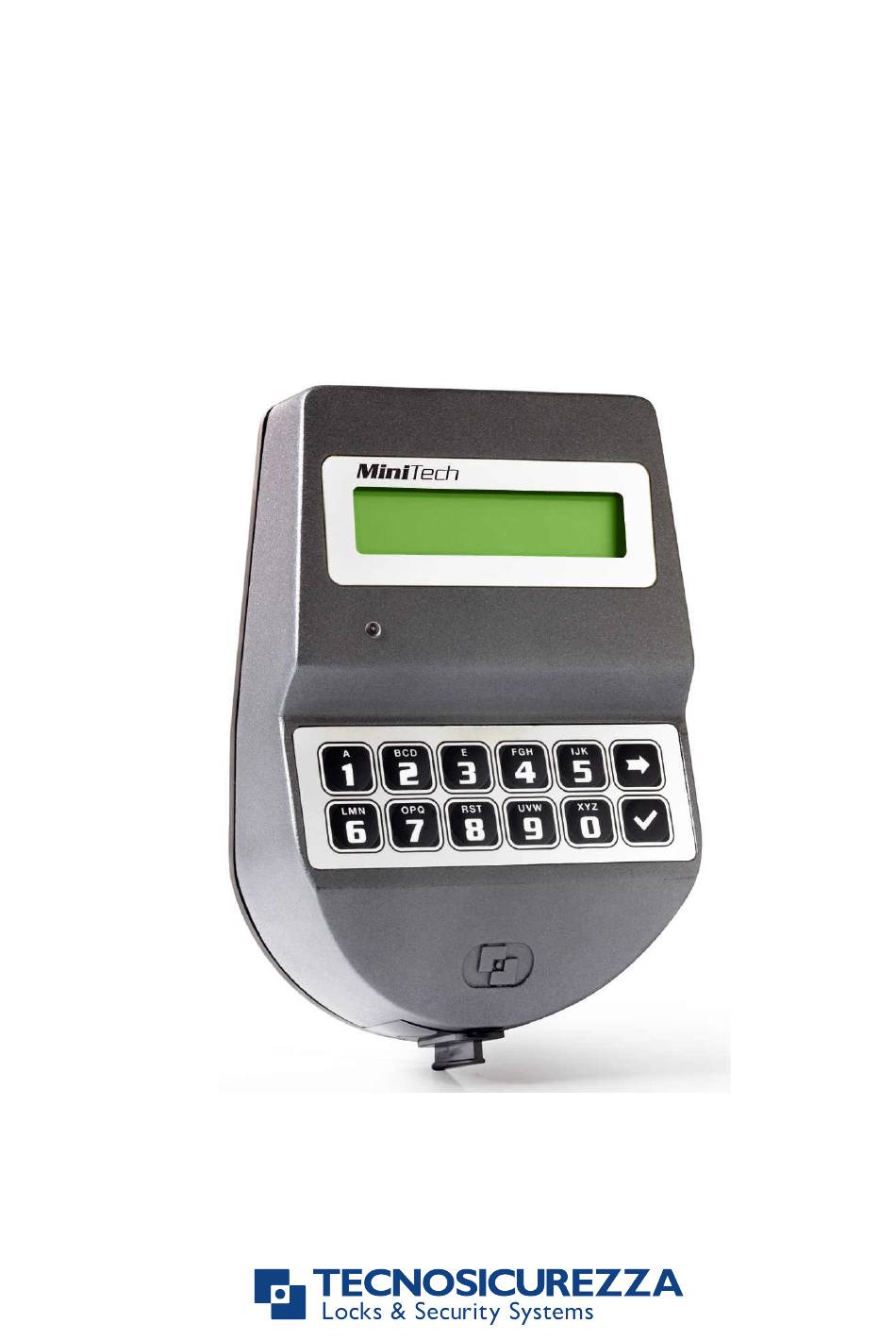

  • Page 1 MiniTech High security lock for safes USER INSTRUCTIONS...

  • Page 2: Table Of Contents

    Index Information about MiniTech ................3 Open the lock ....................5 Manager (01) and users (02-49): open the lock with time delay ......5 Override users (50-59): open the lock without time delay ........5 Change code ....................6 Manager (01), users (02-49) and override user (50-59) ........6 Users management ..................

  • Page 3: Information About Minitech

    Information about MiniTech Using your keypad Press any button to power up the keypad. Automatic power savings: if no operation is performed for 30 seconds the keypad will automatically switch off. To scroll menu functions press To exit from a menu and get back to start menu scroll the functions until the message “EXIT?”...
  • Page 4 Users 02 - 49: code (default: ID: 0-2 code: 0-2-0-2-0-2, ID 0-3 code: 0-3-0-3-0-3, etc…), code + Dallas key. Override user 50 - 59: code (default: ID 50 code: 5-0-5-0-5-0), code + Dallas key. Change default codes before operating the lock Penalty Four consecutive wrong codes initiate a four minutes penalty.

  • Page 5: Open The Lock

    Open the lock Manager (01) and users (02-49): open the lock with time delay Power up the keypad. LCD will display the message: ENTER CODE X X – X X X X X X Enter Manager or user code and the Dallas key (if set). LCD will show TIME DELAY time delay counting.

  • Page 6: Change Code

    Change code (always perform this operation with door open) Manager (01), users (02-49) and override user (50-59) Power up the keypad. Press and hold . LCD will display the ENTER OLD CODE X X – X X X X X X message: Enter the old code and the Dallas key (if set).

  • Page 7: Setup Through A Dallas Key

    Setup through a Dallas key Lock setup can be performed in two different ways only when the lock is in pre-setup, through a setup Dallas key or directly thorough a PC connected to the keypad. PRESS 1 TO OPEN To open a lock in pre-setup press Power up the keypad.

  • Page 8: Block And Unblock The Lock

    Block and unblock the lock Power up the keypad. Press and hold . LCD will display the BLOCK THE LOCK X X – X X X X X X message: Enter the requested code. If weekly Time Lock is set LCD will display the next opening time. BLOCK LOCK UNTIL 14/09 08:00 If you want to set a different opening time enter new values (max.

  • Page 9: Change Language

    Keypads and lock events can be check on the display or can be stored on a Dallas key (up to 1.200 events) previously programmed through the “MiniTech-DigiTech Audit” software, which will be used also to read the events stored in the same Dallas key.

  • Page 10: Download The Audit On A Pc

    , LCD will display the message: … Start the download on the software or press to exit. Firmware release Power up the keypad. Press and hold . LCD will display the MINITECH V 1.00 21/02/12 message: Press to get back to start menu. Adjust contrast Power up the keypad.

  • Page 11: Master Menu

    T.DELAY Press to exit or to set new values. O.WINDOW Enter new values and press to confirm. LCD will display the VALUES UPDATED message: Time delay: 00 - 99 minutes. Open window: 01 - 19 minutes. To set a lower time delay than the current set, lock must be open. Master menu Power up the keypad.

  • Page 12: Weekly Time Lock Setting - Verify Or Delete Values

    Enter first the opening time and then the closing time. Press to confirm. LCD will display the next day of the week and propose the same values. Press to confirm or to skip and change day. At the end of the week LCD will display the message: END OF LIST EXIT AND SAVE? v Press...

  • Page 13: Closing Periods Setting - Verify Or Delete Values

    Access the time lock menu and access the function. LCD will display CLOSING PERIODS the message: SETTING ADD NEW VALUES Press , LCD will display the message: ! DD/MM/YY hh:mm Press , LCD will display the message: " DD/MM/YY hh:mm Enter first closing time and date and then opening time and date.

  • Page 14: Opening Periods Setting - Verify Or Delete Values

    ADD NEW VALUES Press . LCD will display the message: " DD/MM/YY hh:mm Press . LCD will display the message: ! DD/MM/YY hh:mm Enter first opening time and date and then closing time and date. Press to confirm. If a value for the year is set, this opening period will cease after that date. If a value for the year is not set, this opening period will repeat every year.

  • Page 15: Scroll Events On The Lcd

    Access the Master menu and access the function. LCD will display the ENTER DALLAS message: … Enter the audit Dallas key into the reader. If the operation is OPERATION DONE successfully performed LCD will display the message: Scroll events on the LCD Use this function to check all the opening and closing events stored in the lock.

  • Page 16: Dynamic Codes

    Press to confirm or press to disable/enable/delete and press to confirm. Dynamic codes Use this function to enable/disable dynamic codes function on the lock. Dynamic codes function can be only enabled when lock is open. Open the lock before enable the function. Access the Master menu and access the function.
  • Page 17 IU_MiniTech_03 Page 17 of 20...
  • Page 18 Page 18 of 20 IU_MiniTech_03...
  • Page 19 IU_MiniTech_03 Page 19 of 20...
  • Page 20 Certified ISO 9001 : 2008 TECNOSICUREZZA s.r.l. Via Cesare Battisti, 276 – 37057 S. Giovanni Lupatoto (VR) – Italy Tel. +39 045 826 64 70 - Fax +39 045 826 64 69 mail: info@tecnosicurezza.it...
