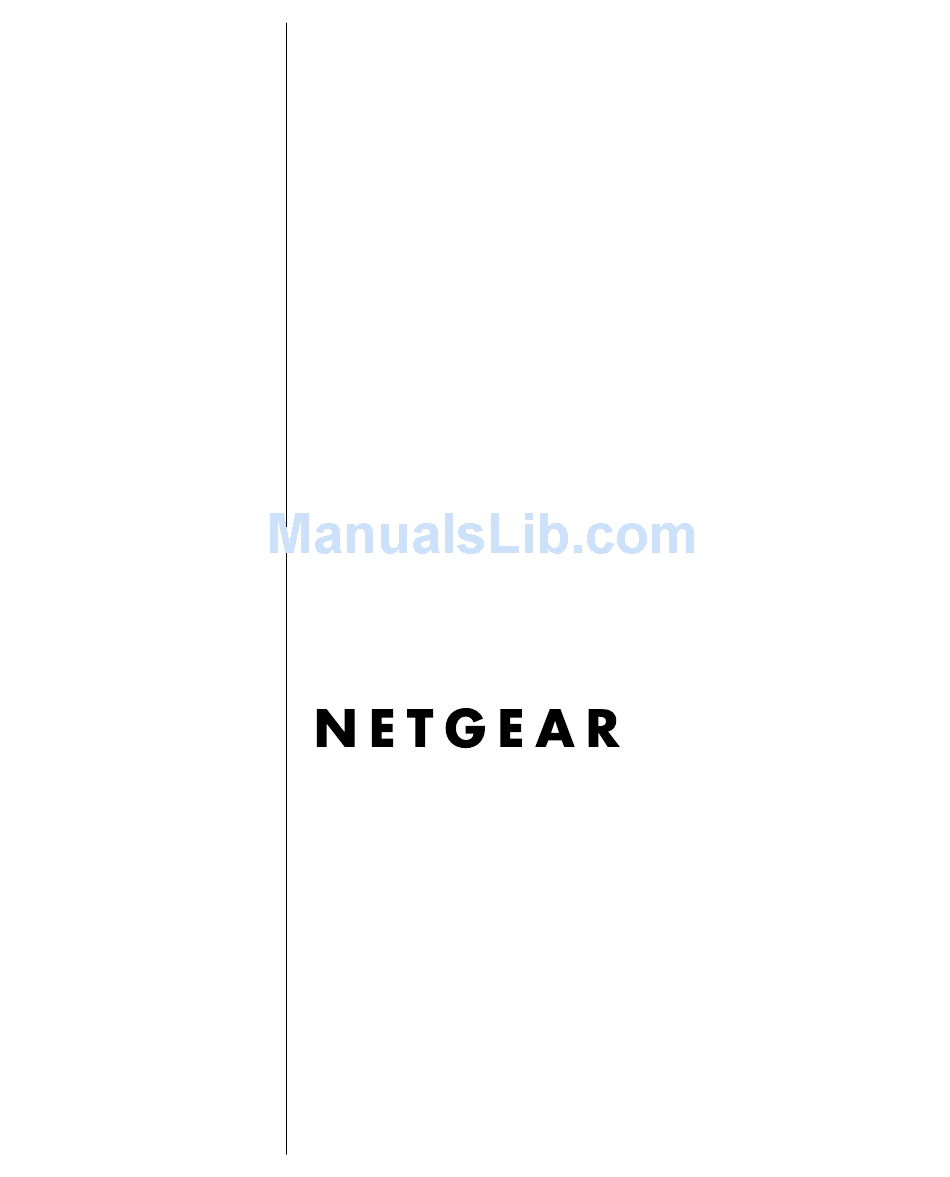

Installation and
Reference for the
Model PS104/PS105/
PS110/PS113

Print Server

NETGEAR, Inc.
4401 Great America Parkway
Santa Clara, CA 95054 USA
Phone 888-NETGEAR
M-PS100NA-4
May 2000

Advertisement

Table of Contents
loading

Related Manuals for NETGEAR PS104

Summary of Contents for NETGEAR PS104

  • Page 1: Print Server

    Installation and Reference for the Model PS104/PS105/ PS110/PS113 Print Server NETGEAR, Inc. 4401 Great America Parkway Santa Clara, CA 95054 USA Phone 888-NETGEAR M-PS100NA-4 May 2000...
  • Page 2 In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

  • Page 3: Customer Support

    Certificate of the Manufacturer/Importer It is hereby certified that the Model PS104 Print Server, Model PS105 Print Server, Model PS110 Print Server, and Model PS113 Print Server have been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/ 1991 and Vfg 46/1992.
  • Page 4 This page intentionally blank.

  • Page 5: Table Of Contents

    Chapter 1 Introduction Features ...1-1 Front Panel ...1-2 LEDs ...1-4 Rear Panel ...1-5 Normal/Uplink Push Button on the Model PS104/PS105 Print Server ...1-6 Chapter 2 Installation Preparing the Site ...2-1 Verifying Package Contents ...2-1 Connecting Devices to the Print Server ...2-2 Verifying Power ...2-3...
  • Page 6 Setting Up Your PC to Recognize the Print Server ...3-23 Installing and Setting Up FirstGear—Diskette Option ...3-23 Setting up the Print Server Using NetBEUI and TCP/IP ...3-24 Configuring the Print Server Using NetBEUI ...3-24 Configuring the Print Server Using TCP/IP ...3-24...
  • Page 7 Assigning an IP Address to the Print Server Using ARP ...6-6 Configuring Your Print Server Using FTP ...6-7 Configuration Example ...6-7 List of FTP Files and Commands Supported by the Print Server ...6-8 Setting the Print Method ...6-9 LPD Configuration and Printing ...6-10 Configuring LPD on IBM AIX 4.15 ...6-10...
  • Page 8 NetWare Print Server Mode ...7-17 TCP/IP Configuration ...7-18 NetBEUI Configuration ...7-19 Logical Printer Configuration ...7-20 Configuring Using QUICKSET ...7-21 NetWare Print Server (PSERVER) Mode ...7-21 NetWare Remote Printer (RPRINTER) Mode ...7-23 Appendix A Technical Specifications General Specifications ... A-1 Appendix B Understanding IP Addresses IP Addresses and the Internet ...
  • Page 9 Appendix E IP Setup Overview ... E-1 Index Contents...
  • Page 10 This page intentionally blank. Contents...
  • Page 11 Figure 1-1. Front Panel of the Model PS104 Print Server ...1-2 Figure 1-2. Front Panel of the Model PS105 Print Server ...1-2 Figure 1-3. Front Panel of the Model PS110 Print Server ...1-3 Figure 1-4. Front Panel of the Model PS113 Print Server ...1-3 Figure 1-5.
  • Page 12 Figure 3-25. Install From Disk Window ...3-23 Figure 3-26. Firstgear for Print Server Icon ...3-24 Figure 3-27. Firstgear for Print Server Window ...3-25 Figure 3-28. NETGEAR Print Server Administration Program Window ...3-26 Figure 3-29. TCP/IP Menu ...3-27 Figure 4-1. FirstGear Introductory Window ...4-2 Figure 4-2.
  • Page 13 Figure 4-28. NETGEAR Print Server Administration Program Window ...4-26 Figure 4-29. TCP/IP Menu ...4-27 Figure 7-1. NETGEAR Print Server Administration Program ...7-2 Figure 7-2. FirstGear Setup Utility Quick Setup Screen ...7-3 Figure 7-3. System Menu Tab Window ...7-5 Figure 7-4.
  • Page 14 This page intentionally blank. Figures...
  • Page 15 NetWare RPrinter Menu Tab Fields ...7-9 Table 7-5. TCP/IP Menu Tab Fields ...7-11 Table 7-6. Logical Port Menu Tab Fields ...7-13 Table 7-7. Advanced Print Server Configuration Menu Bar Selections ...7-14 Table 7-8. Printer Menu Options ...7-14 Table 7-9. PSCONFIG Program Options ...7-15 Table 7-10.
  • Page 16 Table B-1. Netmask Notation Translation Table for One Octet ... B-5 Table B-2. Netmask Formats ... B-5 Table C-1. Configuration Settings ... C-1 Table C-2. CONFIG File Line Numbers ... C-3 Table E-1. IP Configuration Settings ... E-1 Tables...

  • Page 17: Preface

    Guide (NETGEAR part number M1-PS100NA-1). However, this guide provides you with further reference information. In this guide, the Model PS104 Print Server, the Model PS105 Print Server, the Model PS110 Print Server, and the Model PS113 Print Server are referred to collectively as the Model PS104/PS105/ PS110/PS113 Series of print servers or just the print server.

  • Page 18: Conventions

    Conventions This section describes the conventions used in this guide. Special Message Formats This guide uses the following formats to highlight special messages: Note: This format is used to highlight information of importance or special interest. Caution: This format is used to highlight information that will help you prevent equipment failure or loss of data.

  • Page 19: Other Conventions

    If you are using Microsoft Windows 95, Windows 98, Windows NT, or Windows 2000 and have a network card installed with the NetBEUI protocol, refer to the Model PS104/Model PS105/Model PS110/Model PS113 Print Server Installation Guide (document part number M1-PS100NA-1).

  • Page 20: Introduction

    10/100BASE-T Ethernet connection on the Model PS110 and Model PS113 Print Server • One IEEE 1284 bidirectional parallel port on the Model PS104 and Model PS105 Print Servers, two bidirectional parallel ports on the Model PS110 Print Server, and three bidirectional parallel ports on the Model PS113 Print Server •...

  • Page 21: Front Panel

    The LEDs that indicate the status of the server, ports, and printer are located on the front panels of the Model PS104 Print Server, the Model PS105 Print Server, the Model PS110 Print Server, and the Model PS113 Print Server as illustrated in respectively.
  • Page 22 Key: 1 = PWR (power) LED 2 = PRINTER 1 LEDs 3 = PRINTER 2 LEDs 4 = Network LEDs Figure 1-3. Front Panel of the Model PS110 Print Server Print Server 10/100 Mbps Link/Act Alert PRINTER 1 Key: 1 = PWR (power) LED...

  • Page 23: Leds

    LEDs There are 8 LEDs on the front panel of the Model PS104 Print Server, 9 LEDs on the front panel of the Model PS105 Print Server, 10 LEDs on the front panel of the Model PS110 Print Server, and 12 LEDs on the front panel of the Model PS113 Print Server.

  • Page 24: Rear Panel

    (collision) Rear Panel The rear panel of the Model PS104 Print Server and the Model PS105 Print Server has one parallel PRINTER port, the rear panel of the Model PS110 Print Server has two parallel ports for printers (PRINTER 1 and PRINTER 2), and the rear panel of the Model PS113 Print Server has three parallel ports for printers (PRINTER 1, PRINTER 2, and PRINTER 3).

  • Page 25: Normal/Uplink Push Button On The Model Ps104/Ps105 Print Server

    Normal/Uplink Push Button on the Model PS104/PS105 Print Server The Normal/Uplink push button on the Model PS104 Print Server and the Model PS105 Print Server allows you to select Normal (MDI-X) or Uplink (MDI) wiring for NETWORK port 1, eliminating the need to use a crossover cable. Ports 2 to 4 on the print server are permanently configured for Normal wiring.
  • Page 26 2 = PRINTER 1 (parallel) port 3 = NETWORK port (10/100BASE-T connector) 4 = Power adapter receptacle Figure 1-7. Rear Panel of the Model PS110 Print Server PRINTER 3 Key: 1 = PRINTER 3 (parallel) port 2 = PRINTER 2 (parallel) port...

  • Page 27: Installation

    • Warranty & Owner Registration Card • Customer Support Phone Card Call your reseller or NETGEAR Customer Support in your area if there are any wrong, missing, or damaged parts. Refer to “Customer your area. Keep the carton, including the original packing materials. Use them to repack the print server if you need to return it for repair.

  • Page 28: Connecting Devices To The Print Server

    10 Mbps or 100 Mbps connections, depending on the connected device. The 10/100BASE-T network port operates in half-duplex mode. Ports 2 through 4 on the Model PS104 Print Server are permanently configured for MDI-X wiring; port 1 can be set to MDI (Uplink) or MDI-X (Normal) by using the Normal/Uplink push button switch.

  • Page 29: Verifying Power

    • The green PWR (power) LED on the front panel is on. • On the Model PS104 Print Server and the Model PS105 Print Server, the green Link/Rx LED on each connected network port is on. • On the Model PS110 and the Model PS113 Print Sever, the green Link LED on each connected printer port is on.

  • Page 30: Microsoft Windows 95 And Windows 98 Printing

    • User Installation—used through the NetBEUI protocol, this option is geared toward the user who is already connected to the LAN and needs to set up a PC to the NETGEAR print server. • Admin Installation—this option is geared toward the user who is connected to the LAN and also manages the print server.

  • Page 31: Installing And Setting Up Firstgear-User Installation

    To install and set up your network and your print server for the NETGEAR print server, you must be using a PC with a Windows 95, Windows 98, Windows NT 3.51, or later operating system and with either the TCP/IP protocol or the NetBEUI protocol enabled.

  • Page 32: Figure 3-2. User Installation Option Window

    Click on Next. Another FirstGear window, as illustrated in Figure 3-2. User Installation Option Window Microsoft Windows 95 and Windows 98 Printing Figure 3-2, opens.

  • Page 33: Figure 3-3. Netgear Print Server Software Installation Window

    Choose “User PC Installation” and click on Next. The NETGEAR Print Server Software Installation window, as illustrated in Figure 3-3. NETGEAR Print Server Software Installation Window Microsoft Windows 95 and Windows 98 Printing Figure 3-3, opens.

  • Page 34: Figure 3-4. Choose Destination Location Window

    Click on Next. The Choose Destination Location window, as illustrated in Figure 3-4. Choose Destination Location Window Microsoft Windows 95 and Windows 98 Printing Figure 3-4, opens.

  • Page 35: Figure 3-5. Select Program Folder Window

    Click on Next. The Select Program Folder window, as illustrated in Figure 3-5. Select Program Folder Window Figure 3-5, opens. Microsoft Windows 95 and Windows 98 Printing...

  • Page 36: Figure 3-6. Setup Complete Window

    Type Firstgear for Print Server in the Program Folders entry field (default) or select a folder from the Existing Folders list. You can type in a unique name you have chosen for the program folder at the “Program Folders” prompt or click on a selection in the Existing Folder field to title the folder with another name.

  • Page 37: Setting Up Your Pc To Recognize The Print Server

    Setting Up Your PC to Recognize the Print Server You must set up each PC that will print to the print server. Before proceeding, verify that: • The print cable is connected to the printer port. • The AC adapter is plugged into the wall socket.

  • Page 38: Figure 3-8. Setup Icon

    The Setup window opens, as illustrated in Figure 3-9. Setup Window Make sure that the NETGEAR print server and the printer that connects to it are both powered on. Make sure that the cable connections between them are properly connected.

  • Page 39: Figure 3-10. Printer Select Window (Add Port)

    Click on OK. The Printer Select window, as illustrated in The Printer Select window will stay in the background while you work through subsequent setup windows because you will use this window to complete the setup process. Figure 3-10. Printer Select Window (Add Port) Note: If the cables are not properly connected, your PC screen will appear empty when the Printer Select window opens.

  • Page 40: Figure 3-11. Addport Window (Epson Connection)

    Click on the printer port you want to use with the print server, and click on Add. The ADDPORT window for Epson print connection, as illustrated in Figure 3-11. ADDPORT Window (Epson Connection) Click on No if you do not have an Epson Stylus Color printer attached to the port, and continue to step 8.

  • Page 41: Figure 3-13. Addport Window

    Select Queue Setup, and click on Use Print Manager for this port. Click on OK to exit the Queue Setup window. The ADDPORT window, as illustrated in you have successfully added the port. Figure 3-13. ADDPORT Window Click on OK. The Add Printer Wizard window, as illustrated in Figure 3-14.

  • Page 42: Figure 3-15. Add Printer Wizard Window (Driver Installation)

    Click on Next after clicking on the names of the manufacturer and printer model you are adding. If your printer is not listed, click on Have Disk and insert the driver disk that you received from the printer manufacturer. Install the driver, proceeding as instructed until the Add Printer Wizard window, as illustrated in Figure 3-15.

  • Page 43: Figure 3-16. Add Printer Wizard Window (Printer Name)

    If you have already installed the printer driver, select Keep existing driver (recommended), and click on Next. If you have not installed the driver, do so now as prompted by the screen, as illustrated in The Add Printer Wizard window for naming your printer, as illustrated in Figure 3-16.

  • Page 44: Figure 3-17. Add Printer Wizard Window (Print Test Page)

    Type a name for the printer (if you want it to have a unique name) and decide if you want this printer to be your default printer; then click on Next. The Add Printer Wizard window for printing a test page, as illustrated in Figure 3-17.

  • Page 45: Figure 3-18. Add Port Window (Setup Complete)

    Figure 3-18. Add Port Window (Setup Complete) Click on End to complete the setup process. You are now ready to use the printer attached to your print server. 3-16 Microsoft Windows 95 and Windows 98 Printing Figure...

  • Page 46: Installing And Setting Up Firstgear-Admin Installation

    NETGEAR print server. Note: It is necessary to install the FirstGear software on every PC in the network that will use the printers attached to the Model PS104/PS105/PS110/PS113 print server. To install the NETGEAR print server software for admin installation: Turn on the power to your PC.

  • Page 47: Figure 3-20. "Admin Installation" Option Window

    Click on Next. Another FirstGear window, as illustrated in Figure 3-20. “Admin Installation” Option Window 3-18 Figure 3-20, opens. Microsoft Windows 95 and Windows 98 Printing...

  • Page 48: Figure 3-21. Netgear Print Server Software Installation Window

    Choose “Admin PC Installation” and click on Next. The NETGEAR Print Server Software Installation window, as illustrated in opens. Figure 3-21. NETGEAR Print Server Software Installation Window Microsoft Windows 95 and Windows 98 Printing Figure 3-21, 3-19...

  • Page 49: Figure 3-22. Choose Destination Location Window

    Click on Next. The Choose Destination Location window, as illustrated in Figure 3-22. Choose Destination Location Window 3-20 Figure 3-22, opens. Microsoft Windows 95 and Windows 98 Printing...

  • Page 50: Figure 3-23. Select Program Folder Window

    Click on Next to install the NETGEAR print server program in the Program Files folder. If you want to have the program installed elsewhere, click on Browse to find an alternate location for the software. The Select Program Folder window, as illustrated in Figure 3-23.

  • Page 51: Figure 3-24. Setup Complete Window

    Figure 3-24. Setup Complete Window Click on Finish. The FirstGear Print Server program is now installed on your PC. You must now set up your PC to print to the print server. Proceed to Recognize the Print Server.” 3-22 Figure 3-24, opens.

  • Page 52: Setting Up Your Pc To Recognize The Print Server

    “Installing and Setting Up FirstGear—User and Setting Up FirstGear—Admin Installation and setup process. For more information about the advanced setup features for the NETGEAR print server, refer to Chapter 7, “Using Advanced Management Microsoft Windows 95 and Windows 98 Printing Server”...

  • Page 53: Setting Up The Print Server Using Netbeui And Tcp/Ip

    Setting up the Print Server Using NetBEUI and TCP/IP Configuring the Print Server Using NetBEUI No additional print server configuration is necessary after you have followed the steps outlined in “Setting Up Your PC to Recognize the Print Configuring the Print Server Using TCP/IP To configure the print server using TCP/IP:...

  • Page 54: Figure 3-27. Firstgear For Print Server Window

    Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server The Firstgear for Print Server window, as illustrated in Figure 3-27, opens. Figure 3-27. Firstgear for Print Server Window Microsoft Windows 95 and Windows 98 Printing 3-25...

  • Page 55: Figure 3-28. Netgear Print Server Administration Program Window

    Double-click on the NETGEAR Print Server Administration icon. The NETGEAR Print Server Administration Program window, as illustrated in opens. Figure 3-28. NETGEAR Print Server Administration Program Window 3-26 Microsoft Windows 95 and Windows 98 Printing Figure 3-28,...

  • Page 56: Figure 3-29. Tcp/Ip Menu

    Click on the Advanced button, as illustrated in The TCP/IP menu opens, as illustrated in Figure 3-29. TCP/IP Menu Click on the TCP/IP menu tab, which is located at the top of the window, as illustrated in Figure 3-29. Refer to Table 3-1 on page Microsoft Windows 95 and Windows 98 Printing...

  • Page 57: Table 3-1. Fields And Descriptions For Tcp/Ip Configuration

    IP Address This IP address is assigned to the print server. If you have a private LAN and do not plan to connect to the TCP/IP-based Internet, NETGEAR recommends that you use an address from the IETP-designated private addresses (for example, 192.168.x.x or 10.x.x.x).

  • Page 58: Microsoft Windows Nt And Windows 2000 Printing

    • User Installation—used through the NetBEUI protocol, this option is geared toward the user who is already connected to the LAN and needs to set up a PC to the NETGEAR print server. • Admin Installation—this option is geared toward the user who is connected to the LAN and also manages the print server.

  • Page 59: Installing And Setting Up Firstgear-User Installation

    Note: Before proceeding with these instructions, be sure to assign a name to your workgroup on your PC. Installation and setup of the NETGEAR software is required on each PC needing access to the printers that will be attached to the print server.

  • Page 60: Figure 4-2. User Pc Installation Option Window

    Click on Next. Another FirstGear window, as illustrated in Figure 4-2. User PC Installation Option Window Microsoft Windows NT and Windows 2000 Printing Figure 4-2, opens.

  • Page 61: Figure 4-3. Netgear Print Server Software Installation Window

    Choose “User PC Installation” and click on Next. The NETGEAR Print Server Software Installation window, as illustrated in Figure 4-3. NETGEAR Print Server Software Installation Window Microsoft Windows NT and Windows 2000 Printing Figure 4-3, opens.

  • Page 62: Figure 4-4. Choose Destination Location Window

    Click on Next. The Choose Destination Location window, as illustrated in Figure 4-4. Choose Destination Location Window Microsoft Windows NT and Windows 2000 Printing Figure 4-4, opens.

  • Page 63: Figure 4-5. Select Program Folder Window

    Click on Next to install the NETGEAR Print Server program in the Program Files folder. If you want to have the program placed elsewhere, click on Browse to find an alternate location for the software. The Select Program Folder window, as illustrated in Figure 4-5.

  • Page 64: Figure 4-6. Setup Complete Window

    The Setup Complete window, as illustrated in Figure 4-6. Setup Complete Window Click on Finish. The FirstGear Print Server Program is now installed on your PC. You must now set up your PC to recognize the print server. Microsoft Windows NT and Windows 2000 Printing Figure...

  • Page 65: Setting Up Your Pc To Recognize The Print Server

    Setting Up Your PC to Recognize the Print Server You must set up each PC that will print to the print server. Before proceeding, verify that: • The print cable is connected to the printer port. • The AC adapter is plugged into the wall socket.

  • Page 66: Figure 4-8. Firstgear For Print Server Setup Icon

    The Setup window, as illustrated in Figure 4-9. Setup Window Make sure the NETGEAR print server and the printer that connects to it are both powered on. Make sure the cable connections between them are properly connected. Microsoft Windows NT and Windows 2000 Printing Figure 4-8, opens.

  • Page 67: Figure 4-10. Printer Select Window (Add Port)

    Refresh button, which will initiate the PC to browse again for a port. Click on the printer port you want to use with the print server and click on Add. The ADDPORT window for Epson printer connection, as illustrated in Figure 4-11.

  • Page 68: Figure 4-12. Add Port Window (Added Port Successfully)

    Click on Yes if you have an Epson Stylus Color printer attached to the port, otherwise Click on No. The ADDPORT window, as illustrated in you have successfully added the port. Figure 4-12. Add Port Window (Added port successfully) Click on OK. The Add Printer Wizard, as illustrated in Figure 4-13.

  • Page 69: Figure 4-14. Add Printer Wizard Window (Manufacturer And Model Of Printer)

    Select the port you added in the previous step. Do not click on Add Port. Click on Next. The Add Printer Wizard window, as illustrated in Figure 4-14. Add Printer Wizard Window (Manufacturer and Model of Printer) 4-12 Figure 4-14, opens. Microsoft Windows NT and Windows 2000 Printing...

  • Page 70: Figure 4-15. Add Printer Wizard Window (Printer Name)

    Click on Next after clicking on the names of the manufacturer and printer model you are adding in the Add Printer Wizard window. If your printer is not listed, click on Have Disk and insert the driver disk that you received from the printer manufacturer.

  • Page 71: Figure 4-16. Add Printer Wizard Window (Sharing Ports Screen)

    Another Add Printer Wizard screen, as illustrated in can choose to either share or not share the print server with other users in the network. If you do want to share the print server, you must click on all of the operating systems that will be sharing the print server.

  • Page 72: Figure 4-17. Add Printer Wizard Window (Print Test Page)

    Click on Next. Another Add Printer Wizard window, as illustrated in Figure 4-17. Add Printer Wizard Window (Print Test Page) Microsoft Windows NT and Windows 2000 Printing Figure 4-17, opens. 4-15...

  • Page 73: Figure 4-18. Printer Select Window (End Setup)

    The Add Printer Wizard window closes and the Printer Select window, as illustrated in Figure 4-18, comes back into view. Figure 4-18. Printer Select Window (End Setup) Click on End. You are now ready to use the printer attached to your print server. 4-16 Microsoft Windows NT and Windows 2000 Printing...

  • Page 74: Installing And Setting Up Firstgear-Admin Installation

    Model PS104/PS105/PS110/PS113 print server. Turn on the power to your PC. Insert the NETGEAR Resource CD-ROM. The NETGEAR window briefly opens, and the Firstgear Introductory window, as illustrated in Figure 4-19, opens. If it does not, click on Start > Run and then type in “Install.exe” at the prompt (for example, “D:Install.exe”) to start the installation process.

  • Page 75: Figure 4-20. Admin Installation Option Window

    Click on Next. Another FirstGear window, as illustrated in Figure 4-20. Admin Installation Option Window 4-18 Figure 4-20, opens. Microsoft Windows NT and Windows 2000 Printing...

  • Page 76: Figure 4-21. Netgear Print Server Software Installation Window

    Select “Admin PC Installation” and click on Next. The NETGEAR Print Server Software Installation window, as illustrated in opens. Figure 4-21. NETGEAR Print Server Software Installation Window Microsoft Windows NT and Windows 2000 Printing Figure 4-21, 4-19...

  • Page 77: Figure 4-22. Choose Destination Location Window

    Click on Next. The Choose Destination Location window, as illustrated in Figure 4-22. Choose Destination Location Window 4-20 Figure 4-22, opens. Microsoft Windows NT and Windows 2000 Printing...

  • Page 78: Figure 4-23. Select Program Folder Window

    Click on Next to install the NETGEAR Print Server program in the Program Files folder. If you want to have the program placed elsewhere, click on Browse to find an alternate location for the software. The Select Program Folder, as illustrated in Figure 4-23.

  • Page 79: Figure 4-24. Setup Complete Window

    Click on Next. The software will be copied to the program folder you requested in step 7. A window opens, asking you if you want to install Adobe Acrobat (a software program that will allow you to view the manual on line). Click on Yes if you want Adobe Acrobat to be installed.

  • Page 80: Setting Up Your Pc To Recognize The Print Server

    Install From Disk Window Refer to “Installing and Setting Up FirstGear—User the installation and setup process. For information about the advanced setup procedures for the NETGEAR print server, refer to Chapter 7, “Using Advanced Management Microsoft Windows NT and Windows 2000 Printing page 4-8.

  • Page 81: Setting Up The Print Server Using Netbeui And Tcp/Ip

    Setting up the Print Server Using NetBEUI and TCP/IP Configuring the Print Server Using NetBEUI No additional print server configuration is necessary after you have followed the steps outlined in “Setting Up Your PC to Recognize the Print Configuring the Print Server Using TCP/IP To configure the print server using TCP/IP:...

  • Page 82: Figure 4-27. Firstgear For Print Server Window

    Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server The Firstgear for Print Server window, as illustrated in Figure 4-27, opens. Figure 4-27. Firstgear for Print Server Window Microsoft Windows NT and Windows 2000 Printing 4-25...

  • Page 83: Figure 4-28. Netgear Print Server Administration Program Window

    Double-click on the NETGEAR Print Server Administration icon. The NETGEAR Print Server Administration Program window, as illustrated in opens. Figure 4-28. NETGEAR Print Server Administration Program Window 4-26 Microsoft Windows NT and Windows 2000 Printing Figure 4-28,...

  • Page 84: Figure 4-29. Tcp/Ip Menu

    Select Enable or Disable to enable or disable DHCP. If DHCP is enabled, the print server can be set up to obtain its IP address from a DHCP (Dynamic Host Configuration Protocol) server or can be manually assigned an IP address at this menu tab.

  • Page 85: Setting Up Spooled Lpr Printing With Windows Nt 3.51

    IP Address This IP address is assigned to the print server. If you have a private LAN and do not plan to connect to the TCP/IP-based Internet, NETGEAR recommends that you use an address from the IETP-designated private addresses (for example, 192.168.x.x or 10.x.x.x).

  • Page 86: Table 4-2. Add A Spooled Lpr Printer Fields

    Click on the Add Software button. The Network Software dialog box opens. Select TCP/IP Protocol And Related Components in the Network Software dialog box, and then click on Continue. The Windows NT TCP/IP Installation Options dialog box opens. Click on the TCP/IP Network Printing Support option. Click on OK.

  • Page 87: Setting Up Spooled Lpr Printing With Windows Nt 4.0

    LPR printer port in the Windows NT system. If you are using the Model PS104 and Model PS105, L1 and L2 logical ports are mapped into physical port P1. If you are using the Model PS110 Print Server, the factory default L1 and L2 logical ports are mapped into physical ports P1 and P2, respectively.
  • Page 88 Use only the logical printer when implementing the LPR printer port on the Windows NT system. If you are using the Model PS104 or PS105 Print Server, all three logical ports are mapped to the same PRINTER port. If you are using the Model PS110 Print Server, the factory default is L1 = P1 and L2 = P2.

  • Page 89: Novell Netware Printing

    This chapter describes how to configure and use the NETGEAR Model PS104 Print Server, Model PS105 Print Server, Model PS110 Print Server, and Model PS113 Print Server in the Novell NetWare environment. Configuration Overview This section describes the requirements and outlines the PSERVER or RPRINTER mode configuration in either a NetWare Bindery or a NetWare Directory Services (NDS) network...

  • Page 90: Configuring The Netware File Server

    – Sends the received network packet data to the printer It is a two-step process to set up the Model PS104/PS105/PS110/PS113 print server in the NetWare environment. The NetWare file server must first be configured, and then you can configure your print server.

  • Page 91: Configuring Your Print Server

    There are two methods for configuring the print server in a NetWare environment: the FirstGear Administration Program based on Windows, or the PSCONFIG program based on MS-DOS. Both programs are on the Model PS104/PS105/PS110/PS113 Print Server Resource CD that comes with your print server.

  • Page 92: Setting Pserver Mode In Netware 3.X (Bindery Mode)

    Setting PSERVER Mode in NetWare 3.x (Bindery Mode) To set up the NetWare file server to connect to the Model PS104/PS105/PS110/PS113 print server in the NetWare PSERVER mode, first designate a NetWare file server that your print server will log on to retrieve print jobs. Log on to the file server as SUPERVISOR or as a user with SUPERVISOR privileges.

  • Page 93: Table 5-1. Pserver Mode Printer Number Mapping

    Leave the Type entry field with the default value of Defined elsewhere. Press [Esc]. Select Yes to save the changes. Repeat steps d, e, and f for each printer port on the print server. Press [Esc] to return to the Print Server Configuration menu. Associate printers with print queues.
  • Page 94 Verify that PS is the Operation Mode. PS must be the operation mode for the print server to operate in PSERVER mode. If the operation mode is RP, the print server operates in RPRINTER mode. It can operate in only one mode at a time.

  • Page 95: Setting Rprinter Mode In Netware 3.X (Bindery Mode)

    Setting RPRINTER Mode in NetWare 3.x (Bindery Mode) To set up the NetWare file server to connect to the Model PS104/PS105/PS110/PS113 print server in the NetWare RPRINTER mode, first designate a NetWare file server that your print server will log on to retrieve print jobs. Log on to the file server as SUPERVISOR or as a user with SUPERVISOR privileges.

  • Page 96: Table 5-2. Rprinter Mode Printer Name Mapping

    PSCONFIG program for the RPRINTER setup. The factory default name for the print server is PSxxxxxx as shown on the label on the bottom of the device.
  • Page 97 Verify that RP is the operation mode. RP must be the operation mode for the print server to operate in RPRINTER mode. If the operation mode is PS, the print server operates in PSERVER mode. It can operate only in one mode at a time.
  • Page 98 Load the PSERVER.NLM on the NetWare file server. If the NetWare print server to which the NETGEAR print server will be connected has been previously loaded, you must unload and reload it again. If you are unloading and reloading the PSERVER NetWare Loadable Module (NLM), start with step a.

  • Page 99: Using Your Print Server In A Netware 4.X Network

    Also make sure that you have a unique name for each of the NETGEAR print servers on the network. Log in to your NDS network as ADMIN or as a user with Administrator access privileges. Make a note of the NDS tree and NDS context name that appear on the screen.
  • Page 100 To configure the NDS file server to use the Model PS104/PS105/PS110/PS113 print server in PSERVER mode: Execute the PCONSOLE program from the System volume of the file server. The Available Options window opens. Make sure that the following five menu selections are in the window: •...
  • Page 101 Repeat steps a through e if you are using the Model PS110 Print Server and if you want to configure parallel port 2. Similarly, repeat steps a through e if you are using the Model PS113 Print Server, which has three parallel ports.

  • Page 102: Setting Pserver Mode In A Netware 4.X Bindery Emulation Network

    Besides the NDS mode, NetWare 4.x also allows file servers to provide Bindery emulation services to devices or computers that are capable of operating only in Bindery mode. In this setup example, the Model PS104/PS105/PS110/PS113 print server is connecting to the NetWare 4.x file server in Bindery emulation mode.
  • Page 103 5-5. Repeat steps a through e if you are using the Model PS110 Print Server and want to configure parallel port 2. Similarly, repeat steps a through e if you are using the Model PS113 Print Server, which has three parallel ports.

  • Page 104: Setting Rprinter Mode In A Netware 4.X Nds Mode Network

    Make sure that you are running Client32 in the NDS mode before configuring the print server as a NetWare NDS Remote Printer. To configure the NDS file server to use the Model PS104/PS105/PS110/PS113 print server in RPRINTER mode: Execute the PCONSOLE program from the System volume of the file server.
  • Page 105 Type the predetermined print server name in the Print Server field. This name is not the one for the NETGEAR print server. It is the print server you will set up on the NetWare file server. At the end of the installation process, you will load PSERVER.NLM on the file server using this name.
  • Page 106 Press [Esc] to exit the PSCONFIG program. Load the PSERVER.NLM on the NetWare file server. If the NetWare print server to which the NETGEAR print server will be connected has been previously loaded, you must unload and reload it again. If unloading and reloading the PSERVER NetWare Loadable Module (NLM), start with step a.

  • Page 107: Setting Pserver Mode In Netware 5.X Nds Mode Network

    NETGEAR print servers on the network. You must use Windows 95 or Windows 98 and be running Client32. To configure the NDS file server to use the Model PS104/PS105/PS110/PS113 print server in PSERVER mode: Execute the NWADMN32 program from the system volume (for example, “F:\public\win32”) on the file server.

  • Page 108: Using Advanced Functions

    Servicing Multiple NetWare Bindery File Servers If your print server is configured as a NetWare Print Server and you want it to service more than one Bindery file server: Log in, with supervisory rights, to each file server you want your print server to service.

  • Page 109: Attaching To More Than One Netware Print Server

    Press [Esc] until you exit PCONSOLE. Execute the PSCONFIG program while you are logged in to the file server. Select the NETGEAR print server and configure it to attach to the designated master Bindery file server. This step is not necessary if the print server has previously been configured.

  • Page 110: Using Logical Ports

    UNIX-style LF (Line Feeds) to DOS-style LF/CR (Line Feed, Carriage Return) pairs. Each Model PS104 and Model PS105 Print Server has one parallel port and supports three logical printers. Each Model PS110 and PS113 Print Server, with two and three parallel ports respectively, supports eight logical printers.

  • Page 111: Configuring Netware File Server To Connect To Logical Printers

    Select the physical port for this logical printer (P1 to P2 for parallel ports). Logical printers are numbered from L1 to L3 for the Model PS 104 and Model PS105 print server and numbered L1 to L8 for the Model PS110 and Model PS113 print server. String Before Job The printer control string (in hexadecimal notation) to be sent to the printer before each print job.

  • Page 112: Unix Printing Using Tcp/Ip

    This chapter explains how to configure and set up the NETGEAR Model PS104/PS105/PS110/ PS113 print server and your UNIX system if you are operating in a UNIX networking environment. The print server can work with most UNIX operating systems with the TCP/IP protocol, but the following protocols and printing methods are supported: •...
  • Page 113 Assign a static IP address to your print server by referring to the Print Server Using With all four methods of IP address resolution, the print server loses the IP setting after reset or a power loss. To permanently configure the print server and save the IP address assignment in the flash EEPROM of the print server, you must use FTP.

  • Page 114: Temporary Ip Address Resolution

    DHCP, turn on power to the print server; the DHCP server automatically assigns an IP address to it. If you do not have a DHCP server and you are assigning an IP address to the print server, you can use BootP, RARP, or ARP.

  • Page 115: Assigning An Ip Address To The Print Server Using Rarp

    NAME NAME is the name of the print server. You should receive a response. If you get a timeout message, the BootP procedure has failed. You can either follow the steps again for using BootP or use one of the other methods for assigning an IP address.
  • Page 116 NAME is the name of your print server. A sample entry is: 192.10.2.54 PS_Rm203 #Default name PS123456 In the example, a print server with an IP address of 192.10.2.54 is called PS_Rm203 and has a default name of PS123456. Add to the Ethernet Address table /etc/ethers: 00:c0:02:xx:yy:zz NAME Use these definitions for entering the information:...

  • Page 117: Assigning An Ip Address To The Print Server Using Arp

    NAME NAME is the name of the print server. You should receive a response, but if you get a timeout message, the ARP procedure has failed. You can either follow the steps again for using ARP or use one of the other methods for assigning an IP address.

  • Page 118: Configuring Your Print Server Using Ftp

    Configuring Your Print Server Using FTP FTP allows a user to log on to a remote host and to manipulate files on the host. The print server can act as an FTP host. Using FTP, you can access and modify the CONFIG file in the print server.

  • Page 119: List Of Ftp Files And Commands Supported By The Print Server

    Copy the CONFIG file back to the print server and then reset the device by using the commands: ftp NAME ftp>put CONFIG ftp>get RESET Quit by using the command: ftp>quit List of FTP Files and Commands Supported by the Print Server Table 6-1 lists the file names that appear in the directory.

  • Page 120: Setting The Print Method

    file, use the get RESET command; all LEDs should turn on and then off while the print server is resetting. put PASSWORD Copies the password file to the print server and gives it a new password. Passwords can be up to 19 bytes in length.

  • Page 121: Lpd Configuration And Printing

    • Configuring LPD on IBM AIX 4.15 Before proceeding, make sure that the print server has been assigned an IP address. To set up your AIX system for LPD printing: Type the name of your print server, adding it to the /etc/hosts.lpd file.

  • Page 122: Configuring Lpd On System V

    • file_name is the file you want to print. Configuring LPD on System V Before beginning LPD Setup, make sure that an IP address has been assigned to your print server and that the following statements apply: • The remote host name is the name of the print server.

  • Page 123: Configuring Lpd On Bsd

    Sample command should be entered as one line, using a tab character where shown. Configuring LPD on BSD Make sure that an IP address has been assigned to the print server and the following statements apply: • The remote host name is the name of the print server.

  • Page 124: Printing Using Lpd

    LPD. The definitions used in the sample commands are: • printer_name is the print queue serviced by the logical printer on the print server. • Spooler_dir is the name of the directory used to spool the print jobs.

  • Page 125: Printing Using Ftp

    Ln is the logical printer you want to print to. Printing Using DSI Logical printers must be configured on the print server. Even if you are using the Model PS110 or Model PS113 Print Server that normally supports up to eight logical printers, using DSI to print limits the support to three logical printers.

  • Page 126: Using Advanced Management Tools

    NetWare file server and the print server in a single command line under MS-DOS. Configuring Using the FirstGear Print Server Administration Program Before you begin this section, you must first install the NETGEAR FirstGear print server software on your PC. Refer to, Chapter 2, Using Advanced Management Tools Using Advanced Management Tools “Installation,”...

  • Page 127: Figure 7-1. Netgear Print Server Administration Program

    Figure 7-1. NETGEAR Print Server Administration Program All active NETGEAR print servers are listed on the screen as shown. If there is any print server missing from the screen, you may click on the Browse button to scan the network one more time.

  • Page 128: Figure 7-2. Firstgear Setup Utility Quick Setup Screen

    7-2. Choosing the Quick button performs a quick configuration of the print server in a Microsoft network running the NetBEUI protocol. Click on the Advanced button for detailed full configuration of the print server. Refer to “Advanced Print Server Figure 7-2.

  • Page 129: Advanced Print Server Configuration

    The Advanced Print Server Configuration screen contains the fields listed on tabs that can be selected in any order to customize the configuration of the print server. The following field tabs are provided by the Advanced Print Server Configuration screen: •...

  • Page 130: System Menu Tab

    Any configuration change is lost unless you click on the Save to Device button at the bottom of the field window to send the configuration to the print server. When moving into a new field screen, all settings in the previous screen are lost. It is essential that you make a decision on the present field screen whether to abandon or save the new parameters into the print server.

  • Page 131: Netware Pserver Menu Tab

    EngPrsv). This name is used in all protocols to identify the specific print server. There is a factory default name. For any change, NETGEAR recommends that a name be determined before setting the print server in any network. This name should be no more than 16 characters.
  • Page 132 Indicates if the print server is in NetWare PSERVER mode. If this button is not selected, you will not be able to modify the following PSERVER parameters. Remote Printer Mode When selected, the print server operates in RPRINTER mode. The print server can operate only in one of the two modes.
  • Page 133 Type in the same password twice and click the Save to Device button to confirm the password entry. When a print server object is created in the file server, the password for the print server is set to Null (no password protection). The factory default password for the print server is also set to Null.

  • Page 134: Netware Rprinter Menu Tab

    When selected, the print server operates in RPRINTER mode. If this button is not selected, you will not be able to modify the following RPRINTER parameters. Novell Printer Server Enter the name of the NetWare print server to service the PRINTER 1 port of the for P1 print server.

  • Page 135: Tcp/Ip Menu Tab

    Enter the name of the NetWare print server to service the PRINTER 2 port of the for P2 print server. If there is no PRINTER 2 port on the print server, this selection is not available and is shadowed out.

  • Page 136: Table 7-5. Tcp/Ip Menu Tab Fields

    fixed IP address in the following fields. IP Address This IP address is assigned to the print server. If you have a private LAN and do not plan to connect to the TCP/IP-based internet, NETGEAR recommends that you use the address from the IETP-designated private addresses (for example, 192.168.x.x or...

  • Page 137: Logical Port Menu Tab

    Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server Logical Port Menu Tab Figure 7-7 shows the Logical Port menu tab, and Table 7-6 lists the fields in the menu tab, describes their functions, and explains how to provide information in each field.

  • Page 138: Advanced Print Server Configuration Menu Bar

    Control Menu Bar Option Control, the first item on the top menu bar is for print server control. Click on the Control selection, move the cursor down to select one of the menu selections and click again to carry out the intended action.

  • Page 139: Printer Menu Bar Options

    Also on display is the printing information indicating if the print server is sending data to the printer or if the printer is idling. At the bottom of the screen are four buttons as described in Table Table 7-8.

  • Page 140: Configuring Using Psconfig

    NetWare IPX/SPX protocol, IPXODI.COM This program provides the IPX protocol support for the adapter card. To start the PSCONFIG program, execute it from the \DOS directory of the Model PS104/PS105/ PS110/PS113 Print Server Resource CD. When the PSCONFIG program is executed, you see a list of the print servers on the attached network.

  • Page 141: Changing Configuration Menu Options

    Print Diagnostics Sends a test page to the printer that is connected to one of the print server ports. The Report printout includes print server status information, which is useful in troubleshooting any printing problem.

  • Page 142: Netware Print Server Mode

    This entry field is valid only when the print server is operating in PSERVER mode. NDS Tree Name This is the NDS tree that the NETGEAR print server logs on. The name must not (NDS mode only) exceed 19 characters or contain any space. This entry field is valid only when the printer server is operating in PSERVER mode.

  • Page 143: Tcp/Ip Configuration

    IP Address This IP address is assigned to the print server. If you have a private LAN and do not plan to connect to the TCP/IP-based Internet, NETGEAR recommends that you use an address from the IETP-designated private addresses (for example, 192.168.x.x or 10.x.x.x).

  • Page 144: Netbeui Configuration

    Drop Job as Paper Out Set to YES to terminate the current print job when a printing error is encountered. When set to NO (default), the print server tries to continue but may cause print errors. If any error occurs, try setting this value to YES.

  • Page 145: Logical Printer Configuration

    Logical Printer Configuration For the print server with one printer port, there are three logical printers. For print server models with two printer ports, there are eight logical printers. You can define how each one of the logical printers will map into the physical port. The following table shows how the four parameters are related to each logical printer.

  • Page 146: Configuring Using Quickset

    This section describes how to use the QUICKSET program to configure the Novell server and the print server. Use QUICKSET /? to display the help screen. You must have the following software and drivers loaded prior to executing the QUICKSET program: •...

  • Page 147: Table 7-14. Parameters And Definitions For Pserver Mode

    QUICKSET PS123456 /UN=Marketing /FS=Net311 The print server PS123456 has been set up in NetWare PSERVER mode. The new name of the NETGEAR print server is Marketing, and it is attached to the master file server Net311. • In the NDS environment...

  • Page 148: Netware Remote Printer (Rprinter) Mode

    Set the print server name as specified in the parameter list The QUICKSET program configures all of the printer ports on the printer to service the same NetWare print server. If you want to configure the printer ports to service different NetWare print servers, refer to “Attaching to More Than One NetWare Print...

  • Page 149: Table 7-15. Parameters And Definitions For Rprinter Mode

    The default NETGEAR print server name, as displayed on the bar code label on the bottom of the unit. R is the name of the NetWare print server created on the file server to which the NETGEAR print server (in RPRINTER mode) will connect.

  • Page 150: Technical Specifications

    This appendix provides technical specifications for the NETGEAR Model PS104 Print Server, Model PS105 Print Server, Model PS110 Print Server, and Model PS113 Print Server. General Specifications Network Protocol and Standards Compatibility IEEE 802.3u, 100BASE-TX, Fast Ethernet IEEE 802.3i 10BASE-T CSMA/CD...
  • Page 151 Power Specifications for the Print Server Power consumption: Input voltage: Physical Specifications Width: Height: Depth: Weight: Environmental Specifications Operating temperature: Operating humidity: Electromagnetic Emissions Meets requirements of: Safety Agency Approvals, Power Adapter Meets requirements of: 7 W maximum 12 V DC at 0.8-1.2 Amps, maximum 7.4 in.

  • Page 152: Understanding Ip Addresses

    This appendix provides information about understanding IP addresses, which you must assign to the NETGEAR Model PS104/PS105/PS110/PS113 print server when operating in a TCP/IP environment. IP Addresses and the Internet Because TCP/IP networks are interconnected widely across the world, every machine on the Internet must have a unique address to make sure that transmitted data reaches the correct destination.

  • Page 153: Figure B-1. Three Main Address Classes

    There are five standard classes of IP addresses. These address classes have different ways of determining the network and host sections of the address, allowing for different numbers of hosts on a network. Each address type begins with a unique bit pattern, which is used by the TCP/IP software to identify the address class.

  • Page 154: Netmask

    Class E addresses are for experimental use. This addressing structure allows IP to uniquely identify each physical network and each node on each physical network. For each unique value of the network portion of the address, the base address of the range (host address of all zeros) is known as the network address and is not usually assigned to a host.

  • Page 155: Subnet Addressing

    Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server Subnet Addressing By looking at the addressing structures, you can see that even with a Class C address there are a large number of hosts per network. Such a structure is an inefficient use of addresses if each end of a routed link requires a different network number.
  • Page 156 Although the preceding example uses the entire third octet for a subnet address, note that you are not restricted to octet boundaries in subnetting. To create more network numbers, you need only shift some bits from the host address to the network address. For instance, to partition a Class C network number (192.68.135.0) into two, you shift 1 bit from the host address to the network address.

  • Page 157: Private Ip Addresses

    255.255.255.248 255.255.255.252 255.255.255.254 255.255.255.254 NETGEAR strongly advises that all hosts on a LAN segment use the same netmask for the following reasons: • So that hosts recognize local IP broadcast packets When a device broadcasts to its segment neighbors, it uses a destination address of the local network address with all ones for the host address.

  • Page 158: Address Resolution Protocol

    (DHCP) server. The DHCP server stores a list or pool of IP addresses, along with other information (such as gateway and DNS addresses) that it may assign to the other devices on the network. The NETGEAR Model RT328/RH348 router has the capacity to act as a DHCP server. Understanding IP Addresses...

  • Page 159: Appendix Cconfig File

    This appendix provides information for editing a CONFIG file. CONFIG files are stored in the flash EEPROM of the NETGEAR Model PS104/PS105/PS110/PS113 print server and used for configuring the device using the FTP method. For more information about using the CONFIG file and to see an example of FTP commands, refer to...
  • Page 160 0.0.0.0. If you have a router, enter the Subnet mask for the segment to which the print server is attached. Sets how long the print server should wait before retrying a TCP/IP connection that is lost. Allowable values are from 0 to 255 seconds, with 2 as the default.
  • Page 161 Each Model PS104 and Model PS105 Print Server has one parallel port and supports three logical printers. Each Model PS110 and Model PS113 Print Server, with two and three parallel ports respectively, supports eight logical printers. You cannot change the names. Each logical printer has...

  • Page 162: Appendix D Using Netware 5 Ndps

    Printing Services) under Novel NetWare 5.0. Overview The NETGEAR print server must be configured as a valid device on your TCP/IP network. To use NDPS (Novell Distributed Printing Services), the Novell server must be running Novell NetWare 5, and the PCs (clients) must be running IntranetWare Client 2.0 or later.
  • Page 163 Select NDPS Manager as the object to create. The Create NDPS Manager Object window, as illustrated in Figure D-1. Create NDPS Manager Object Window Type a name in the NDPS Manager Name. Browse the Resident Server and select where you want the NDPS Manager object to be assigned.

  • Page 164: Creating An Ndps Printer Agent

    Creating an NDPS Printer Agent To create Public Access Printers using the NDPS Manager Object in NetWare Administrator, follow these instructions. You will need to repeat the procedure for any other ports on the print server or for any other logical printers you want to use. To create an NDPS printer agent: Start the NDPS Manager object you will be using to control the Printer Agent.

  • Page 165: Figure D-3. Configure Port Handler Window

    In the Host Address IP field, enter the IP address previously assigned to the Print Server device, as illustrated in Figure D-3. Configure Port Handler Window In the Printer Name field, enter the Logical Port name on the Print Server (for example, L1).

  • Page 166: Workstation Configuration

    Workstation Configuration Before installation and configuration of the Public Access Printers on your workstation, ensure that the following statements apply: • Novell IntranetWare Client v2.2 (or later) is installed on your PC. • You have access to the Novell Printer Manager utility (Nwpmw32.exe). Installing and Configuring the Public Access Printers To install and configure public access printers: Start the Novell Printer Manager utility.
  • Page 167 This appendix provides a brief overview of IP addressing. Overview This appendix is intended only when the user has inadvertently disabled the DHCP protocol and/or assigned a wrong subnet IP address. Refer to Table E-1 describes each setting. Table E-1. IP Configuration Settings Setting Recommended Value...

  • Page 168: Figure E-1. Netgear Print Server Ip Address Configuration

    Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server Figure E-1 illustrates the NETGEAR Print Server IP Address Configuration window. Figure E-1. NETGEAR Print Server IP Address Configuration IP Setup...
  • Page 169 6-7 settings, C-1 configuring for UNIX printing, 6-1 logical printers, 5-22, 7-20 NetBEUI, 7-19 NetWare file server, 5-2 print server, advanced, 7-4 TCP/IP, 7-18 using FTP, 6-7 using PSCONFIG, 5-6, 5-9, 5-13, 5-15, 5-17, 5-21, 5-22 using QUICKSET, 7-21...
  • Page 170 using DHCP, 6-3 using DHCP server, B-7 using RARP, 6-4 IPX/SPX protocol, 6-1, 7-2 LEDs, 1-4, 2-3, 7-1 Logical Port menu tab, 7-12 logical ports, using with NetWare, 5-22 logical printers LPD, 6-10 NetWare, 5-22, 5-23 configuring, 5-22, 7-20 using, 4-31 using DSI, 6-14 LPD printing...
  • Page 171 NetWare 3.1, Binary, 5-4 Netware 4.x Binary Emulation, 5-14 publication, related, xix QUICKSET and PSERVER mode, 7-21 and RPRINTER mode, 7-23 configuring with, 7-21 RARP, using for IP address assignment, 6-4 rear panel, 1-5 RPRINTER menu tab, 7-9 RPRINTER mode and NetWare 3.x Binary mode, 5-7 and NetWare 4.x...

This manual is also suitable for:

Ps105Ps110Ps113

Table of Contents
