EVM Setup, Connections and Validation

4 EVM Setup, Connections and Validation

4.1 EVM Setup

Referencing the header connections described in
of Figure 4-1 to evaluate the performance of the TPSF12C3-Q1 in a three-phase, four-wire system. The AEF
circuit effectively replaces the Y-capacitors normally placed between the CM chokes (and tied from power lines
to chassis ground) in a conventional 2-stage, 4
L
CM1-AEF
L1
C
X1
L2
AC
C
X2
source
L3
C
X3
N
PE
Y-rated sense and
inject capacitors

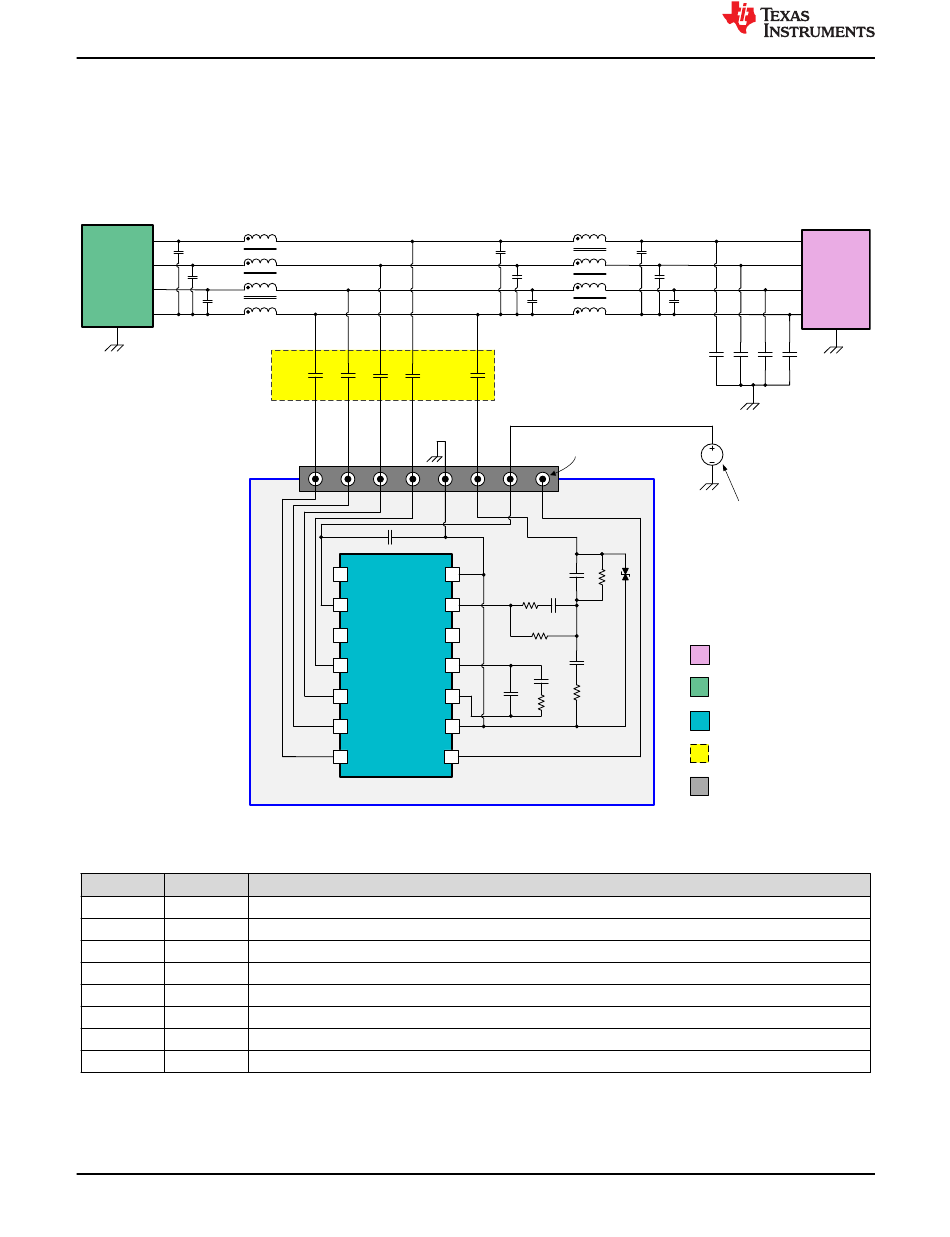

Figure 4-1. EVM Setup Schematic for a Three-Phase, Four-Wire System

(3)
POSITION LABEL
1 S4 Sense 4 input – connect to a Y-rated sense capacitor, C
2 S3 Sense 3 input – connect to a Y-rated sense capacitor, C
3 S2 Sense 2 input – connect to a Y-rated sense capacitor, C
4 S1 Sense 1 input – connect to a Y-rated sense capacitor, C
5 GND Ground – connect to the chassis ground of the system
6 INJ Inject output – connect to a Y-rated inject capacitor, C
7 VDD Supply voltage connection – connect to a 12-V bias power supply referenced to GND
8 EN Enable input – leave open or tie high to enable the IC; tie to GND to disable
(1) Refer to the TPSF12C3-Q1
(2) Working at an ESD-protected workstation, ensure that any wrist straps, bootstraps or mats are connected and referencing the user to
Earth ground before power is applied to the EVM.
(3) Pin positions of header J1 designate left to right when viewed from the top side of the EVM.
