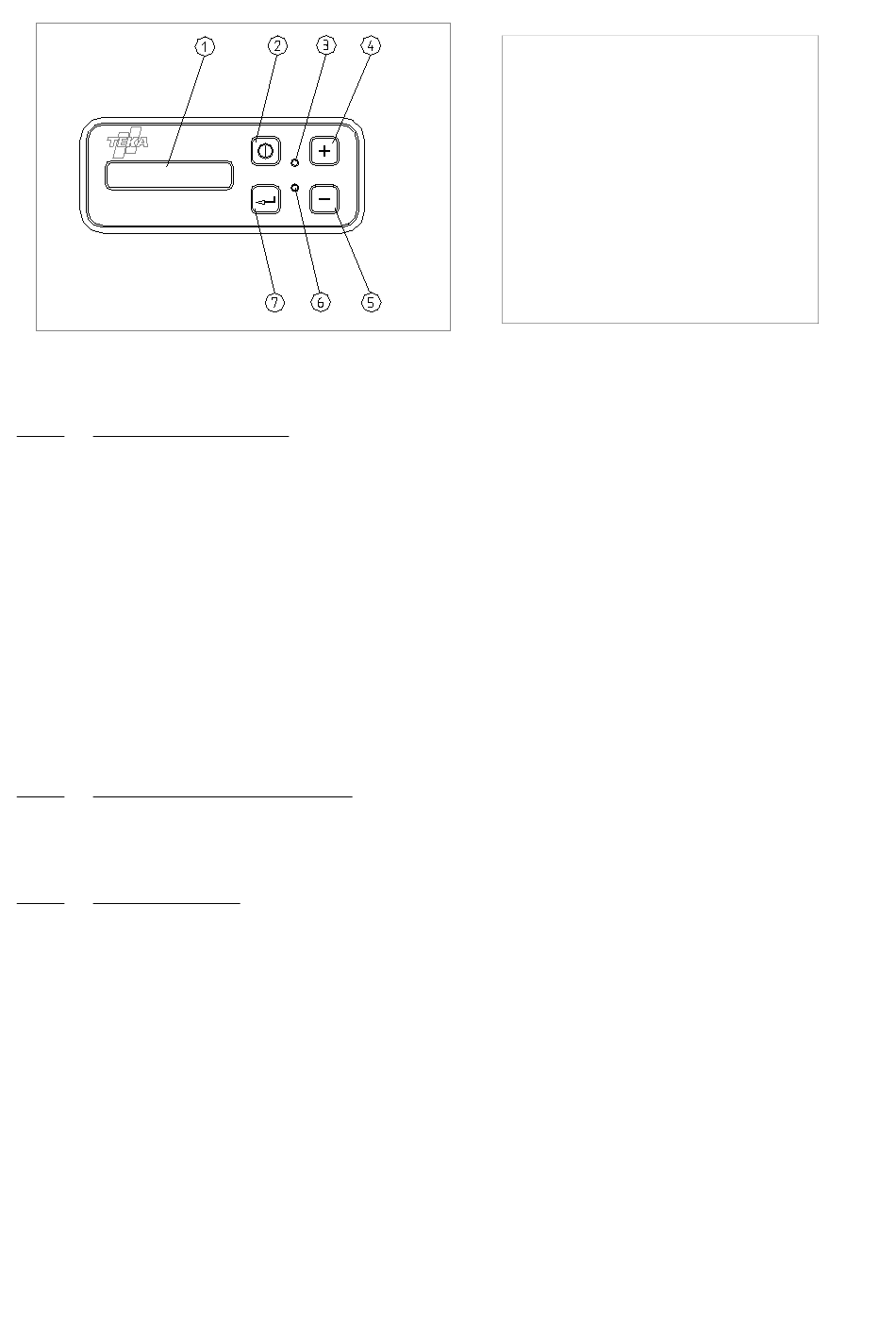

Illustration 2: Transparent announcement, transparency keyboard
3.3.

Description of function

The Mistral serves for extraction of gases and smoke loaded with pollutants. With a connected suction hose
between the machine which can be exhausted and the Mistral.
The Mistral is switched on and/or headed for either at its transparency keyboard or by the controlling of the
machine which can be exhausted (remote switching mechanism).
The gas/smoke are sucked in by the suction hose into the filter housing with the assigned filter-unit.
The Mistral consists of the following filter stages:
–
Filter-unit and
–
Activated carbon filter.
Through the turbine underneath the activated carbon filter the clean gas is sucked in and blown out through
the exit grille (Pos.15) attached in the back, to the ambient air.
3.4.

Connection to external control

For the operation of the Mistral with a remote switching mechanism a control cable with a Sub-D9-plug is
needed. The pin allocation of the Sub-D9-plug (see in section 5,1) is to be considered!
3.5.

Protective device

The Mistral is equipped with protection device, that with intended use of the Mistral no dangers for security
and health of the operator and/or third exist.
The entire Mistral is designed and manufactured according to the current state of the art and the recognised
safety-relevant rules. In order to ensure the safe operation for personnel and environment, the
precautions/safety devices described in the following were taken and/or installed.
Unauthorised removing or bridging (go around) of protection device represents a punishable action. In the
case of loss each liability claim expires.
The turbine is secured by a shield and/or a grille, which can be removed only with tool.
All elements of the control systems place themselves with power failure or announced disturbances into a
safe condition for operators, Mistral and environment.
All live construction units are secured against contact (isolated) and with sufficient estimate distance installed.
Live building groups are built in the turbine case, and can be opened only with tool.
Operating Instructions Mistral (Plus), Mistral Eco (Plus), Mistral Super Plus 110 and 230V vers. 4.10
E rro r
R u n
1 Transparent announcement
2 Key EIN/AUS
3 LED-announcement „filter full"
4 Key +
5 Key -
6 Announcement: „Run"
7 Key ENTER
Page 17 of 47
