M O D U L E S P E C I F I C A T I O N S
A
Antenna specifications — 2 dBi Dipole
Antenna Attribute
Connector
Temperature rating
Part number

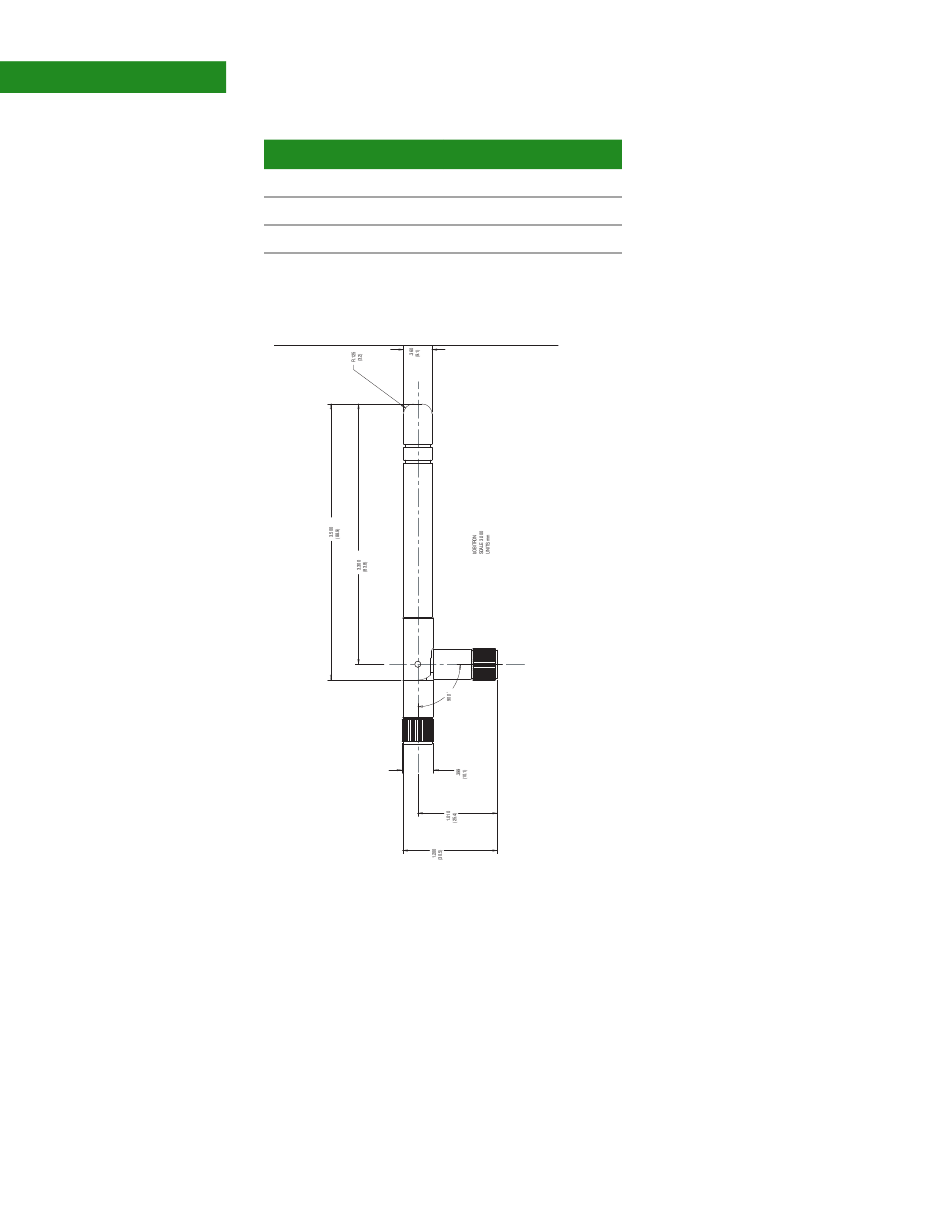

Dimensions

Note:
This diagram shows the strength of the signal received by the whip antenna on both
Antenna strength
a horizontal and vertical plane. The diagram shows the magnetic field when the
(radiation
pattern) diagram
antenna is in a vertical position. The red solid line represents the horizontal plane
and the green dotted line represents the vertical plane. You can see in the
illustration that at 90 degrees, the signal strength is 0 (as expected).
ConnectCore 9C/Wi -9C Hardware Reference, Rev D 05/2010
82
2 dBi Dipole
RP-SMA
-40 – +80C
DC-ANT-20DP-BG
Dimensions are provided for reference purposes only. The actual antenna
might vary.
