About the Modules
Common module
features
www.digiembedded.com
C H A P T E R
T

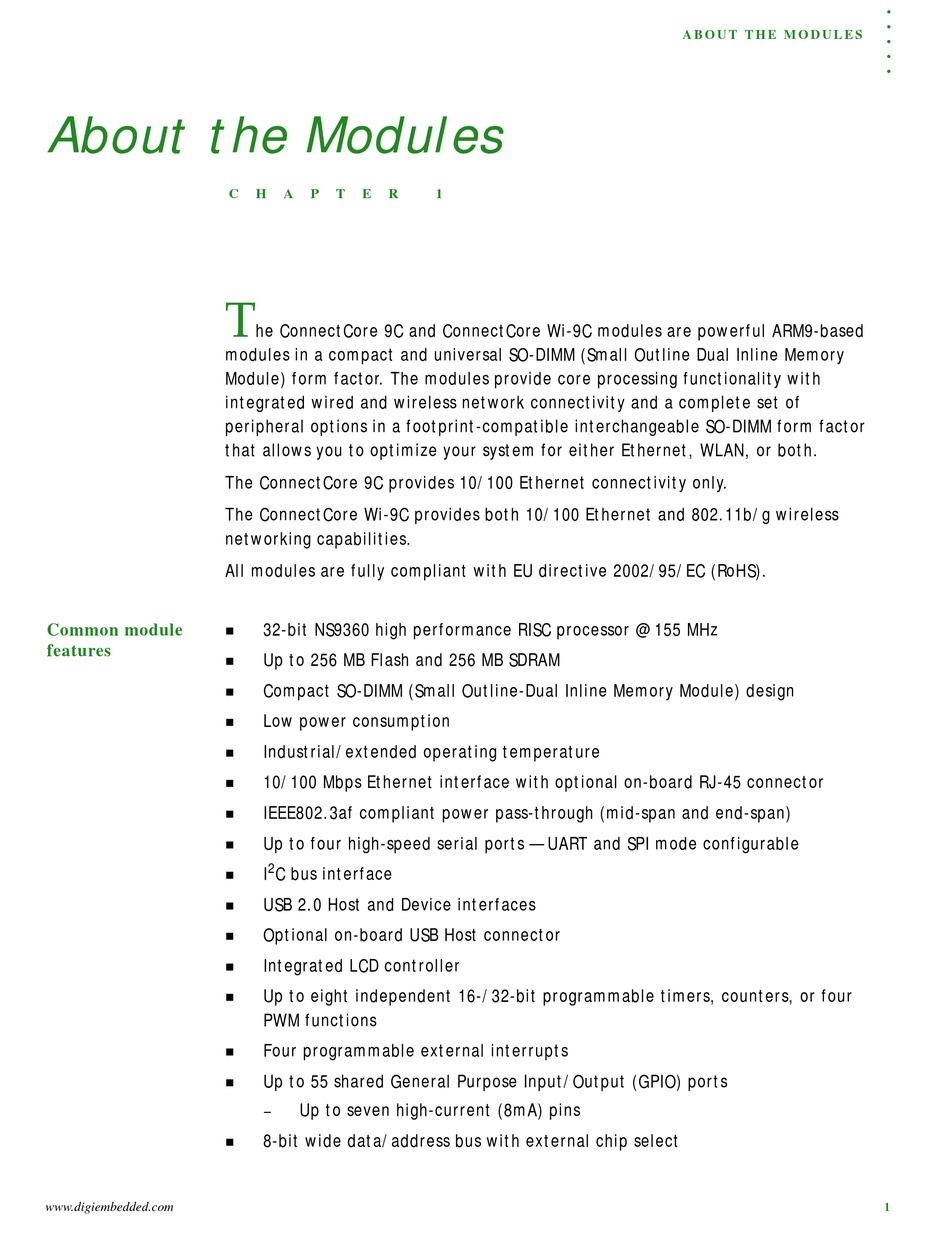

he ConnectCore 9C and ConnectCore Wi-9C modules are powerful ARM9-based
modules in a compact and universal SO-DIMM (Small Outline Dual Inline Memory
Module) form factor. The modules provide core processing functionality with
integrated wired and wireless network connectivity and a complete set of
peripheral options in a footprint-compatible interchangeable SO-DIMM form factor
that allows you to optimize your system for either Ethernet, WLAN, or both.
The ConnectCore 9C provides 10/100 Ethernet connectivity only.
The ConnectCore Wi-9C provides both 10/100 Ethernet and 802.11b/g wireless
networking capabilities.
All modules are fully compliant with EU directive 2002/95/EC (RoHS).
32-bit NS9360 high performance RISC processor @ 155 MHz

Up to 256 MB Flash and 256 MB SDRAM

Compact SO-DIMM (Small Outline-Dual Inline Memory Module) design

Low power consumption

Industrial/extended operating temperature

10/100 Mbps Ethernet interface with optional on-board RJ-45 connector

IEEE802.3af compliant power pass-through (mid-span and end-span)

Up to four high-speed serial ports — UART and SPI mode configurable

2
I C bus interface

USB 2.0 Host and Device interfaces

Optional on-board USB Host connector

Integrated LCD controller

Up to eight independent 16-/32-bit programmable timers, counters, or four

PWM functions
Four programmable external interrupts

Up to 55 shared General Purpose Input/Output (GPIO) ports

– Up to seven high-current (8mA) pins
8-bit wide data/address bus with external chip select

