Assembly

www.digiembedded.com
Plug the
1
debugger
ribbon cable
into the
connector
labeled P1 on
the JTAG
adapter.
Plug the
2
Step 2: Plug this end
adapter
of the cable into the
ribbon cable
P2 connector on the
module.
(attached to
P2 on the
adapter) into
the P2
connector on the module.
W H A T ' S O N T H E M O D U L E ?

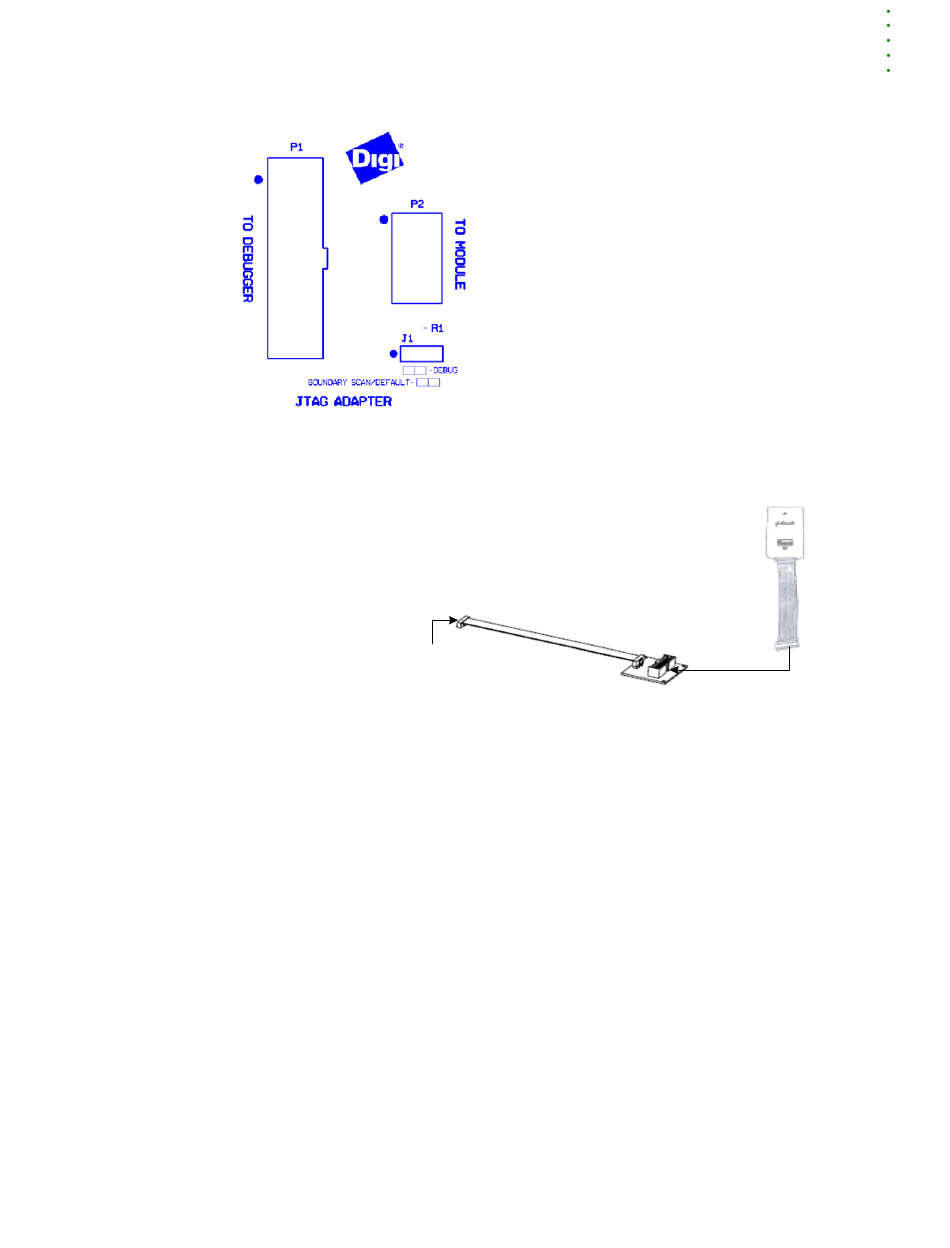

This drawing shows the JTAG adapter with a 3-
pin J1 header. The pin positions for debug and
boundary scan are shown in the lower right of
the drawing:
For debug mode — Plug a jumper on pins 1 and
2.
For boundary scan mode (the default) — Plug a
jumper on pins 2 and 3.
Ribbon cable to attach
adapter to module
P1
P2
JTAG adapter assembly
Digi JTAG Link USB
debugger
20-pin female
connector
Step 1: Plug the
debugger ribbon cable
into the connector
labeled P1 on the JTAG
adapter.
17
