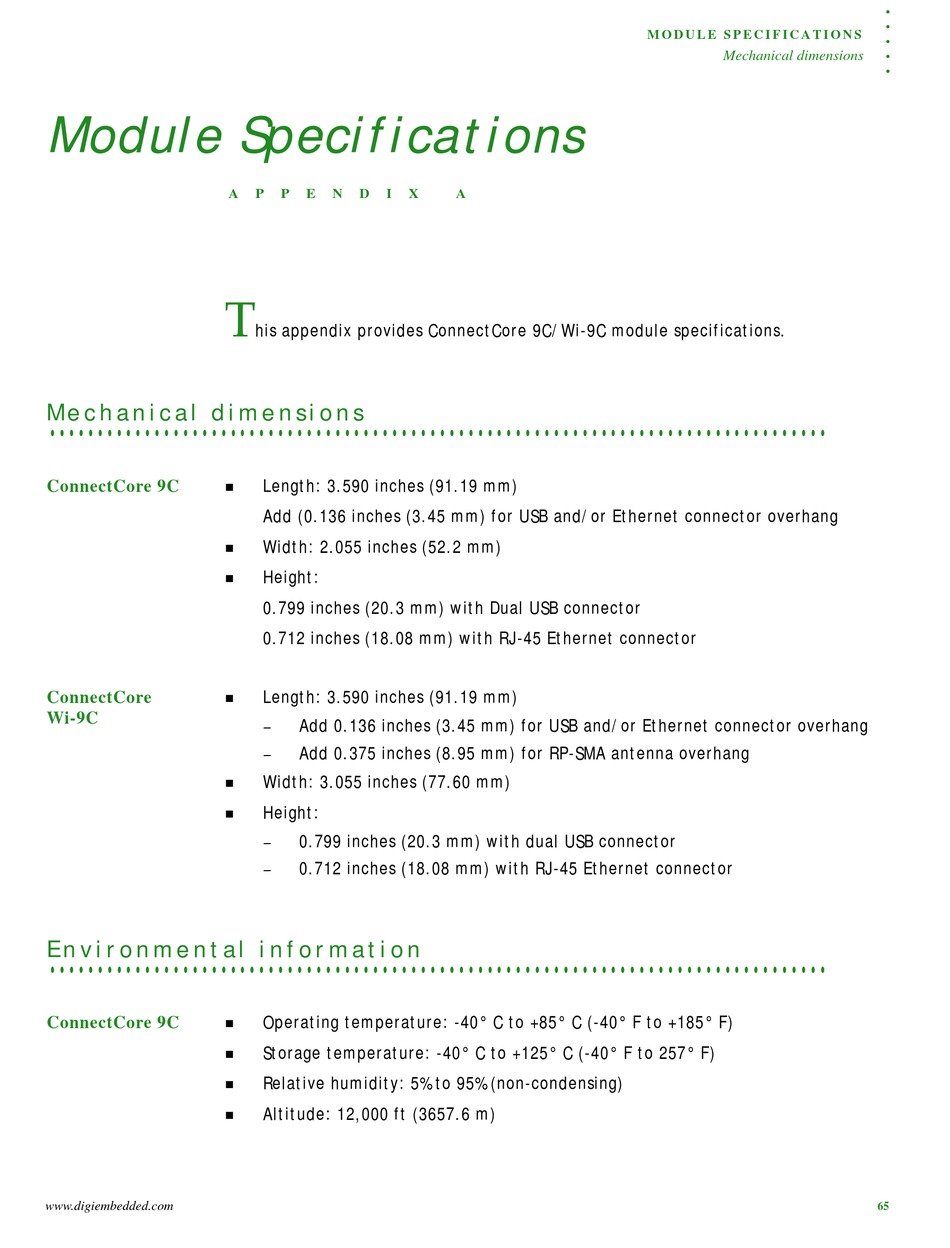

Module Specifications
M e c h a n i c a l d i m e n s i o n s
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ConnectCore 9C

ConnectCore
Wi-9C
E n v i r o n m e n t a l i n f o r m a t i o n
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ConnectCore 9C
www.digiembedded.com
A P P E N D I
T
his appendix provides ConnectCore 9C/Wi-9C module specifications.
Length: 3.590 inches (91.19 mm)

Add (0.136 inches (3.45 mm) for USB and/or Ethernet connector overhang
Width: 2.055 inches (52.2 mm)

Height:

0.799 inches (20.3 mm) with Dual USB connector
0.712 inches (18.08 mm) with RJ-45 Ethernet connector
Length: 3.590 inches (91.19 mm)

– Add 0.136 inches (3.45 mm) for USB and/or Ethernet connector overhang
– Add 0.375 inches (8.95 mm) for RP-SMA antenna overhang
Width: 3.055 inches (77.60 mm)

Height:

0.799 inches (20.3 mm) with dual USB connector
–
– 0.712 inches (18.08 mm) with RJ-45 Ethernet connector
Operating temperature: -40° C to +85° C (-40° F to +185° F)

Storage temperature: -40° C to +125° C (-40° F to 257° F)

Relative humidity: 5% to 95% (non-condensing)

Altitude: 12,000 ft (3657.6 m)

X A
M O D U L E S P E C I F I C A T I O N S

Mechanical dimensions
