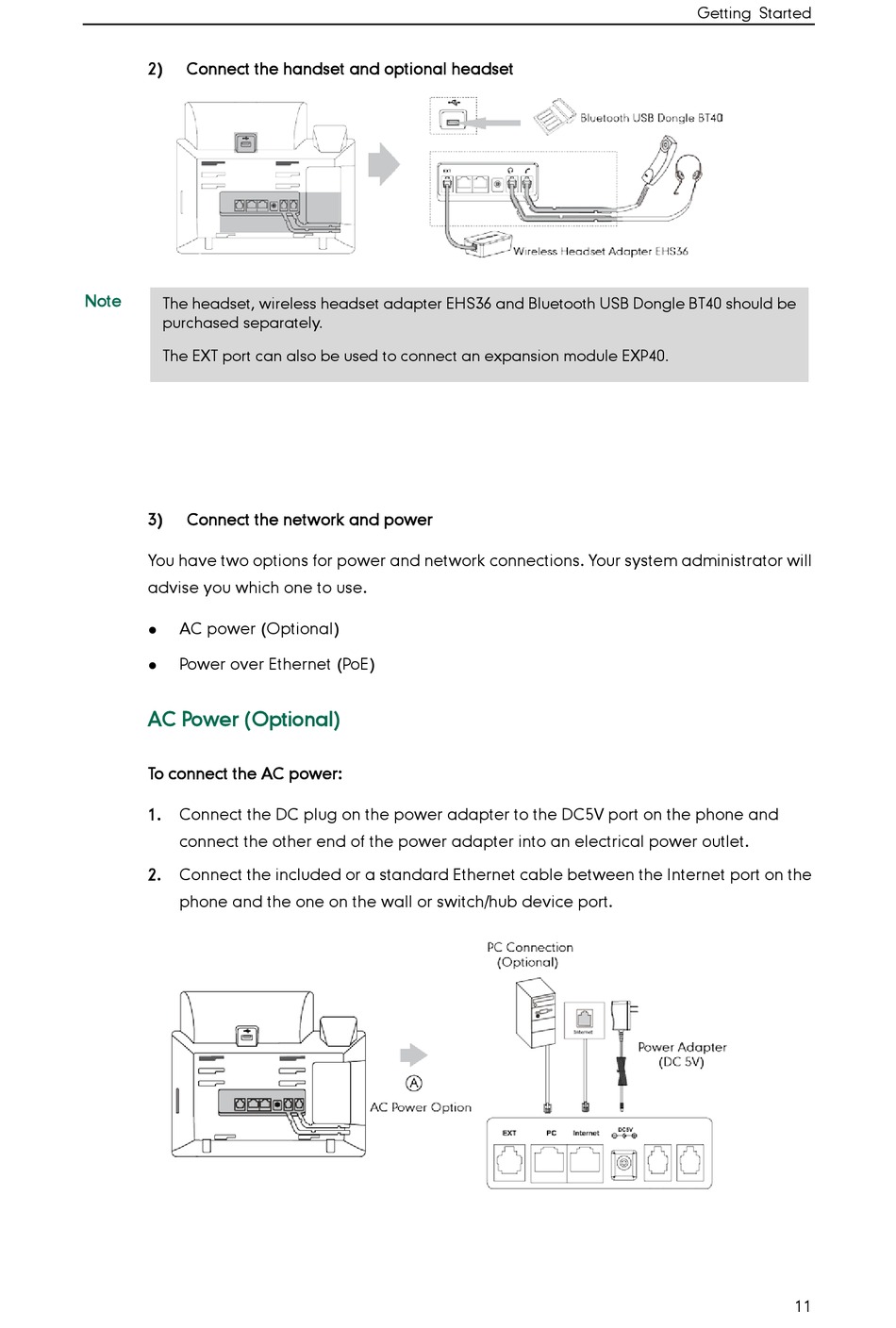

2) Connect the handset and optional headset
Note
The headset, wireless headset adapter EHS36 and Bluetooth USB Dongle BT40 should be
purchased separately.
The EXT port can also be used to connect an expansion module EXP40.
3) Connect the network and power
You have two options for power and network connections. Your system administrator will
advise you which one to use.
AC power (Optional)

Power over Ethernet (PoE)

AC Power (Optional)
To connect the AC power:
1. Connect the DC plug on the power adapter to the DC5V port on the phone and
connect the other end of the power adapter into an electrical power outlet.
2. Connect the included or a standard Ethernet cable between the Internet port on the
phone and the one on the wall or switch/hub device port.
Getting Started
11
