Indications and Operation

Indications

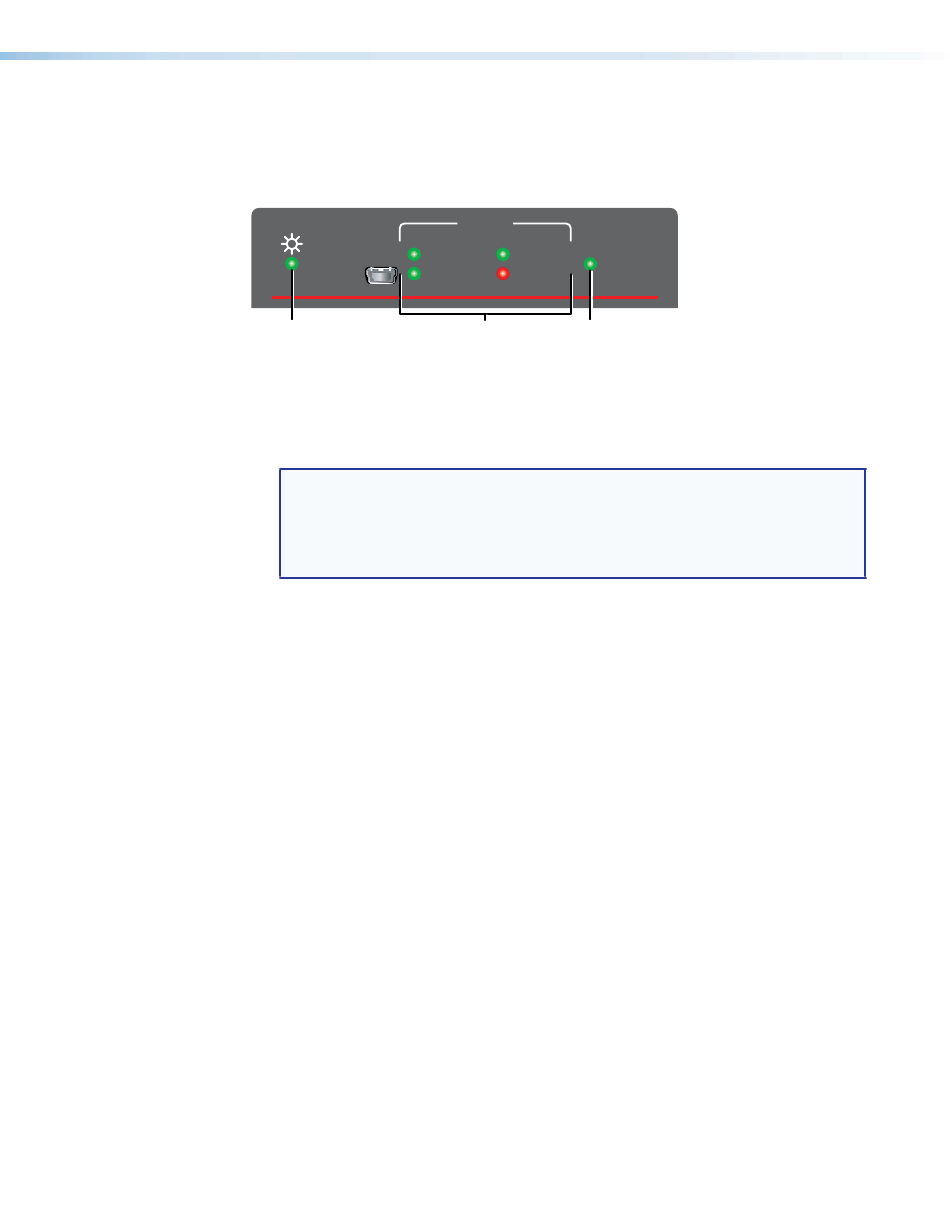

All indicators are on the front panel (see figure 7).
Figure 7.
A
B
C

Operation

After the transmitter, the connected receiver, and their connected devices are powered up,
the system is fully operational. If any problems are encountered, verify that the cables are
routed and connected properly, and that the display device has the proper resolution and
refresh rate selected. If your problems persist, call the Extron S3 Sales & Technical Support
Hotline. See the contact numbers at the
To take advantage of the various adjustments and test patterns available in the transmitter,
you need to connect a computer or other USB device to the front panel Configuration port
on either unit and operate using SIS commands (see
the next page).
2.97 Gbps
CONFIG
1.485 Gbps
Extron
A A
FOXBOX T HD-SDI Transmitter Indicators
Power indicator — Indicates that the transmitter is receiving power.
Rate indicators — Indicate the input video rate detected on the 3G/HD/SDI input BNC.
The recognized rates are 2.97 Gbps, 1.485 Gbps, and 270 Mbps. The Unknown LED
indicates that an input is detected, but that the transmitter does not recognize the rate.
NOTES:
• All four Rate LEDs blink repeatedly if a fiber optic connector module on the rear
of the unit is unseated.
•
The transmitter equalizes and distributes the input whether it recognizes the
rate or not.
Audio indicator — Indicates that the transmitter is detecting a digital or analog audio
input.
FOXBOX T HD-SDI Fiber Optic Transmitter • Installation and Operation
RATE
270 Mbps
AUDIO
Unknown
FOXBOX T HD-SDI
B B C C
end of this guide for the Extron office nearest you.
Programming Guide, beginning on
9
