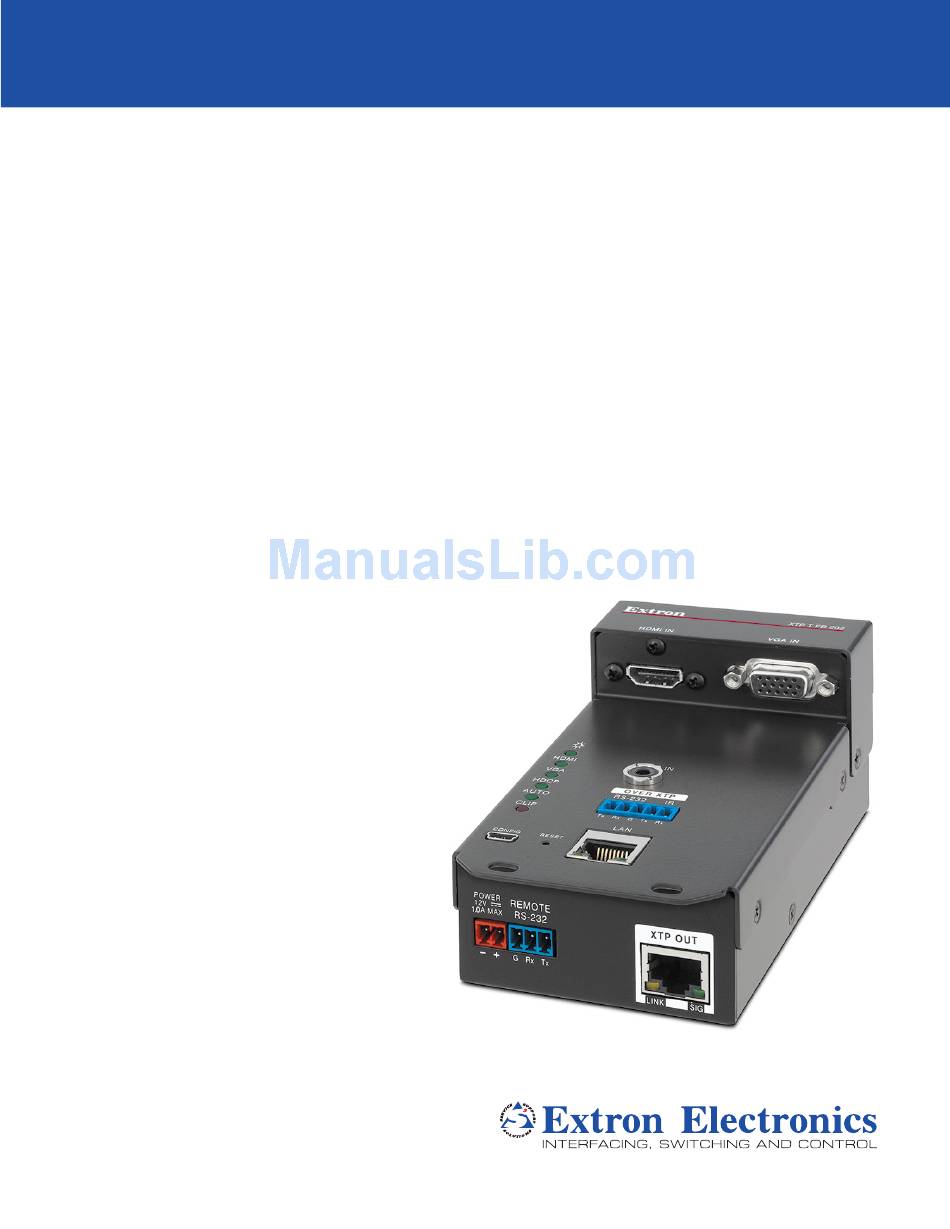

- Page 1 User Guide XTP Extender XTP T FB 202 Two-input Universal Floor Box Twisted Pair Transmitter 68-2292-01 Rev. A 11 13...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Инструкция по технике безопасности • Русский WARNING: This symbol, , when used on the product, is intended to ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан alert the user of the presence of uninsulated dangerous voltage within the на... - Page 3 Compliance Guide” on the Extron website. Copyright © 2013 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks , registered service marks...
- Page 4 Conventions Used in this Guide Notifications The following notifications are used in this guide: A warning indicates a situation that has the potential to result in death or WARNING: severe injury. ATTENTION: Attention indicates a situation that may damage or destroy the product or associated equipment.
-
Page 5: Table Of Contents
SIS Configuration and Control ........... 1 ....18 About this Guide ..........1 Host Device Connection ........18 About the XTP T FB 202 ........1 SIS Programming Guide ........18 Key Features ............2 Host-to-Device and Device-to-Host Communication ........... 18 Device-Initiated Message ...... - Page 6 XTP T FB 202 • Contents...
-
Page 7: Introduction
This guide contains installation, and control procedures, and reference information for the XTP T FB 202 Universal Floor Box Twisted Pair Transmitter. In this guide, the terms “XTP T FB 202” and “transmitter” are used interchangeably to refer to the XTP T FB 202 Universal Floor Box Twisted Pair Transmitter. -
Page 8: Key Features
The following diagram shows a typical application of the XTP T FB 202. Laptop HDMI D IO W ER D IF 1. 0 S /P R EM Extron R S- O TE D IO HDMI XTP T FB 202 -2 32... - Page 9 Ethernet pass-through port to reduce the amount of independent network drops required within a system. Remote power capability — To simplify integration, the XTP T FB 202 can be powered by an XTP CrossPoint matrix switcher or an XTP Power Injector.
-
Page 10: Installation
Connection and Wiring Details Installation Overview Install the XTP T FB 202 into an Ackermann GB3 (OBO Bettermann), MK Electric CableLink Plus Modular, MK Electric CableLink Plus Single Pan, Electraplan, or PUK floor box. CAUTION: Risk of personal injury. Failure to check the items listed below may result in personal injury. -
Page 11: Adapter Plates
NOTE: The 995242 adapter plate is only used for position 2 of the Ackermann GB3 (OBO Bettermann) floor box. Determine the position in the floor box to install the XTP T FB 202. Each compatible floor box contains three positions to install devices (see figure 2). - Page 12 Single Pan Floor Box Figure 4. Installing 995243 Adapter Plates Rotate the adapter plate down so the bottom flange rests against the wall of the floor box. Figure 5. Fixing the Adapter Plate (995241 Shown) in Place XTP T FB 202 • Installation...
-
Page 13: Side Panel Connectors
Wire the connector as shown in figure 8. REMOTE RS-232 G Rx Tx Do not tin the wires! Controlling Device Bidirectional Transmit (Tx) Transmit(Tx) Receive (Rx) Receive (Rx) Ground (G) Ground(G) Figure 8. RS-232 Wiring XTP T FB 202 • Installation... -
Page 14: Connectors Above The Adapter Plates
(see Power Connection on page 15). The Power LED lights to indicate the device is receiving power. NOTE: The XTP T FB 202 can be powered remotely (see Remote power page 16). Connectors Above the Adapter Plates POWER... -
Page 15: Top Panel Features
2 poles labeled “IR” and shares the ground pole with the Tx Rx G Tx Rx RS-232 port. NOTE: RS-232 and IR data can be transmitted simultaneously (see RS-232 and IR Over XTP Communication on page 14 for wiring details). XTP T FB 202 • Installation... -
Page 16: Mounting
Adapter Plates on page 5). Align the screw holes on the XTP T FB 202 with the screw holes on the adapter plates. Using the provided self-threading screws and washers, secure the XTP T FB 202 to the adapter plates (see figures 12 though 15). -
Page 17: Mk Electric Cablelink Plus Single Pan Floor Box
XTP T FB 202 (shown in Cablelink Single Pan floorbox assembly) Figure 13. Mounting the XTP T FB 202 into an MK Electric CableLink Plus Single Pan Floor Box ATTENTION: Do not install the XTP T FB 202 in position 2 (see figure on page 5). -
Page 18: Electraplan Or Puk Floor Box
(shown in Electraplan floorbox assembly) Figure 15. Mounting the XTP T FB 202 into an Electraplan or PUK Floor Box Connection and Wiring Details HDMI Connection Use an Extron LockIt Lacing Bracket to secure an HDMI cable to the HDMI connector as follows: Figure 16. -
Page 19: Tp Cable Termination And Recommendations
Connector Figure 17. TP Cable Termination Supported cables The XTP T FB 202 is compatible with CAT 5e, 6, 6a, and 7 shielded twisted pair (F/UTP, SF/UTP, and S/FTP) and unshielded twisted pair (U/UTP) cable. ATTENTION: • Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the XTP products. -
Page 20: Rs-232 And Ir Over Xtp Communication
The length of exposed wires is critical. The ideal length is 3/16 inch (5 mm). • Longer bare wires can short together • Shorter wires are not as secure in the connectors and could be pulled out. XTP T FB 202 • Installation... -
Page 21: Power Connection
Output Cord Figure 19. Power Wiring The XTP T FB 202 can be connected to a local power supply. Electric shock hazard. The two power cord wires must be kept separate WARNING: while the power supply is plugged in. Remove power before wiring. - Page 22 Remote power The XTP T FB 202 can be powered remotely through an XTP Power Injector or through an XTP matrix switcher. ATTENTION: XTP remote power is intended for indoor use only. No part of the network that uses XTP remote power should be routed outdoors.
-
Page 23: Operation
EDID Commands on page 23). The XTP T FB 202 can record and save EDID in a user memory location, select a pre-defined EDID, or use EDID from a display connected to a receiver. EDID stored in the user memory location can come from the display connected to a receiver or a custom EDID imported through the XTP System Configuration Software. -
Page 24: Sis Configuration And Control
Use a computer running the HyperTerminal or Extron DataViewer utility, or a control system to enable serial control of the switcher. To connect directly to an XTP T FB 202, connect the computer to the XTP T FB 202 through the top panel USB Config port or the side panel RS-232 connector. -
Page 25: Error Responses
Error Responses When the XTP T FB 202 receives an SIS command and determines that it is valid, it performs the command and sends the corresponding response to the host device. If the command is determined invalid or contains invalid parameters, the switcher returns an error response to the host. - Page 26 1280x1024 1360x768 1360x768 1366x768 1366x768 1400x1050 1400x1050 1440x900 1440x900 1600x1200 1600x1200 1680x1050 1680x1050 User location 1 1920x1080 with 2-ch audio HDMI User location 2 1920x1200 User location 3 User location 4 XTP T FB 202 • SIS Configuration and Control...
-
Page 27: Command And Response Tables For Sis Commands
= Audio gain adjustment = decibels above 0 ( = default) = Audio attenuation adjustment –18 = decibels below 0 ( = default) X& = Audio level adjustment in decibels ( = default) –18 XTP T FB 202 • SIS Configuration and Control... -
Page 28: Picture Adjustment (Analog Only) Commands
= 720p @ 50 Hz = 720p @ 60 Hz (default) = 1080p @ 60 Hz = Pixel phase = default) 0-255 = Horizontal or vertical shift = default) 65,535 32,768 = Preset number XTP T FB 202 • SIS Configuration and Control... -
Page 29: Edid Commands
= HDCP compliant source = non-HDCP compliant source = HDCP Authorization = HDCP authorization off = HDCP authorization on (default) = EDID emulation See the EDID Emulation Table on page 20 XTP T FB 202 • SIS Configuration and Control... -
Page 30: Xtp System Configuration Software
XTP System Configuration Software The XTP T FB 202 can be configured and controlled using Extron Simple Instruction Set (SIS) commands (see SIS Configuration and Control on page 18) or the XTP System Configuration Software. This section contains installation and configuration procedures for the XTP System Configuration Software for configuring and controlling the XTP T FB 202. -
Page 31: Using The Xtp System Configuration Software
Using the XTP System Configuration Software The XTP T FB 202 can be controlled directly from the front panel config port or remotely from an XTP matrix switcher. Connections When opening the XTP System Configuration Software, the Connections screen opens first. -
Page 32: Top Menu
To access this menu, click the Tools menu. Tools Figure 25. Tools Menu NOTE: The options are not Backup and Restore Software Preference available when directly connected to the XTP T FB 202 . XTP T FB 202 • XTP System Configuration Software... -
Page 33: Update Firmware
Select file from computer connected host device. Select the desired firmware file and click the button after the firmware finishes Close updating. XTP T FB 202 • XTP System Configuration Software... - Page 34 This option opens the XTP System Configuration Software help file in a web browser. From the menu, select Help Help Extron Website This option opens the Extron website in a web browser. From the menu, select Help Extron Website XTP T FB 202 • XTP System Configuration Software...
-
Page 35: Device Settings
NOTE: The signal indicators on the AV input buttons display green when a signal is present on the corresponding input or gray when there is no signal present. XTP T FB 202 • XTP System Configuration Software... - Page 36 Auto Memory Memory. Auto Memory recalls input and image settings for signals that have previously been applied. When it is disabled, the XTP T FB 202 treats every newly applied input as a new source. HDCP authorization — Select either...
- Page 37 Save presets — To save a preset, select one from the list of presets and click the Save button. Preset Recall presets — To recall a saved preset, select the desired preset from the list of presets and click the button. Recall Preset XTP T FB 202 • XTP System Configuration Software...
- Page 38 Priority to highest active input number switch to the highest numbered active input. Click the radio button to automatically Priority to lowest active input number switch to the lowest numbered active input. XTP T FB 202 • XTP System Configuration Software...
- Page 39 HDCP — Displays the HDCP status of input 2. Audio Information section Selected audio input — Displays the input number of the currently selected audio input. Analog audio gain — Displays the analog audio gain in dB. XTP T FB 202 • XTP System Configuration Software...
- Page 40 The EDID setting is saved to the connected PC. Save EDID to PC Alternatively, right-click on the desired EDID, select , and then the EDID into Copy Paste the desired pane. XTP T FB 202 • XTP System Configuration Software...
- Page 41 Hold <Ctrl> and click the desired outputs in the Connected Outputs pane. The Common tab appears, listing the EDID settings common among the selected outputs. Timings Select the desired common EDID setting. The EDID will be shown in the Available EDID pane. XTP T FB 202 • XTP System Configuration Software...
-
Page 42: Reference Information
Updating Firmware with Firmware Loader • Updating Firmware with Firmware Loader To upload and update firmware for the XTP T FB 202, download the new firmware to a connected computer and upload the firmware with the Firmware Loader utility. Downloading Extron Firmware Loader Figure 36. -
Page 43: Installing Firmware Loader
Once Firmware Loader has been downloaded, run the .exe file from the save location. The installation wizard window opens. Follow the instructions on the Installation Wizard screens to install Firmware Loader on the computer. XTP T FB 202 • Reference Information... -
Page 44: Downloading Firmware
On the left sidebar, click the link. Firmware Navigate to the XTP T FB 202. Ensure the available firmware version is a later version than the current one on the device. NOTE: The firmware release notes are a PDF file that provides details about the changes between different firmware versions. -
Page 45: Installing Firmware With Firmware Loader
Open Firmware Loader and establish a connection between the computer and the device. The Add Device... dialog box opens. Figure 39. Add Device... Dialog Box Select XTP T FB 202 from the drop-down list. Device Name Select the method of connection from the drop-down list. - Page 46 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
