Fiber optic transmitter
Hide thumbs Also See for FOX II T HD 4K:

Advertisement

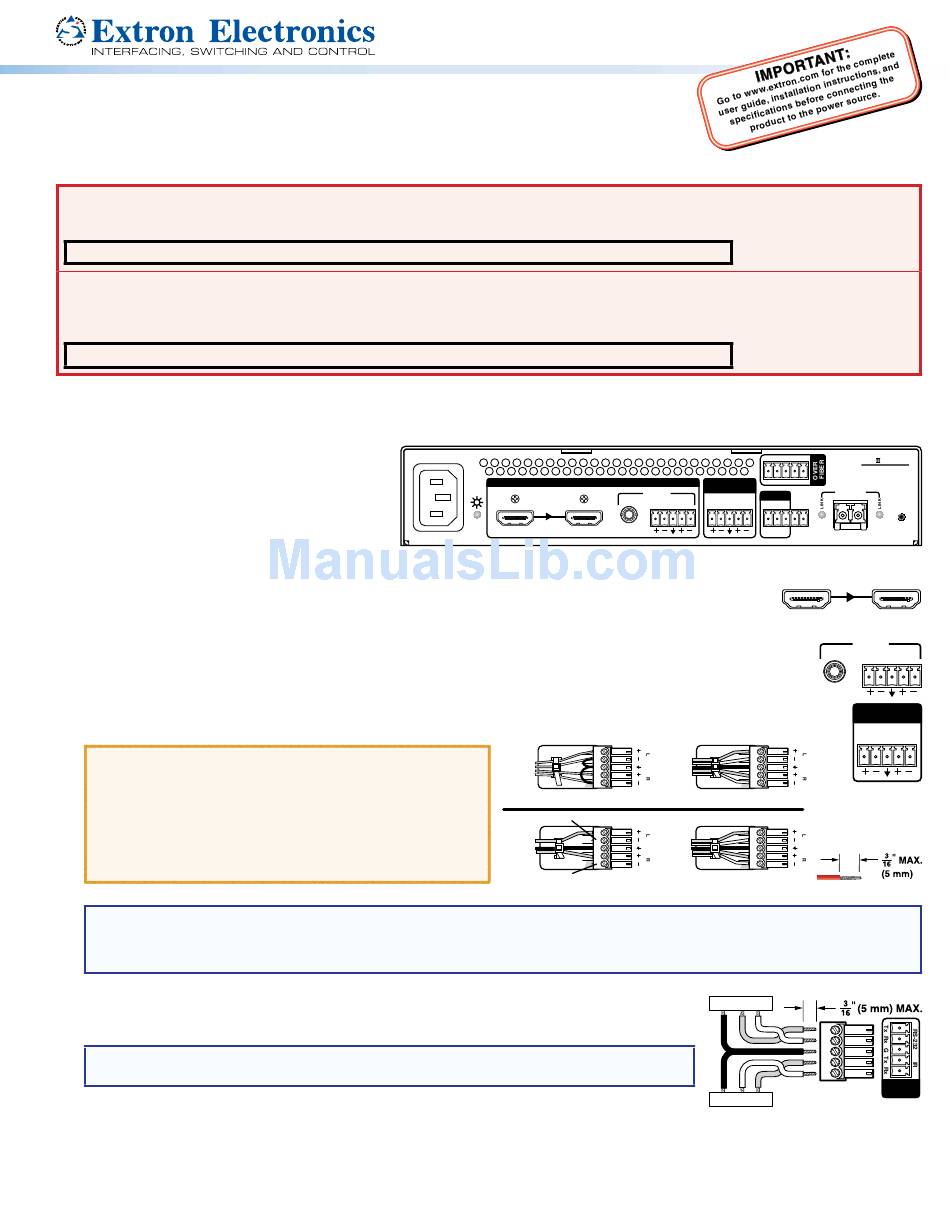

FOX II T HD 4K • Setup Guide
This guide provides quick start instructions for an experienced installer to set up and operate
the Extron FOX II T HD 4K Fiber Optic Transmitter. The transmitter is compatible with all Extron
FOX II receivers.
WARNING:
The FOX II T HD 4K outputs continuous invisible light (Class 1 rated), which may be harmful to the eyes; use with caution.
Plug the attached dust caps into the optical transceivers when the fiber cable is unplugged.
CLASS 1 LASER PRODUCT, see the FOX II T HD 4K User Guide, at www.extron.com.
AVERTISSEMENT :
pour les yeux, à utiliser avec précaution. Branchez les protections contre la poussière dans l'ensemble émetteur/récepteur lorsque
le câble fibre optique est débranché.
Produit laser de classe 1

Installation

Step 1 — Mounting
Turn off or disconnect all equipment power
sources and mount the transmitter as required.
For mounting details and considerations, see the
FOX II T HD 4K User Guide at www.extron.com.
Step 2 — Input and Output Connections
Connect an HDMI video source to the HDMI input connector.
a.
If desired, connect an HDMI video display to the Loop-Thru connector for a local display.
b.
Connect an audio input device to either the Audio 3.5 mm mini jack or the Audio 5-pole captive screw connector.
c.
See the drawing below step 2d to make connections on the captive screw connector.
For optional returned audio, connect an audio output device to the Audio Return Out 5-pole captive screw connector.
d.
See the drawing below to make connections on the captive screw connector.
ATTENTION:
For unbalanced audio, connect the sleeves to the
ground contact. DO NOT connect the sleeves to the
negative (–) contacts.
Pour l'audio asymétrique, connectez les manchons au
contact au sol. Ne PAS connecter les manchons aux
contacts négatifs (–).
NOTE: For returned audio, above, you must also do the following:
Connect an audio input device to the Audio Return In 5-pole captive screw connector on the receiver.
Install the optional Receiver-Tx-to-transmitter-Rx cable in
If you want the FOX II units to pass serial or IR data or control signals, such as for serial
e.
control of a projector, connect the master device to the transmitter and the slave device to the
receiver via the Over Fiber 5-pole captive screw connector.
NOTE: For returned RS-232 and IR responses (from the receiver to the transmitter, you must
install the Receiver-Tx-to-transmitter-Rx cable in
Le FOX II T HD 4K émet une lumière invisible en continu (conforme à la classe 1) qui peut être dangereux
, voir le FOX II T HD 4K User Guide sur
FOX II T HD 4K Transmitter Rear Panel
www.extron.com
100-240V ~ 0.5A MAX
INPUTS
HDMI
LOOP THRU
50-60 Hz
Tip
Sleeve
Tip
Sleeve
Unbalanced Stereo Input
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Stereo Output
step
3b.
step
3b.
(en anglais).
RS-232
IR
AUDIO
Tx Rx
G
Tx Rx
RETURN OUT
AUDIO
REMOTE
L
R
L
R
RS-232
ALARM
Tx Rx G 1
2
HDMI
Tip
Ring
Sleeves
Tip
Ring
Balanced Stereo Input
Tip
Ring
Sleeves
Tip
Ring
Balanced Stereo Output
RS-232 Device
Gnd
Rx Tx
Gnd
Tx Rx
IR Device
FOX
T HD 4K
Tx
Rx
RESET
OPTICAL
LOOP THRU
AUDIO
L
R
AUDIO
RETURN OUT
L
R
Do not tin the wires!
OVER
FIBER
1
