NEC MultiSync XG85RP-CH Setup Manual page 7

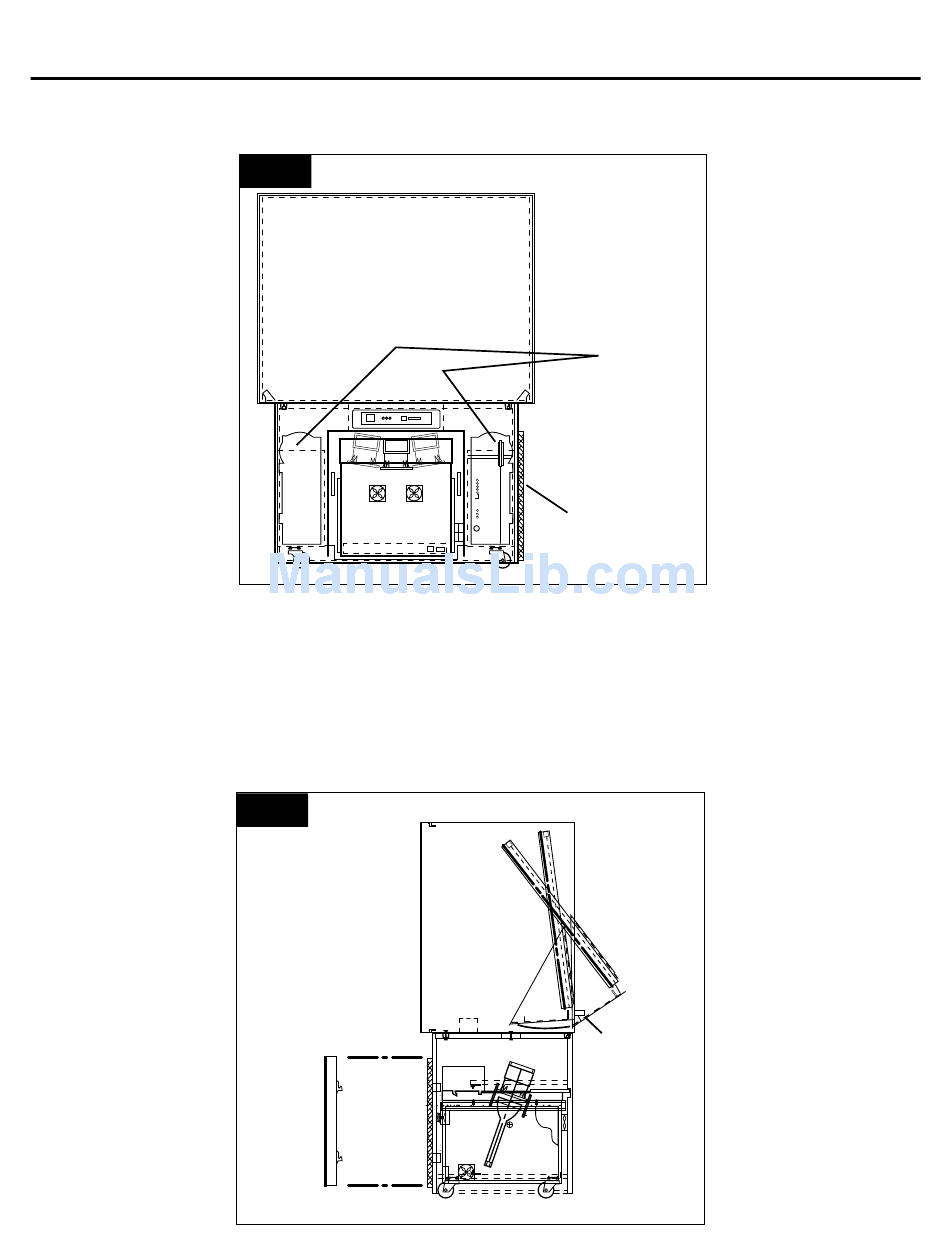

STEP 8. (Refer to Fig.8) Attach Speakers to the inside of the Hinged Side Grills with 8-32 x 3/4 pan head machine screws.
STEP 9. Plug Projector Power Cord directly into the Projector at lower rear of Projection Cabinet.
• Run system cables through cable Grommet located at the lower rear of the Projection Cabinet. Note: Computer cables can
be connected directly to the front of the projector.
STEP10. (Refer to Fig.6) Replace Front Access Cover by aligning with the Slide Grills and pushing with gentle pressure until catches
engage.
FIG.8
FIG.6
SPEAKERS
MOUNTED
TO SIDE GRILL
HINGED SIDE GRILL
(open position)
LIFT & TURN
MIRROR SHROUD
LATCH.
7
