STEP 4.

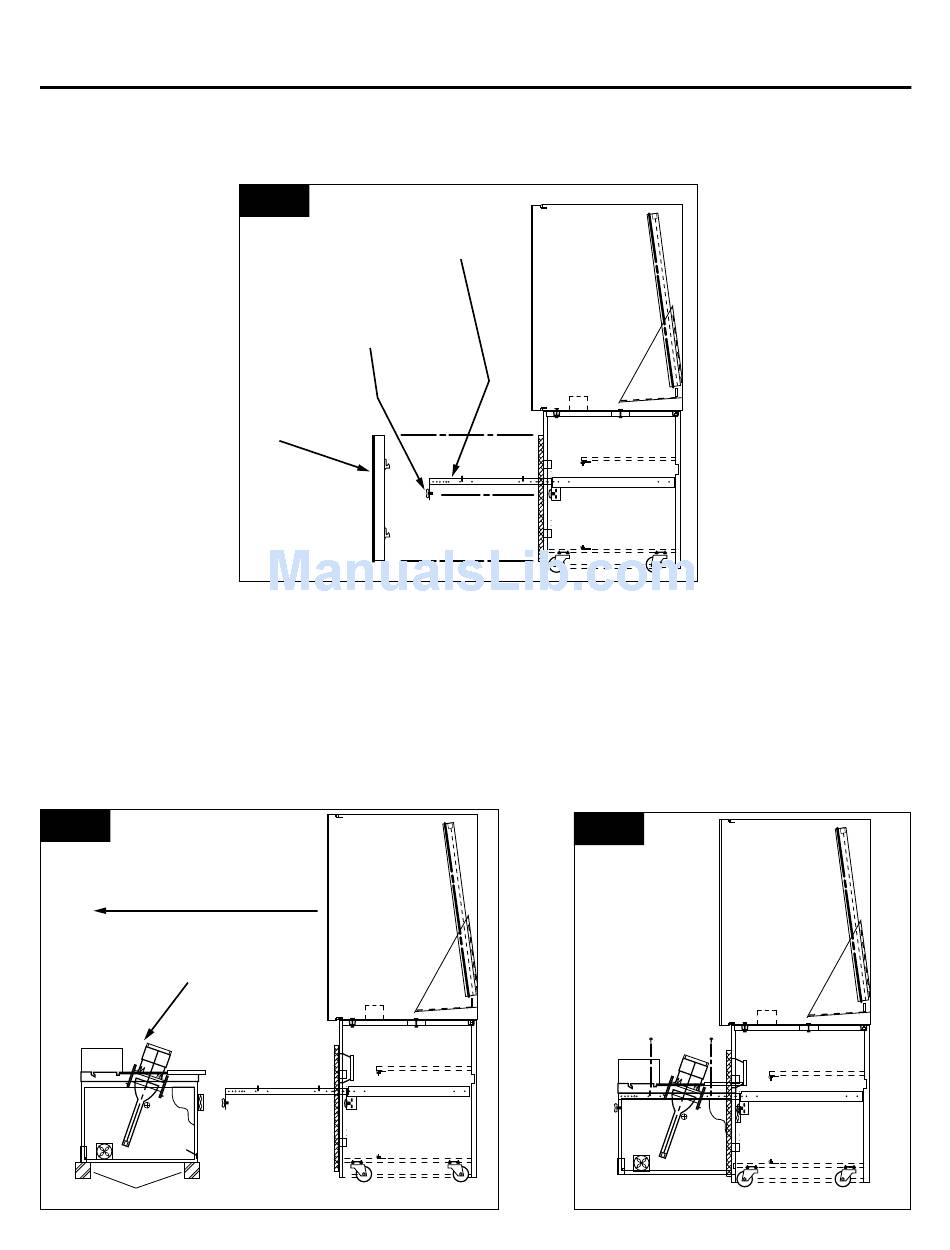

(Refer to Fig.3) Remove Front Access Cover by grasping at top and bottom and pulling with quick firm pressure.
• Loosen the two 1/4 Turn Wing Fasteners and extend the two Sliding Projector Mounts.
STEP 5.
(Refer to Fig.4) Set projector on four 3" foam packing corners or suitable blocks and roll cabinet forward until mounting holes
on projector are in line with those of the Sliding Projector Mount.
• (Refer to Fig.5) Remove blocks so that projector rests on Sliding Projector Mount. Then bolt projector to mounts with 1/
4 bolts and washers (provided).
• Slide projector into cabinet and re-fasten 1/4 Turn Wing Fasteners.
FIG.4
ROLL FORWARD
PROJECTOR
3" FOAM PACKING CORNERS
FIG.3
SLIDING PROJECTOR
MOUNT
1/4 TURN WING
FASTENER
FRONT ACCESS
COVER
FIG.5
5
