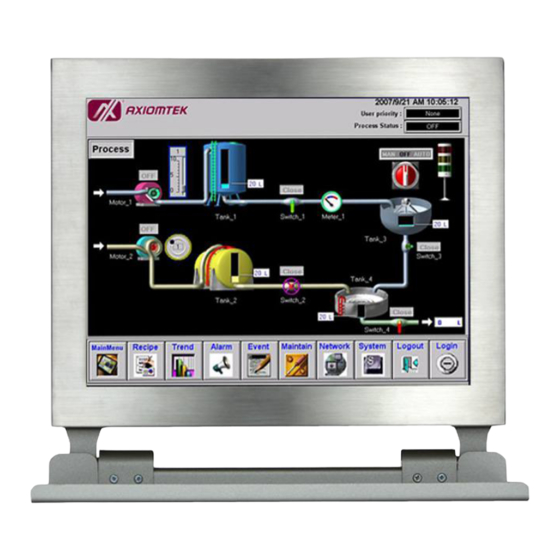

- Page 1 GOT812LR-832 12.1” XGA TFT IP66-rating Touch Panel Computer User’s Manual...
-
Page 2: Disclaimers
Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. -
Page 3: Safety Precautions
When handling boards and components, wear a wrist-grounding strap, available from most electronic component stores. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation. ® ™... -
Page 4: Table Of Contents
2.1.3 COM port Power Configuration ................9 2.1.4 Ethernet ......................10 Water-proof Cables ..............11 2.2.1 Power cable ...................... 11 2.2.2 Power adapter for GOT812LR-832 ..............12 2.2.3 COM ........................12 2.2.4 USB cables ....................... 13 Mounting Method ..............13 2.3.1 VESA mounting .................... -
Page 5: Chapter 1 Introduction
, which makes it suitable for vibration environments, example for Marine and Crane. Embedded O.S. Supported The GOT812LR-832 not only supports W indows® XP and W indows® 7, but also supports embedded OS, such as W indows® CE.NET, and W indows® 7 embedded. storage... -
Page 6: Specifications
GOT812LR-832 User’s Manual Specifications 1.2.1 Main CPU Board ® Intel Atom N2600 1.6GHz processor onboard System Chipset ® Intel NM10 Express System Memory One 204-pin DDR3 SO-DIMM socket Maximum memory up to 2GB ... -
Page 7: System Specification
5 to 500 Hz, 2.0 G for CF card 5 to 500 Hz, 2.0 G for SSD 1. All specifications and images are subject to change without notice. 2. The GOT812LR-832 is suited on serious environment; please choose the wide temperature DRAM and SSD. Note ℃... -
Page 8: Dimensions
GOT812LR-832 User’s Manual Dimensions This diagram shows you dimensions and outlines of the GOT812LR-832. Introduction... -
Page 9: I/O Outlets
GOT812LR-832 User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the GOT812LR-832. Function Backlight ON/OFF Brightness Adjust Power Switch(ATX) DC power connector COM1(configure RS422/485, default RS-232) COM2 Ethernet USB2.0 × 2 Introduction... -
Page 10: Package List
GOT812LR-832 x 1 Driver CD x1 DC cable x1 Power Adapter (optional) Water-proof cables (optional) VESA ARM(optional) If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction... -
Page 11: Chapter 2 System Configurations
GOT812LR-832 User’s Manual CHAPTER 2 System Configurations The GOT812LR-832 provides rich I/O ports and flexible expansions for you to meet different demand, for example, CF. The chapter will show you how to install the hardware. It includes: I/O Pin Assignment ... -
Page 12: Com1 Configuration
GOT812LR-832 User’s Manual 2.1.2 COM1 Configuration The COM1 is a standard DB-9 connector. This connector is equipped with The GOT812LR-832 has two serial ports. COM1 is RS-232/422/485, while COM2 is RS-232. The following table shows you set COM1 port mode: Description... -
Page 13: Com Port Power Configuration
GOT812LR-832 User’s Manual 2.1.3 COM port Power Configuration All of the serial ports can output data or power through jumper setting. The following table shows you how to do that. Description JP10~JP13 Pin1: DCD Pin9: RI (Default) Pin1: +5V Pin9: +12V... -
Page 14: Ethernet
GOT812LR-832 User’s Manual 2.1.4 Ethernet The GOT812LR-832 is equipped with a high performance Plug and Play Ethernet interface, full compliant with IEEE 802.3 standard, and can be connected with a M12 LAN connector. Please refer to detailed pin assignment list below:... -
Page 15: Water-Proof Cables
GOT812LR-832 User’s Manual Water-proof Cables GOT-800 series uses specific M12 connector for water-proof. Therefore you will order each cable base on application. There are four kind cables of GOT812, by the optional, if you will apply the USB, COM or Etherent then you can select a cable for the package . -
Page 16: Power Adapter For Got812Lr-832
GOT812LR-832 User’s Manual 2.2.2 Power adapter for GOT812LR-832 If you order the power adapter, you should choose the power cord type for your location. The power adapter is +12VDC(5A), 110-240V which is combined M12 connector. 2.2.3 COM There are two COM cables which are combined M12 connector. Also, you can refer 2.1.1 for the Series port pin assignement. -
Page 17: Usb Cables
The USB cable is combined M12 connector for water-proof. It is extended two USB ports for applicaton. Mounting Method There are two mounting ways for the GOT812LR-832. One is suspension, the other is VESA mount. 2.3.1 VESA mounting The GOT812 can accept both VESA 75 and VESA 100. -
Page 18: Vesa-Arm Mounting
GOT812LR-832 User’s Manual 2.3.2 VESA-ARM Mounting Step 1 Find out the 4 screws as marked on the back side of chassis. Step 2 Assemble the VESA-ARM to the back side of the chassis, and fix the screws. Step 3 VESA mounting Installation completed. -
Page 19: Chapter 3 Ami Bios Setup Utility
GOT812LR-832 User’s Manual CHAPTER 3 AMI BIOS SETUP UTILITY This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del> key immediately. -
Page 20: Main Menu
GOT812LR-832 User’s Manual Main Menu When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below System Date/Time Use this option to change the system time and date. -
Page 21: Advanced Menu
GOT812LR-832 User’s Manual Advanced Menu Launch Storage OpROM This item can enable or disable boot option for legacy mass storage devices with option ROM. The Advanced menu also allows users to set configuration of the CPU and other system devices. - Page 22 GOT812LR-832 User’s Manual ACPI Settings You can use this screen to select options for the ACPI Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
- Page 23 GOT812LR-832 User’s Manual CPU Configuration This screen shows the CPU Configuration, and you can change the value of the selected option. Hyper-Threading Use this item to enable or disable Hyper-Threading Technology, which makes a single physical processor perform multi-tasking function as two logical ones.
- Page 24 GOT812LR-832 User’s Manual IDE Configuration SATA Controller(s) The optional settings are: [Disabled]; [Enabled]. Configure SATA as The optional settings are: [IDE]; [AHCI]. AMI BIOS Setup Utility...
- Page 25 GOT812LR-832 User’s Manual USB Configuration You can use this screen to select options for the USB Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
- Page 26 GOT812LR-832 User’s Manual NCT6627UD Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the...
- Page 27 GOT812LR-832 User’s Manual PC Health Status This screen shows the Hardware Health Configuration, and a description of the selected item appears on the right side of the screen. AMI BIOS Setup Utility...
-
Page 28: Chipset Menu
GOT812LR-832 User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► Host Bridge Host Bridge For items marked with “”, please press <Enter> for more options. - Page 29 GOT812LR-832 User’s Manual Memory Information This item is for memory frequency and timing settings. Press <Enter> to go to the sub menu. AMI BIOS Setup Utility...
-
Page 30: Boot Menu
GOT812LR-832 User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. Boot Settings Configuration Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. Bootup NumLock State Use this item to select the power-on state for the NumLock.. -
Page 31: Security Menu
GOT812LR-832 User’s Manual Boot Option Priorities These are settings for boot priority. Specify the boot device priority sequence from the available devices. Security Menu The Security menu allows users to change the security settings for the system. Administrator Password This item indicates whether an administrator password has been set. If the password has been installed, Installed displays. -
Page 32: Save & Exit Menu
GOT812LR-832 User’s Manual Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values. Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect. - Page 33 GOT812LR-832 User’s Manual Save Changes When you have completed the system configuration changes, select this option to save changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select yes to save changes. Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration.
- Page 34 GOT812LR-832 User’s Manual This page is intentionally left blank. AMI BIOS Setup Utility...
-
Page 35: Chapter 4 Drivers Installation
GOT812LR-832 User’s Manual CHAPTER 4 DRIVERS INSTALLATION System GOT812LR-832 supports Windows 7 and WES 7. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. Insert Driver CD and select the “\Drivers”. Step 1 Step 2 Select all files and follow the installing procedure. -
Page 36: Touch Screen
GOT812LR-832 User’s Manual Touch Screen The GOT812 uses the 5-wire analog resistive. There are the specification and driver installation which are listed below. Specification Touch Screen 5-wire Analog Resistive type Touch Screen Controller PenMount 6000 USB Touch Screen Controller IC... - Page 37 GOT812LR-832 User’s Manual Select the “Standard Calibrate” tab. Step 4 Drivers Installation...
-
Page 38: Embedded O.s
Note For the better system performance, please close the Windows AERO or change to Windows Basic mode. Embedded O.S. The GOT812LR-832 provides the Windows 7 Embedded. The O.S. is supported devices which are listed below. WES 7 Here are supported onboard devices: Onboard Multi I/O ... - Page 39 GOT812LR-832 User’s Manual PenMount Touch screen Before you can use and calibrate it, here is what you should do: Set up Penmount touch device driver by executing C:\Penmount\ Windows 2000-XP V5.0\setup.exe. When the installation is finished, an icon “PM” appears on the Taskbar.
- Page 40 GOT812LR-832 User’s Manual This page is intentionally left blank. Drivers Installation...
