AXIOMTEK GOT3157W-832-PCT User Manual

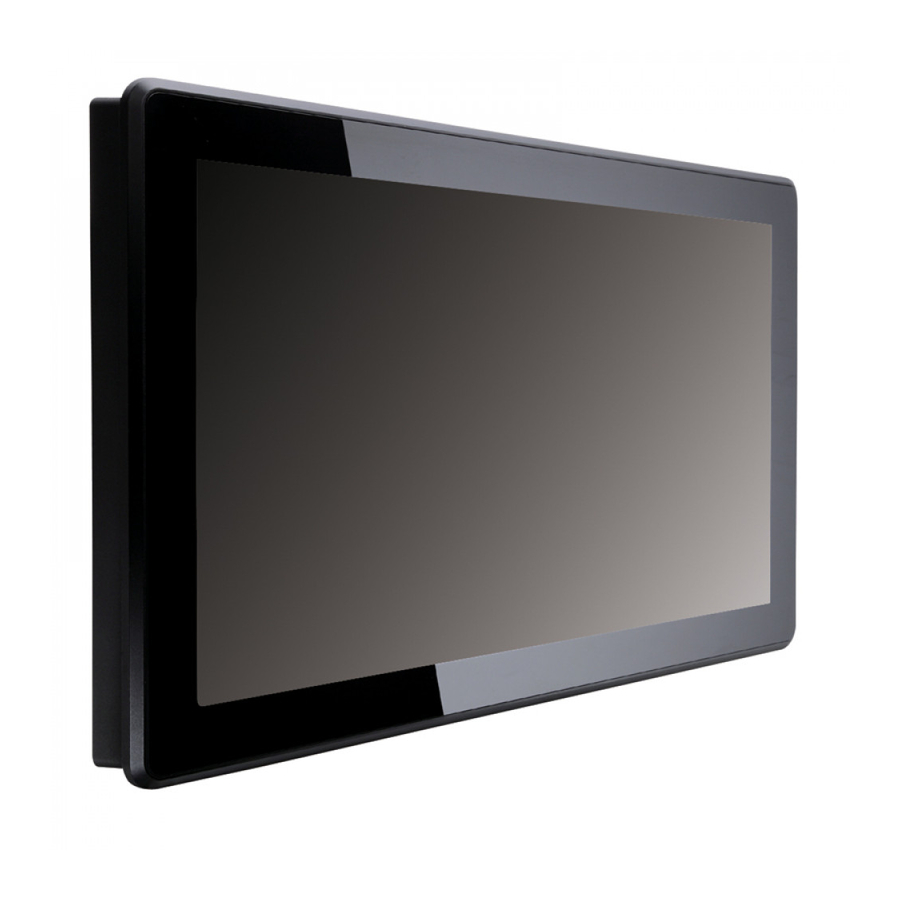

All-in-one 15.6” wxga tft fanless compact-size panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GOT3157W-832-PCT
All-in-One
15.6" WXGA TFT Fanless
Compact-Size
PANEL PC
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOT3157W-832-PCT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK GOT3157W-832-PCT

Summary of Contents for AXIOMTEK GOT3157W-832-PCT

  • Page 1 GOT3157W-832-PCT All-in-One 15.6” WXGA TFT Fanless Compact-Size PANEL PC User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Most electronic components are sensitive to static electrical charge. Disconnect the power cords from the GOT3157W-832-PCT Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the GOT3157W-832-PCT Series is properly grounded.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Chapter 1 Introduction ..........1 General Description ................1 Specifications ..................2 Dimensions and Outlines ..............4 I/O Outlets .................... 5 Packing List ..................6 Chapter 2 Hardware and Installation ...... 7 CF card Installation ................
  • Page 5 Chapter 4 Drivers Installation ........ 37 System ....................37 Touch Screen ..................37 Embedded O.S................... 38...
  • Page 6 This page is intentionally left blank.

  • Page 7: Chapter 1 Introduction

    Dimensions  I/O Outlets  Package List General Description The GOT3157W-832-PCT adopts a 15.6-inch WXGA TFT LCD with 300-nit brightness and an ® Intel Atom processor D2550 1.86 GHz to provide excellent computing performance and thermal resistance. This fanless platform is especially designed for operating under heavy-duty environment including steel refinery, oil pipe, ship, machine maker operating systems and many more.

  • Page 8: Specifications

    GOT3157W-832-PCT User’s Manual WLAN Antenna Supported (optional) GOT3157W-832-PCT has a PCI Express Mini Card slot for optional add-ons such as wireless LAN card for 802.11 b/g connections & 3G/GPRS application, and more. It also provides an optional fixed rotational WLAN antenna for wireless network connection.
  • Page 9 GOT3157W-832-PCT User’s Manual System Specification  15.6” WXVGA(1366x768) LCD with LED backlight  PCT touch  Fanless Heat Dispensing Design  IP65 aluminum front bezel  Disk drive housing  One 2.5” SATA Drive  Net Weight  5.0 Kgs (11.02 lb) ...

  • Page 10: Dimensions And Outlines

    GOT3157W-832-PCT User’s Manual Dimensions and Outlines The following diagrams show the dimensions and outlines of GOT3157W-832-PCT Introduction...

  • Page 11: I/O Outlets

    GOT3157W-832-PCT User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the GOT3157W-832-PCT. Function POWER SWITCH (ATX) Terminal Block for DC Power Input 2xUSB 2.0 COM 1(RS-232/422/485) COM 2(RS-232) 2xETHERNET 2xUSB2.0 Audio(Line-Out) Introduction...

  • Page 12: Packing List

    GOT3157W-832-PCT unit x 1  Driver CD x1  Phoenix connector x 1  Panel mount kit x 9  Screws for HDD x 4 If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction...

  • Page 13: Hardware And Installation

    GOT3157W-832-PCT User’s Manual Chapter 2 Hardware and Installation The GOT3157W-832-PCT provides rich I/O ports and flexible expansions for you to meet different demand, for example CF card. The chapter will show you how to install the hardware. It includes: ™...

  • Page 14: Cf Card Installation

    GOT3157W-832-PCT User’s Manual CF card Installation ™ The GOT3157W-832-PCT provides one CF slot for users to install CompactFlash card. Please refer to the following instructions for installation: Step 1 Open the cover, unscrew 2 screws on the chassis. Step 2 Stick the mylar on the CF card bottom side.

  • Page 15: Open

    GOT3157W-832-PCT User’s Manual Step 3 Insert the CF card to the CF card slot, then finding the CF cover from the system package and screw it. Open back cover This section tells users how to open back cover. Please follow the steps below.
  • Page 16 GOT3157W-832-PCT User’s Manual Step 2 Remove the back cover. Hardware and Installation...

  • Page 17: Serial Ports Interface

    GOT3157W-832-PCT User’s Manual Serial Ports Interface The GOT3157W-832-PCT has four serial ports. COM1 is RS-232/422/485 and COM2 is RS-232. The following table shows you the pin assignments of this connector: Jumper Description Jumper Setting RS-232 (Default) COM 1 RS-422 RS-485 2.3.1...

  • Page 18: Ethernet

    No use No use Ethernet The GOT3157W-832-PCT is equipped with a high performance Plug and Play Ethernet interface, full compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector. Please refer to detailed pin assignment list below:...

  • Page 19: Mountings: Panel / Wall / Desktop / Vesa

    There are 4 application options for the GOT3157W-832-PCT, Panel/Wall/Desktop/VESA mountings. 2.5.1 VESA-ARM/Wall-Mount The GOT3157W-832-PCT provides VESA mount: 100x100 mm. Screw four screws to fix the kit in the back chassis. 2.5.2 Panel-mount Kit Assembly The GOT3157W-832-PCT is designed for panel mount application. To mount the GOT3157W-832-PCT, the standard set of mounting kit (included in the system packaging) is needed.

  • Page 20: Hdd Installation

    GOT3157W-832-PCT User’s Manual HDD Installation The GOT3157W-832-PCT provides a convenient Hard Disk Drive (HDD) bracket for users to install 2.5” SATA HDD. Please follow the steps: Step 1 Refer section 2.2 to open the back cover. Step 2 Fix the HDD on the HDD tray by 4 screws.
  • Page 21 GOT3157W-832-PCT User’s Manual Step 3 Plug the cables to connectors and screw the HDD tray on the bracket. Installation completes. Hardware and Installation...

  • Page 22: Dram Installation

    GOT3157W-832-PCT User’s Manual DRAM Installation The GOT3157W-832-PCT provides one 204-pin DDR3 SODIMM socket that supports system memory up to 4GB. Please follow steps below to install the memory modules: Step 1 Refer to section 2.2 to open the back cover.
  • Page 23 GOT3157W-832-PCT User’s Manual Step 4 Insert the DRAM to the DIMM socket, and then push it down firmly until it is clipped by the socket. Installation completed Hardware and Installation...

  • Page 24: Wireless Lan Card Installation

    GOT3157W-832-PCT User’s Manual Wireless LAN Card Installation The GOT3157W-832-PCT provides one Mini card slot for user to install one wireless LAN card. When installing the wireless LAN card, refer to the following instructions and illustration: Step 1 Refer to section 2.2 to open the back cover and find out mini-card slot on mainboard.
  • Page 25 GOT3157W-832-PCT User’s Manual Step 3 Find the Antenna cable and connect it on wireless LAN card. Step 4 Lift the rubber stopper from the top of back cover and screw the antenna cable. …. Hardware and Installation...

  • Page 26: Power

    Install the antenna on the antenna connector. NOTE: Please have the extented bracket when using half-size mini card. Power GOT3157W-832-PCT equips with a phoenix type power connector. It adopts 10VDC to 30VDC. Please follow the signs on power connector to connect DC power source. －:Power negative...

  • Page 27: Ami Bios Setup Utility

    GOT3157W-832-PCT User’s Manual Chapter 3 AMI BIOS Setup Utility This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del> key immediately.

  • Page 28: Main Menu

    GOT3157W-832-PCT User’s Manual Main Menu When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below ...

  • Page 29: Advanced Menu

    GOT3157W-832-PCT User’s Manual Advanced Menu  Launch Storage OpROM This item can enable or disable boot option for legacy mass storage devices with option ROM. The Advanced menu also allows users to set configuration of the CPU and other system devices.
  • Page 30 GOT3157W-832-PCT User’s Manual  ACPI Settings You can use this screen to select options for the ACPI Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 31 GOT3157W-832-PCT User’s Manual  CPU Configuration This screen shows the CPU Configuration, and you can change the value of the selected option. Hyper-Threading Use this item to enable or disable Hyper-Threading Technology, which makes a single physical processor perform multi-tasking function as two logical ones.
  • Page 32 GOT3157W-832-PCT User’s Manual  IDE Configuration SATA Controller(s) The optional settings are: [Disabled]; [Enabled]. Configure SATA as The optional settings are: [IDE]; [AHCI]. AMI BIOS Setup Utility...
  • Page 33 GOT3157W-832-PCT User’s Manual  USB Configuration You can use this screen to select options for the USB Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 34 GOT3157W-832-PCT User’s Manual  NCT6627UD Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the...
  • Page 35 GOT3157W-832-PCT User’s Manual  PC Health Status This screen shows the Hardware Health Configuration, and a description of the selected item appears on the right side of the screen. AMI BIOS Setup Utility...

  • Page 36: Chipset Menu

    GOT3157W-832-PCT User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► Host Bridge Host Bridge For items marked with “”, please press <Enter> for more options.
  • Page 37 GOT3157W-832-PCT User’s Manual  Memory Information This item is for memory frequency and timing settings. Press <Enter> to go to the sub menu. AMI BIOS Setup Utility...

  • Page 38: Boot Menu

    GOT3157W-832-PCT User’s Manual Boot Menu The Boot menu allows users to change boot options of the system.  Boot Settings Configuration Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. Bootup NumLock State Use this item to select the power-on state for the NumLock..

  • Page 39: Security Menu

    GOT3157W-832-PCT User’s Manual Security Menu The Security menu allows users to change the security settings for the system. Administrator Password This item indicates whether an administrator password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

  • Page 40: Save & Exit Menu

    GOT3157W-832-PCT User’s Manual Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values. Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect.
  • Page 41 GOT3157W-832-PCT User’s Manual Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration. Select Discard Changes from the Save & Exit menu and press <Enter>. Select Yes to discard changes. Restore Defaults It automatically sets all Setup options to a complete set of default settings when you select this option.
  • Page 42 GOT3157W-832-PCT User’s Manual This page is intentionally left blank. AMI BIOS Setup Utility...

  • Page 43: Drivers Installation

    GOT3157W-832-PCT User’s Manual Chapter 4 Drivers Installation System GOT3157W-832-PCT supports Windows 7 32-bit. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. Insert Driver CD and select the “\Drivers”. Step 1 Step 2 Select all files and follow the installing procedure.

  • Page 44: Embedded O.s

    GOT3157W-832-PCT User’s Manual Embedded O.S. The GOT3157W-832-PCT provides the WES 7E. NOTE: Causing of OS limitation, only single toucn function is supported under WES 7E. Drivers Installation...
