Installation Environment Requirements

• Power Reserve: The S9610-36D power supply is available with:
1. DC Version: 1+1 Redundant and hot swappable -40 to -72V DC power supply field
replaceable unit or;
2. AC Version: 1+1 Redundant and hot swappable 200 to 240V AC power supply field
replaceable unit.
To ensure the redundant feed power design functions properly, a field with dual power
circuit is recommend with a reserve of at least 3000 watts on each power circuit.
• Space Clearance: The S9610-36D width is 17.16 inches (43.6cm) and shipped with a rack
mount brackets suitable for 19 inch (48.3cm) wide racks. The depth of the S9610-36D chassis
is 30 inches (76.2cm) without the field replaceable units (FRUs) and comes with adjustable
check mounting rails suitable for rack depths of 22 inches (55.9cm) to 33 inches (83.8cm). The
handle for the fan units will extend outwards by 1.15 inch (2.9cm) and the handle for the
power supplies will extend outwards by 1.19 inches (3cm). Therefore, to accommodate the
fan and power supply handles, a minimum space clearance of 6 inches (15.2cm) is needed at
the back of the S9610-36D. A total minimum reserve depth of 36 inches (91.4cm) is required.
• Cooling: The S9610-36D airflow direction is front-to-back. Make sure the equipment on
the same rack have the same airflow direction.

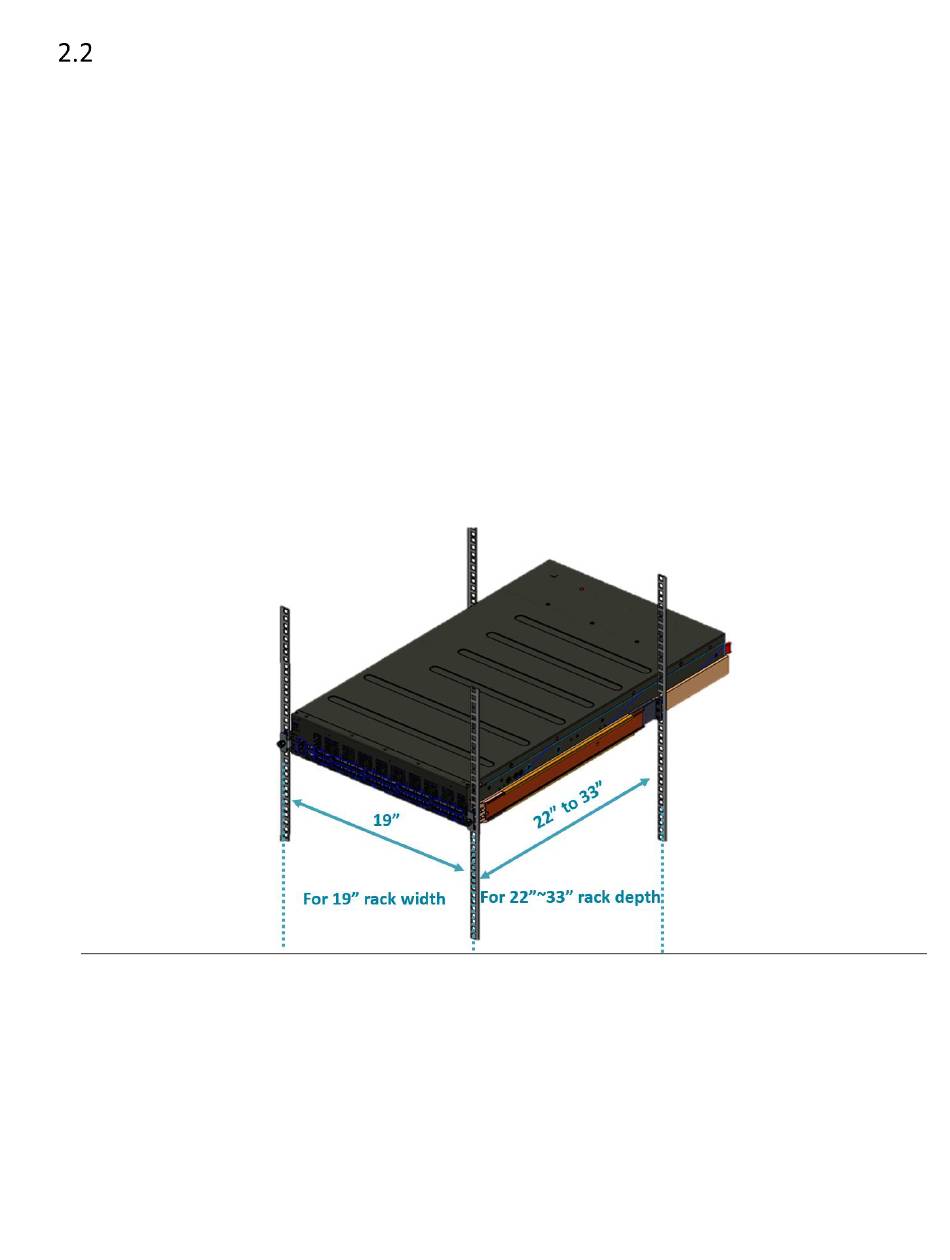

Figure 1.
