2.5

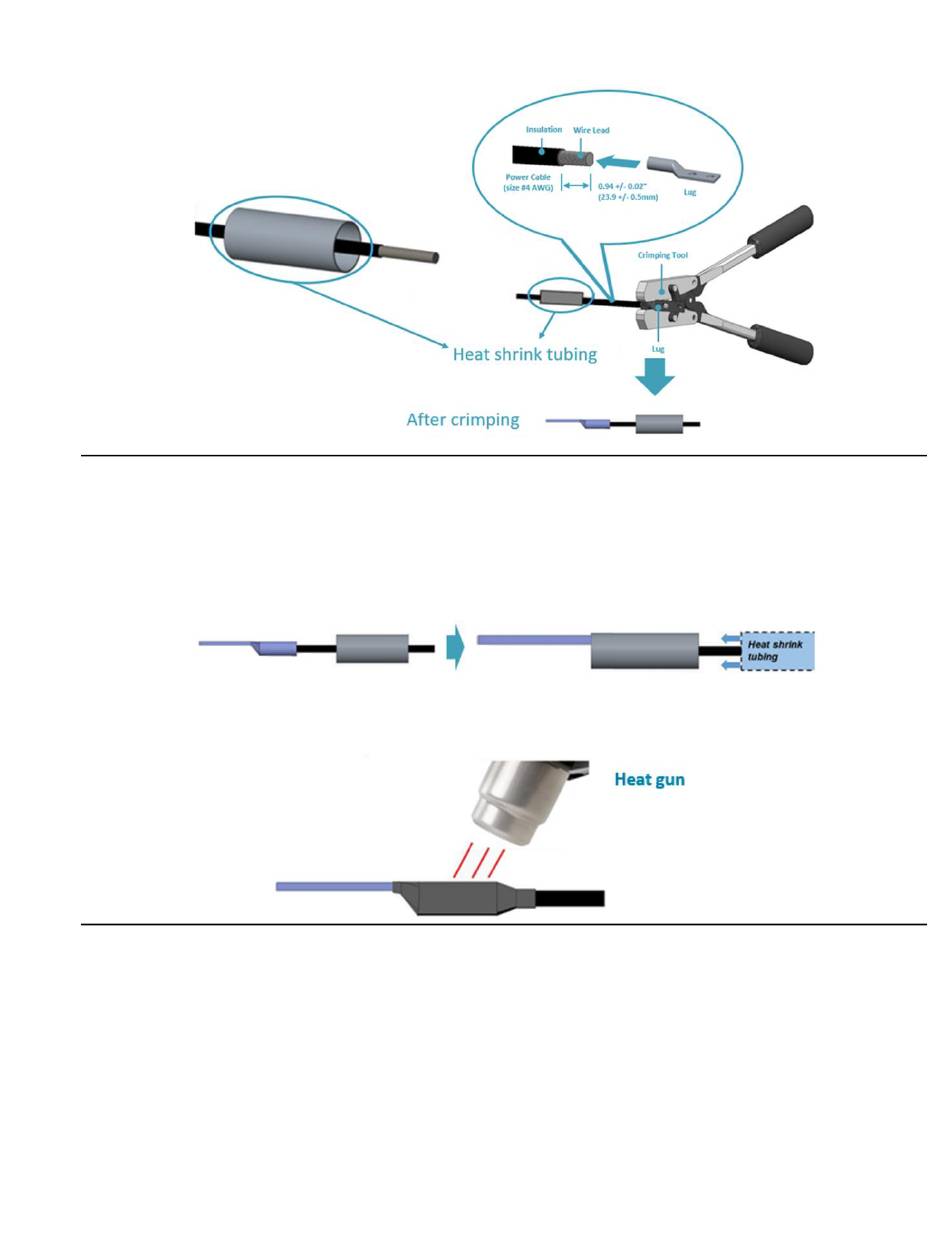

Move the heat shrink tubing to cover any exposed metal on the DC power cable and lug.
2.6
Use a heat source to secure the heat shrink tubing in place. Allow the heat shrink tubing
to cool before attaching the DC power cable. An example of the installed DC version with
insulation material as below.
3. Attach the power cable.
Locate the DC power screw-type terminal block located on the PSU. Remove the plastic cover
that is protecting the terminal block by removing the single screw locking it in place. Secure the
two-hole lugs (with the DC power cable attached) to the terminal block.
Figure 24.
Figure 25.
S9610-36D Hardware Installation Guide | 19
