Installing Power Supply Units

The power supply unit (PSU) is a hot swappable field replaceable unit (FRU) and can be replaced
while the router is operating as long as the remaining (second) PSU is installed and in operation.
The AC and DC PSU follow the same steps for installation. The PSU comes pre-installed and the
following are instructions on how to install a new PSU.
DC:
1. Locate the red release tab on the PSU. Then press and hold down the release tab to unlock the
PSU.
2. While holding down the red release tab, grip the PSU's handle and firmly pull it out of the
power bay.
DC Version:
3. Align the new PSU with the power bay, ensuring the PSU's power connector is in the correct
position.
4. Carefully slide the new PSU into the power bay and gently push until it is flush with the case.
5. An audible click will be heard when the PSU is installed correctly. The PSU will not go in all the
Safety Notices
Caution! Shock hazard!
TO DISCONNECT POWER, REMOVE ALL POWER CORDS FROM UNIT.
AC:

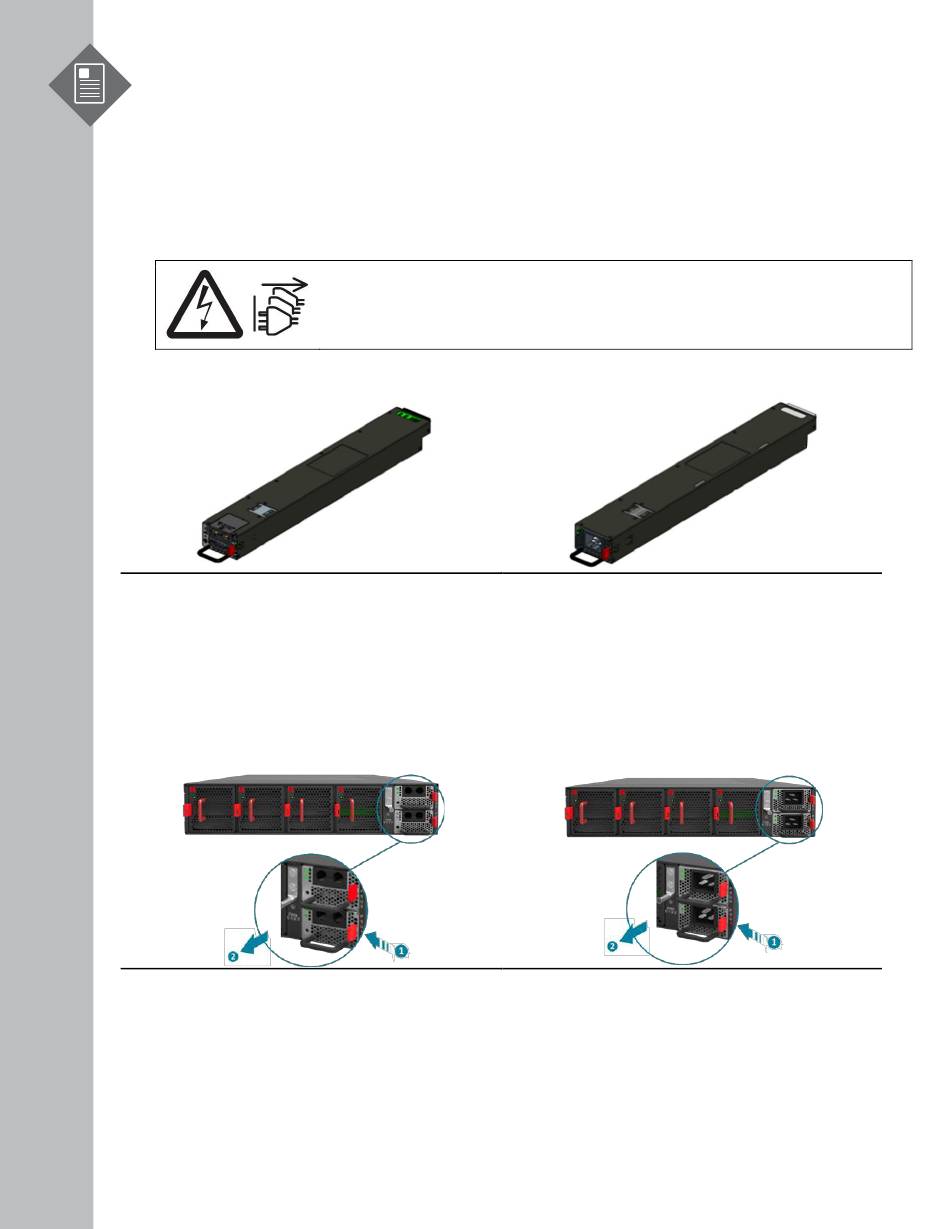

Figure 17.
AC Version:
Figure 18.
